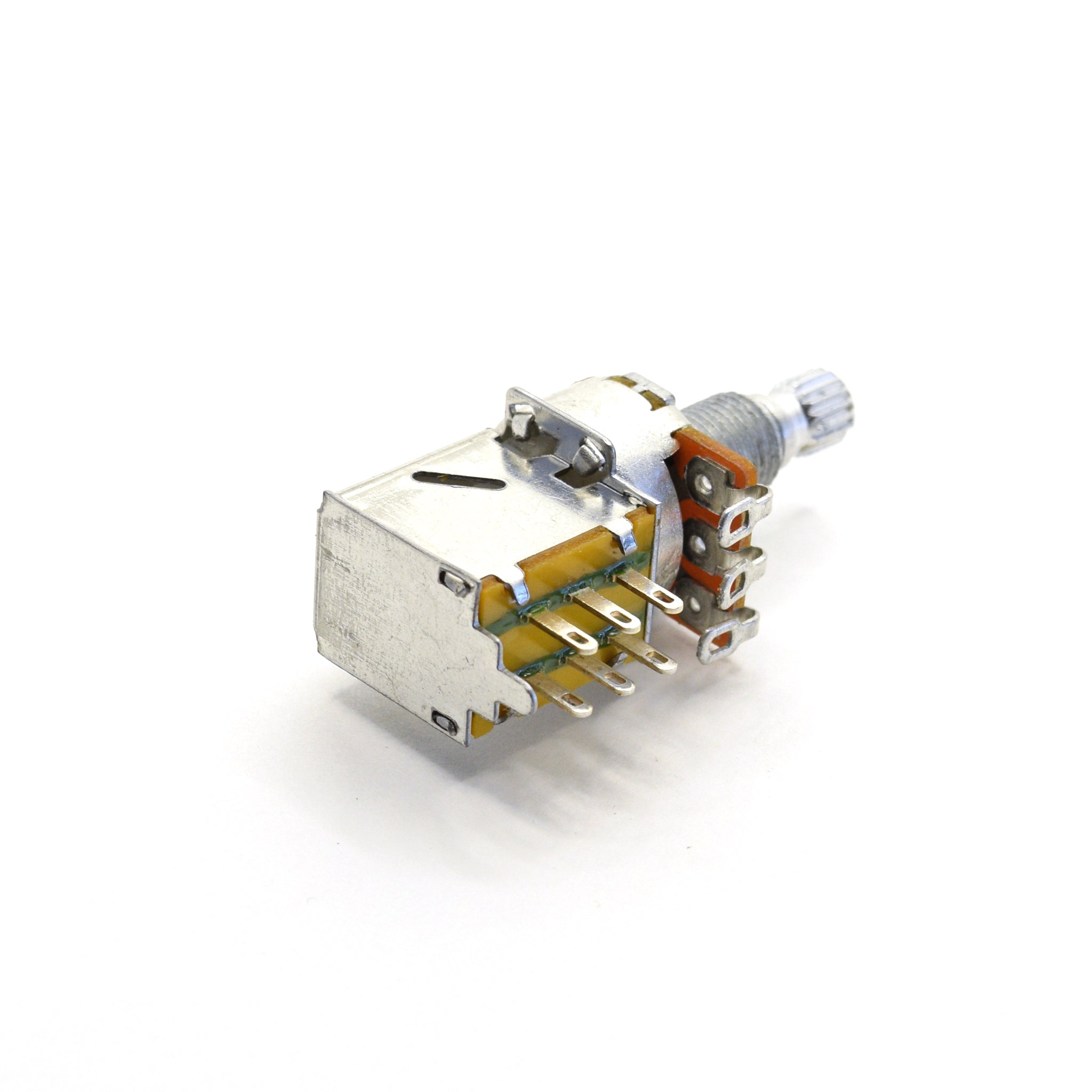

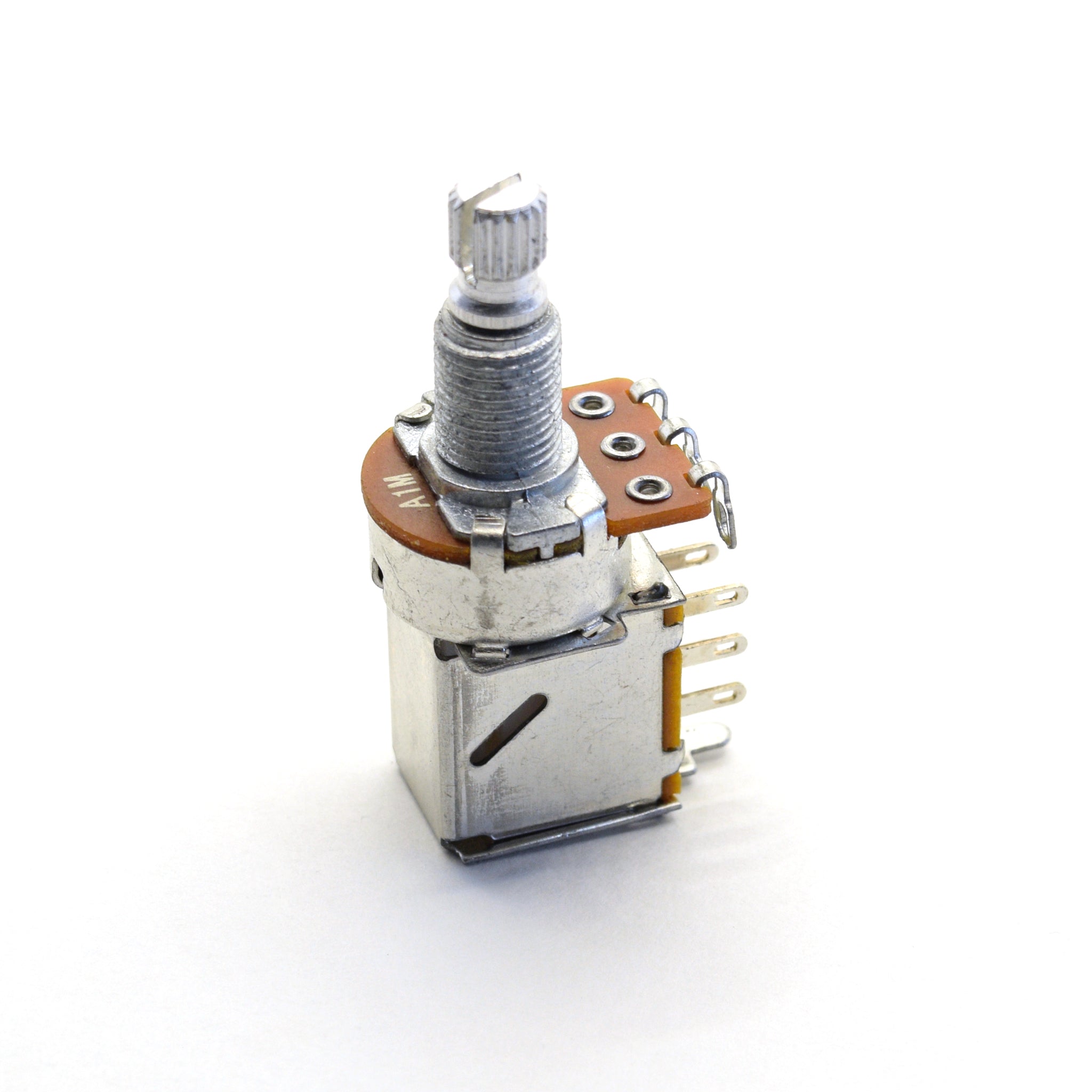

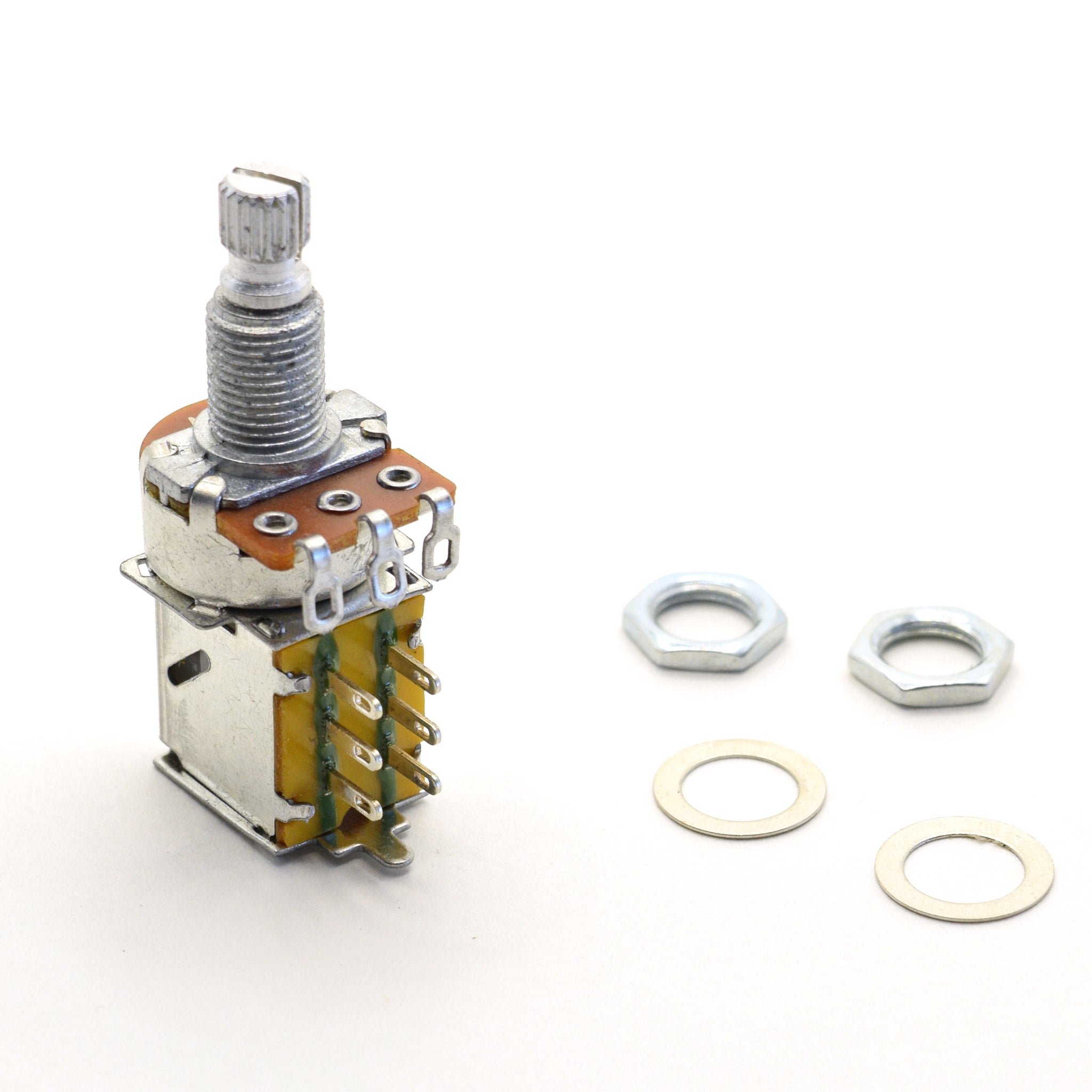

Alpha Potentiometer 1 Meg "A" Audio Push/Pull Pot

• 6mm diameter split shaft radial control
• Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
• Pot barrel housing is 16.4mm diameter
• Pot barrel housing to bottom of pot is 25.2mm
• Overall length is 45.3mm (tall)

Smooth control with NO center detent.

This is an “A” audio (logarithmic) taper pot.

Perfect for series/parallel, phase and coil tap functions.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
