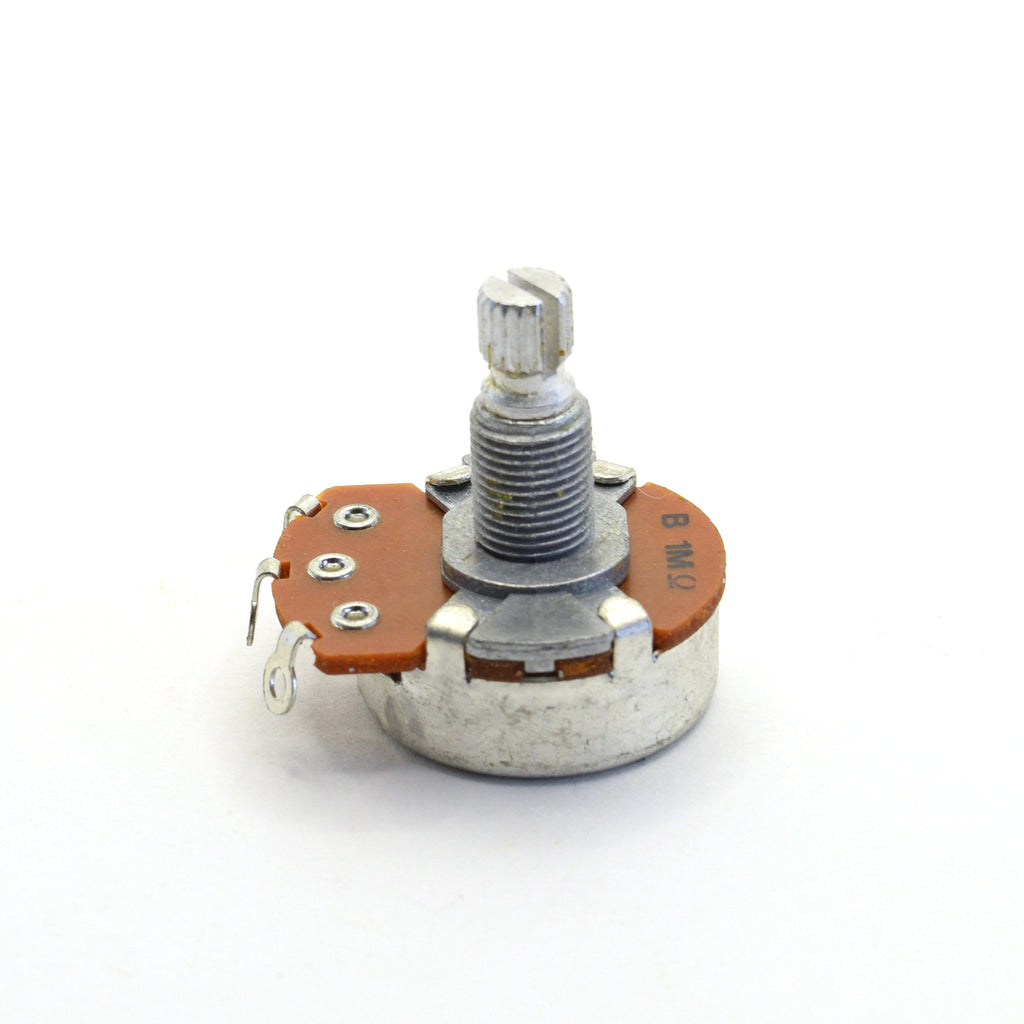

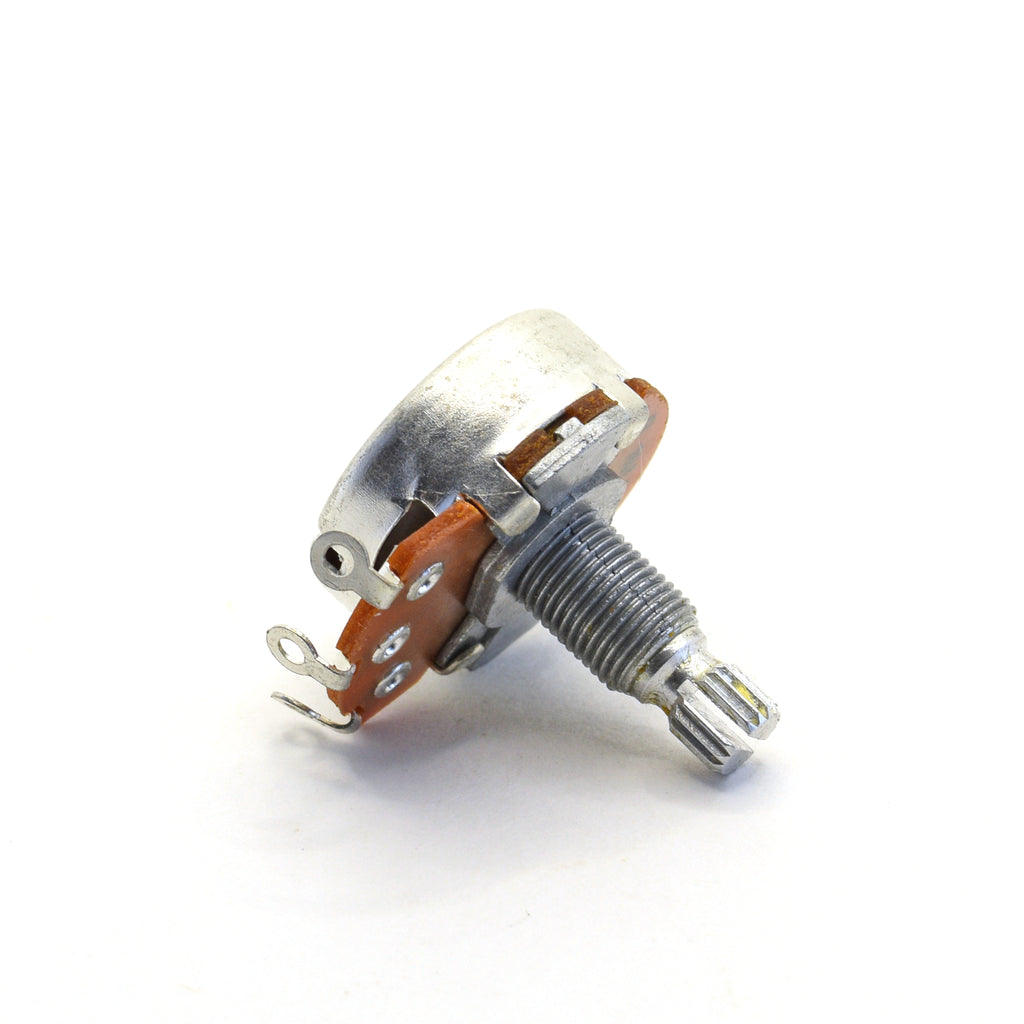

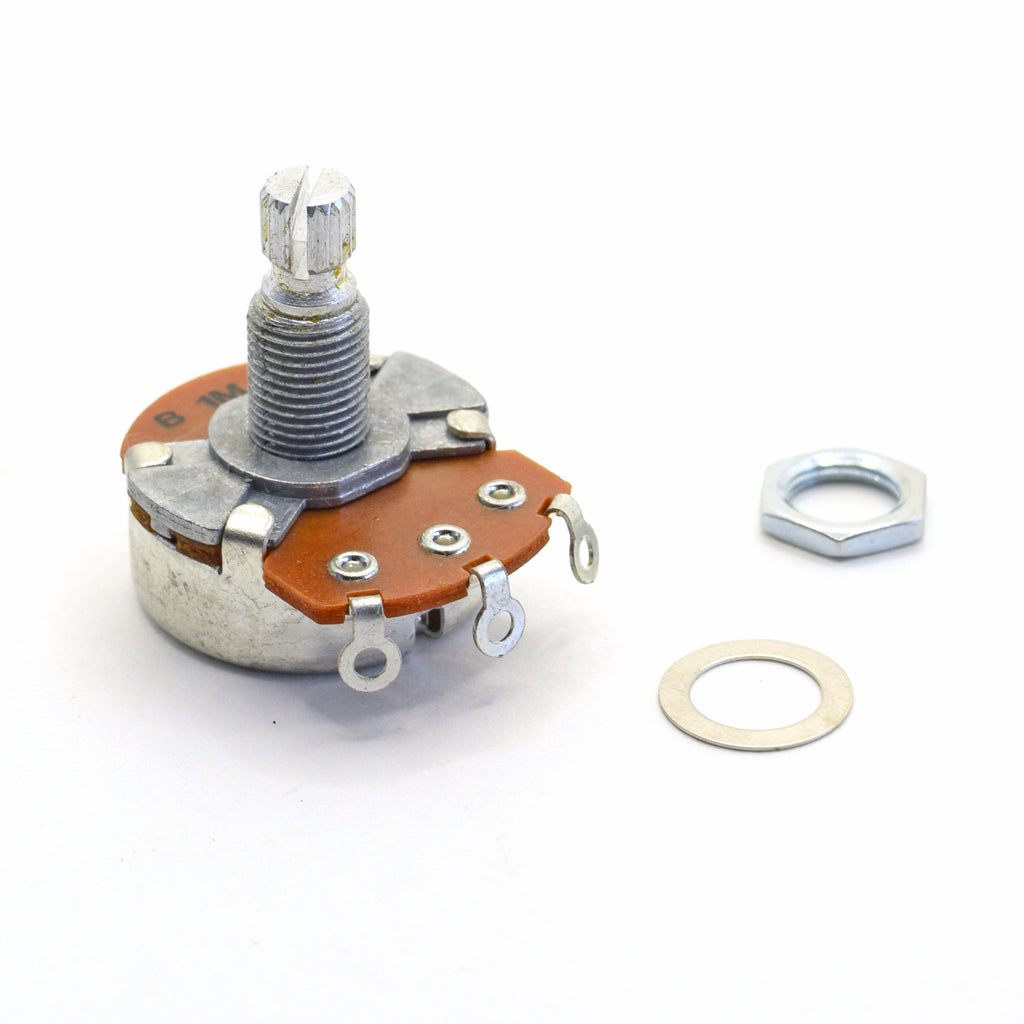

Alpha Potentiometer 1 Meg B Linear Taper Pot
- 6mm diameter split shaft radial control coarse spline
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
- Pot barrel housing is 24mm diameter
- Overall length is 29.3mm (tall)
Smooth control with NO center detent.
This is a “B” linear taper pot.
Use this pot to run your guitar wide open! a 1 Meg pot eliminates almost all attenuation and will brighten up a muddy sounding pickup. Got a muddy vintage pickup? Try one of these. Might save you some serious $$
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
