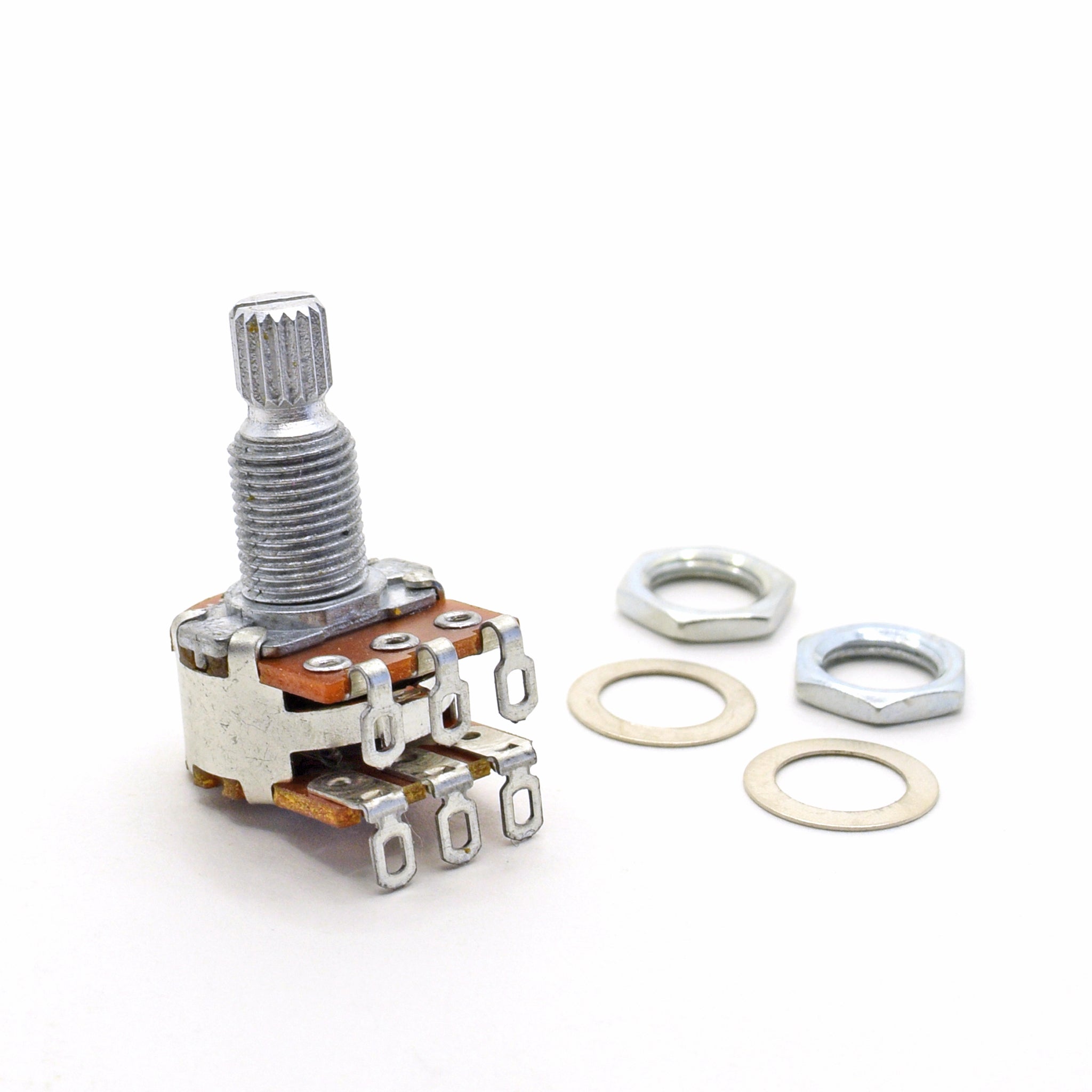

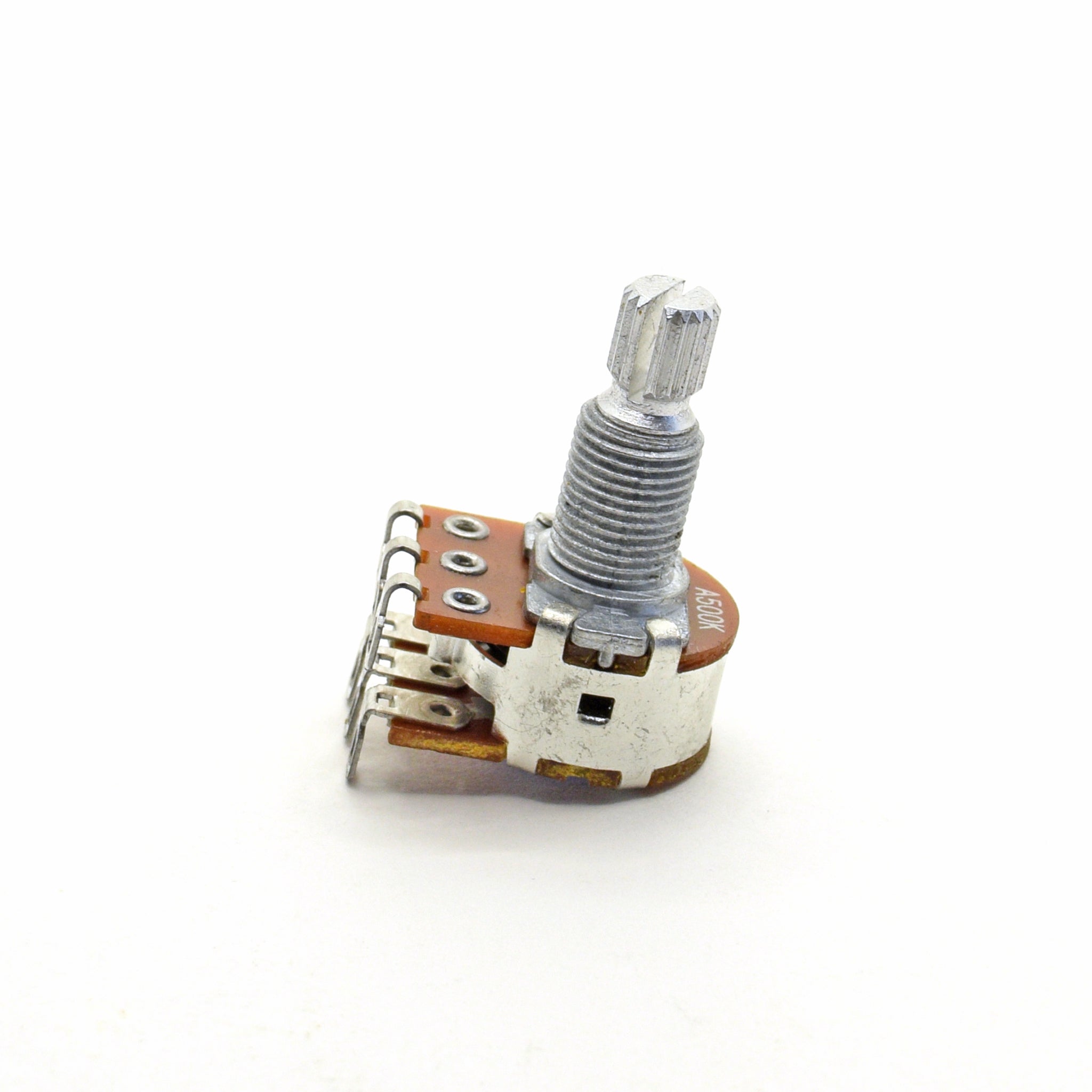

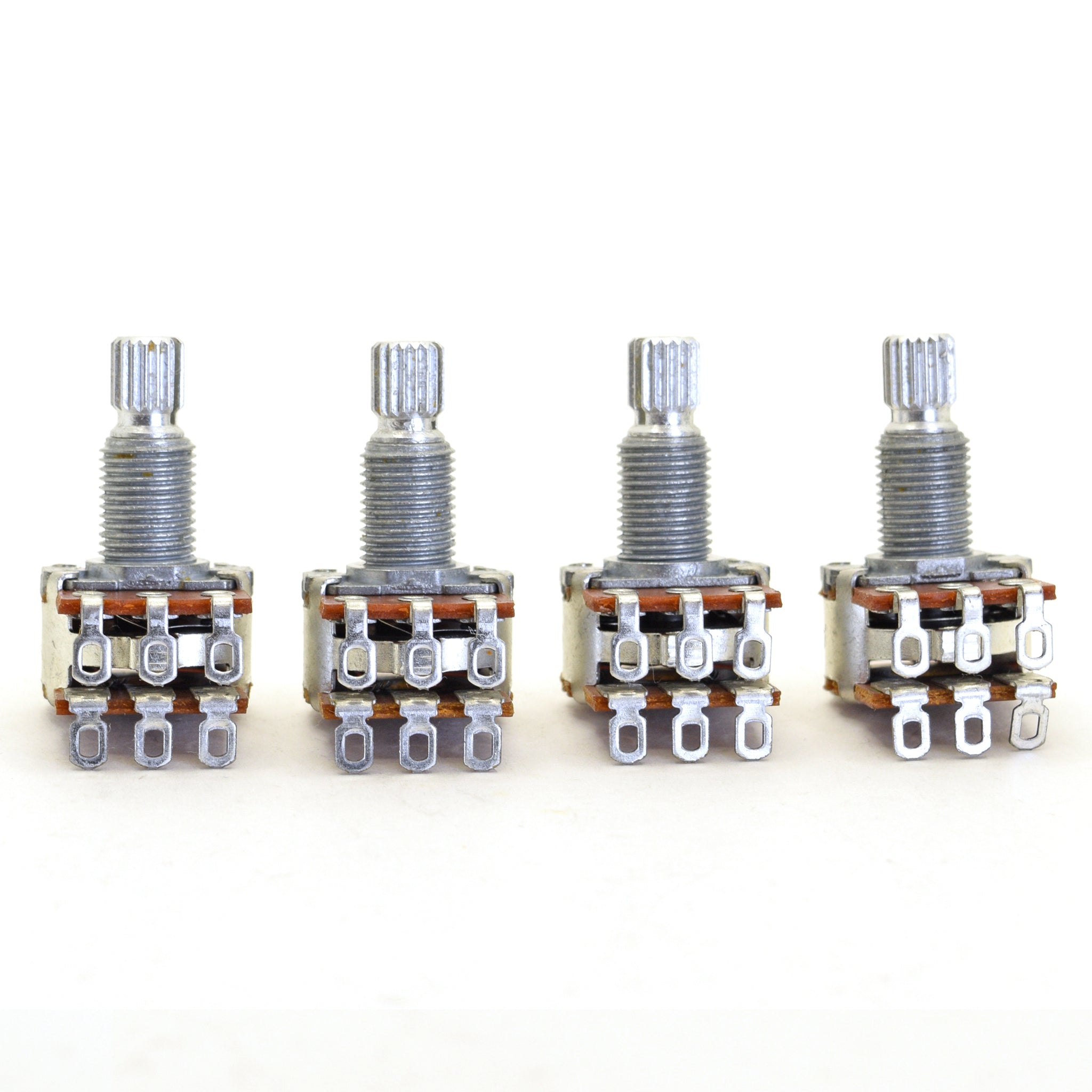

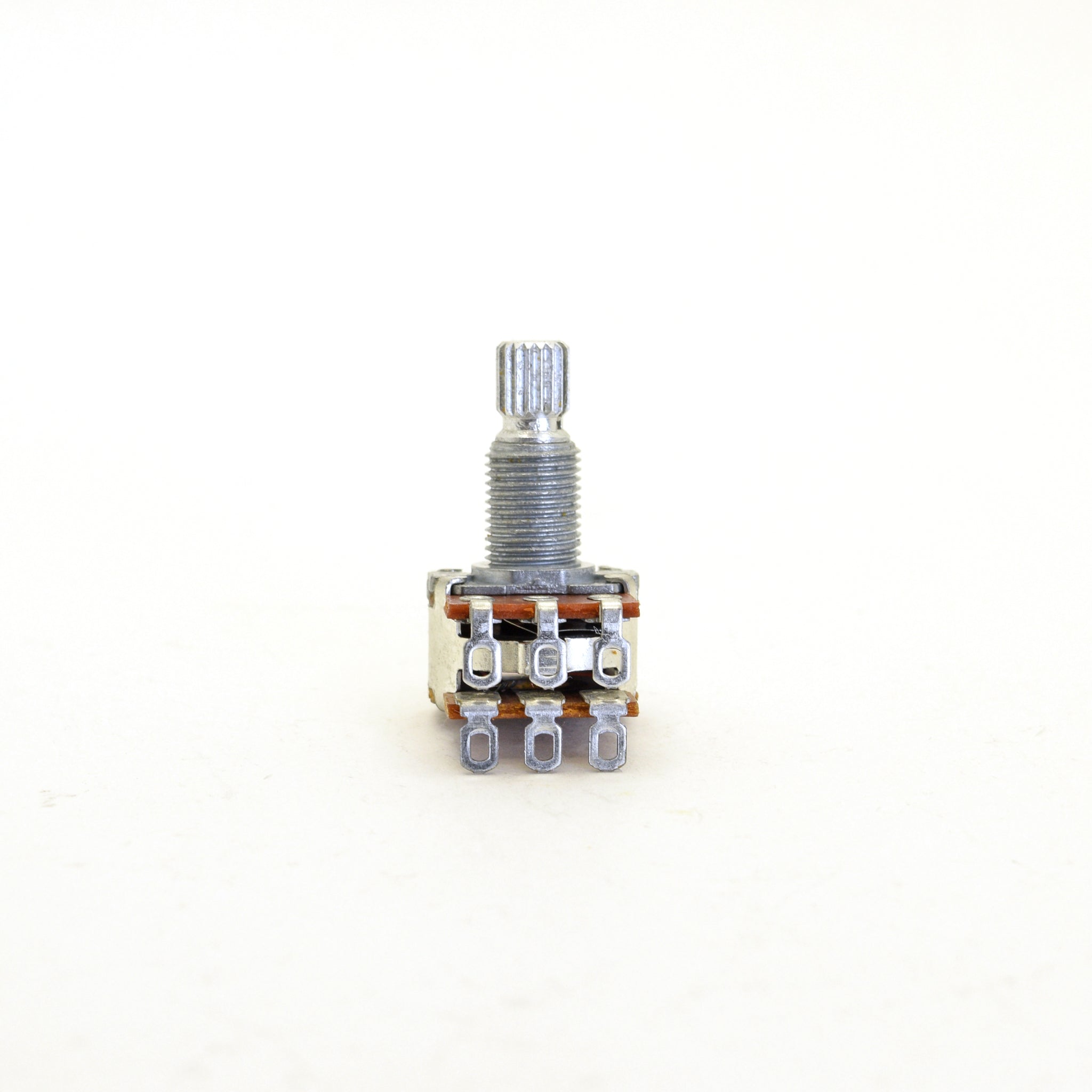

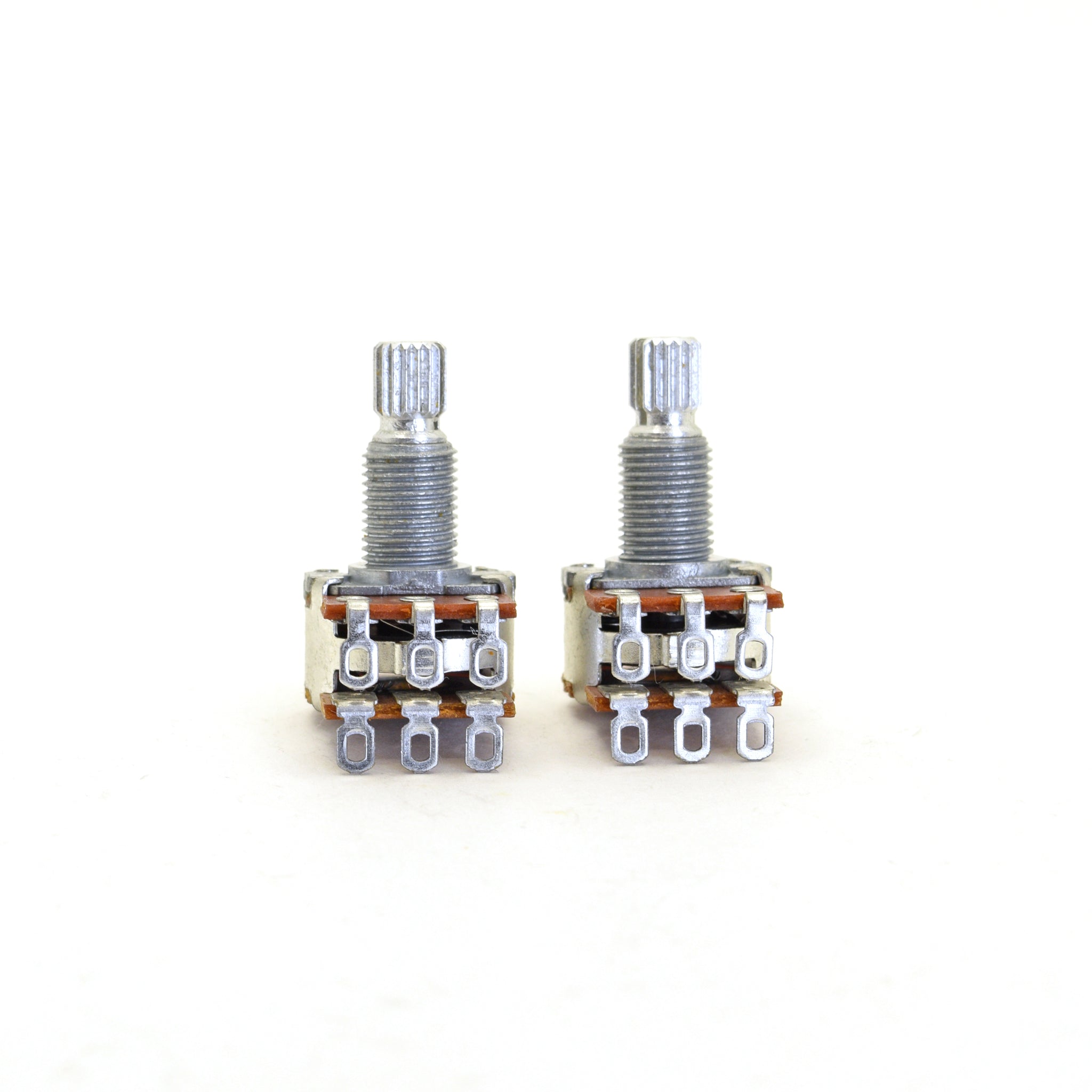

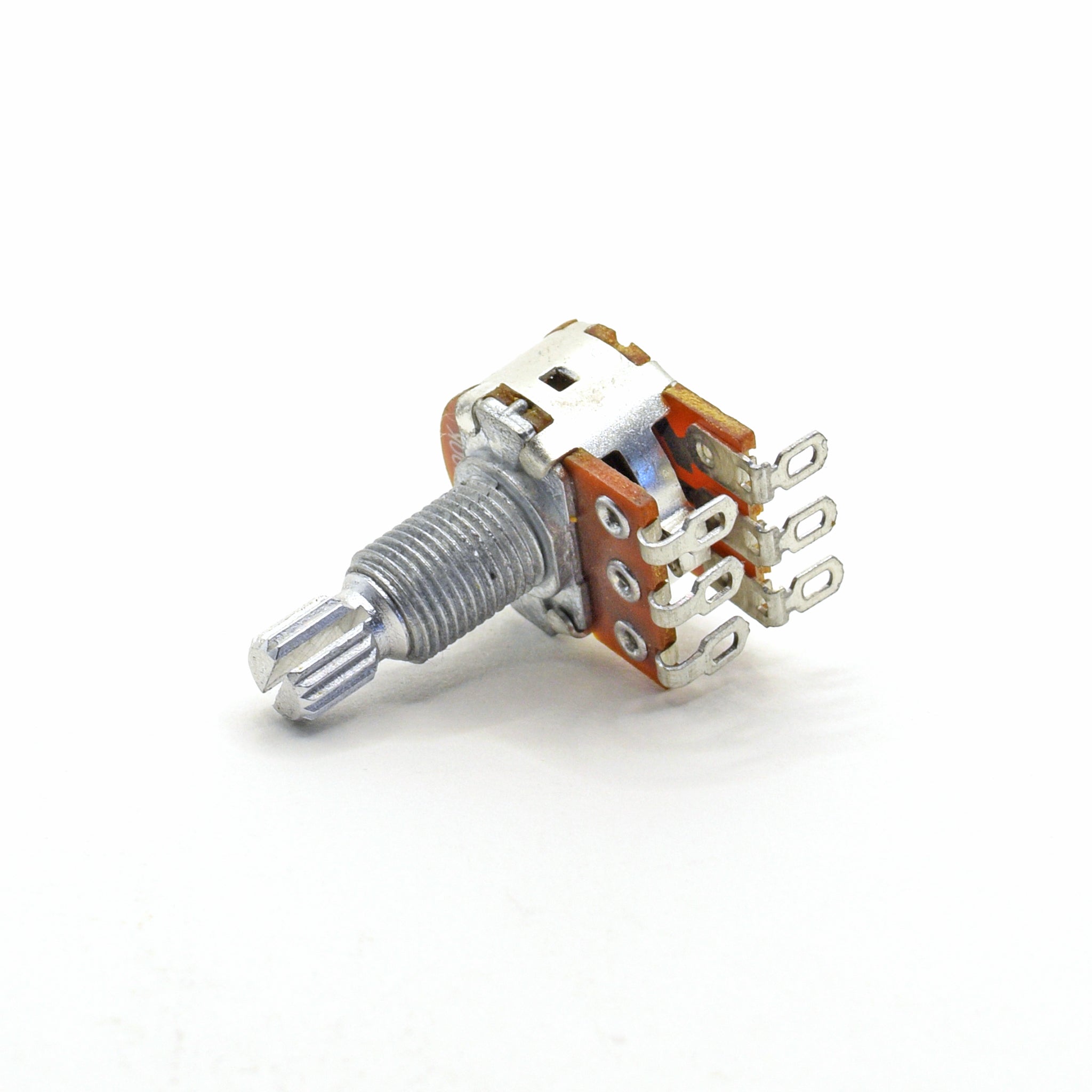

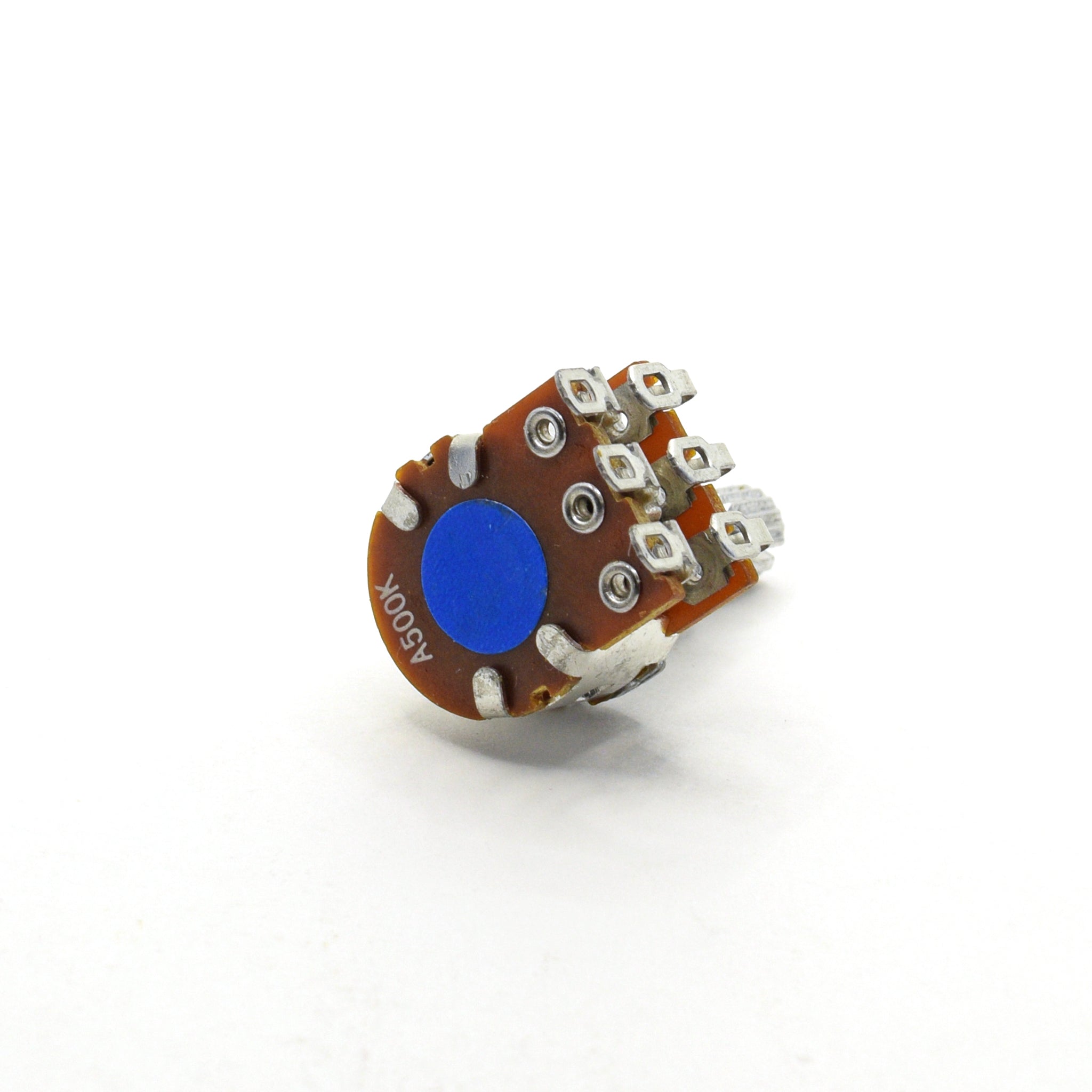

Alpha Potentiometer A500K Audio Taper Blend Pot
$7.50
/
Shipping calculated at checkout.
A500K Blend Potentiometer
- 6mm diameter split shaft radial control 18 spline
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 10mm long (tall)
- Pot barrel housing is 16.5mm diameter
- Overall length is 29mm (tall)
- Center detent
- AC Taper
This blend pot DOES have a center detent.
This is an “A” audio (logarithmic) taper pot.
Use these dual-gang pots to control the signal mix from 2 pickups, panning from one to the other. Usually, 500K is used for humbuckers. 250K will attenuate high frequencies.
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
