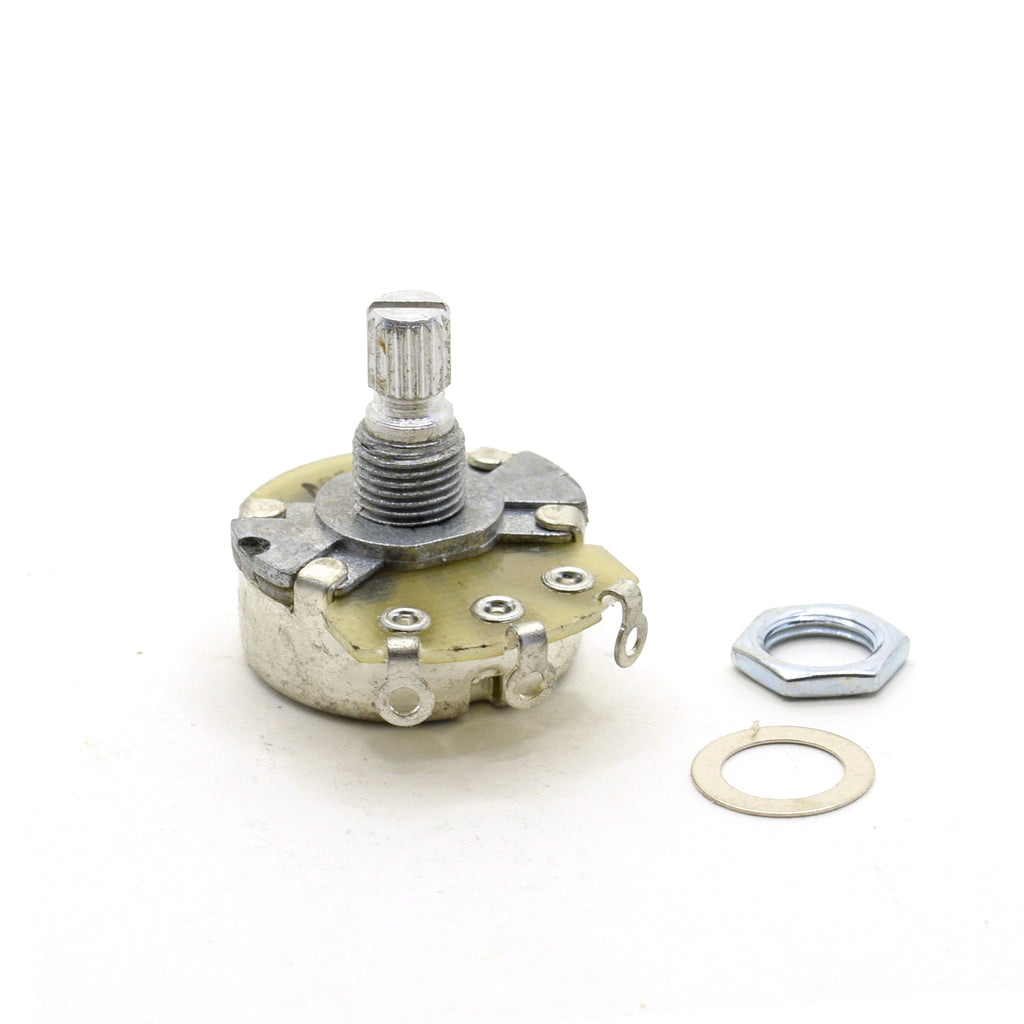

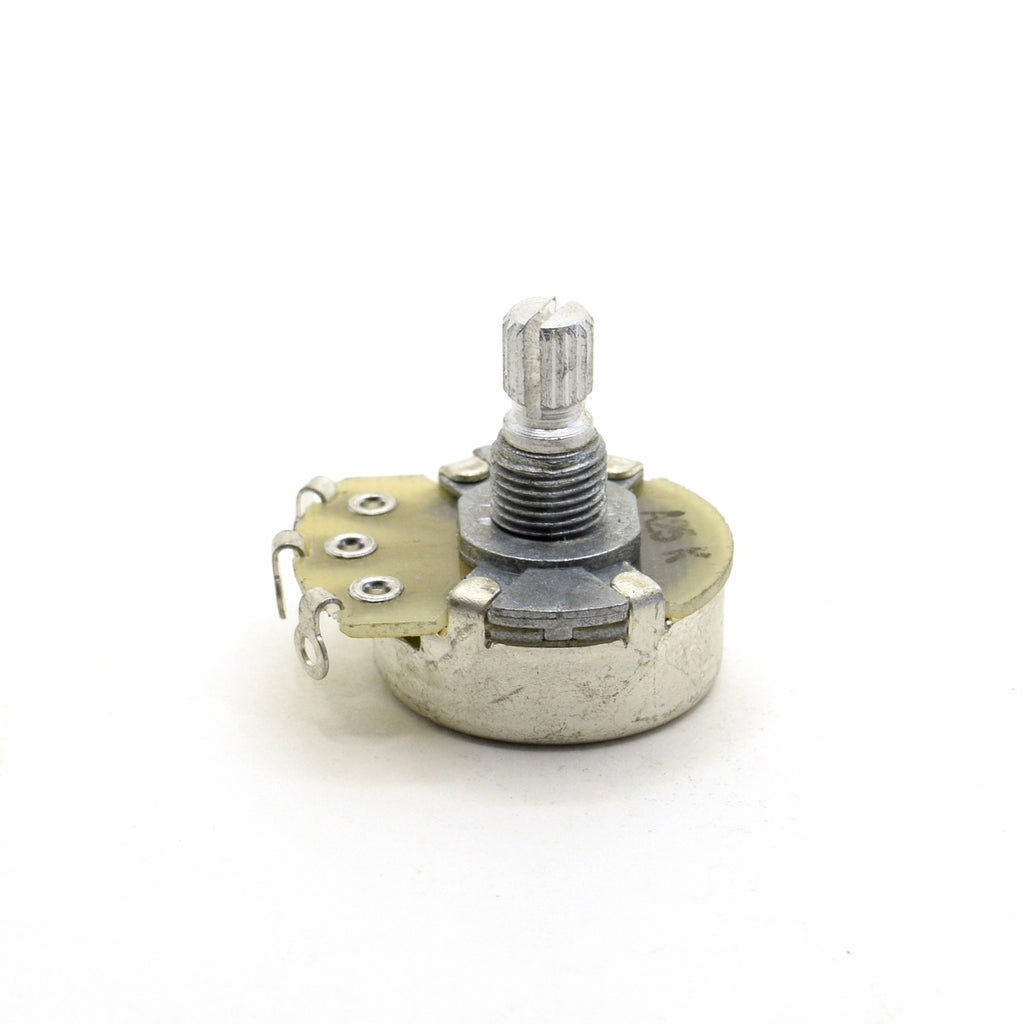

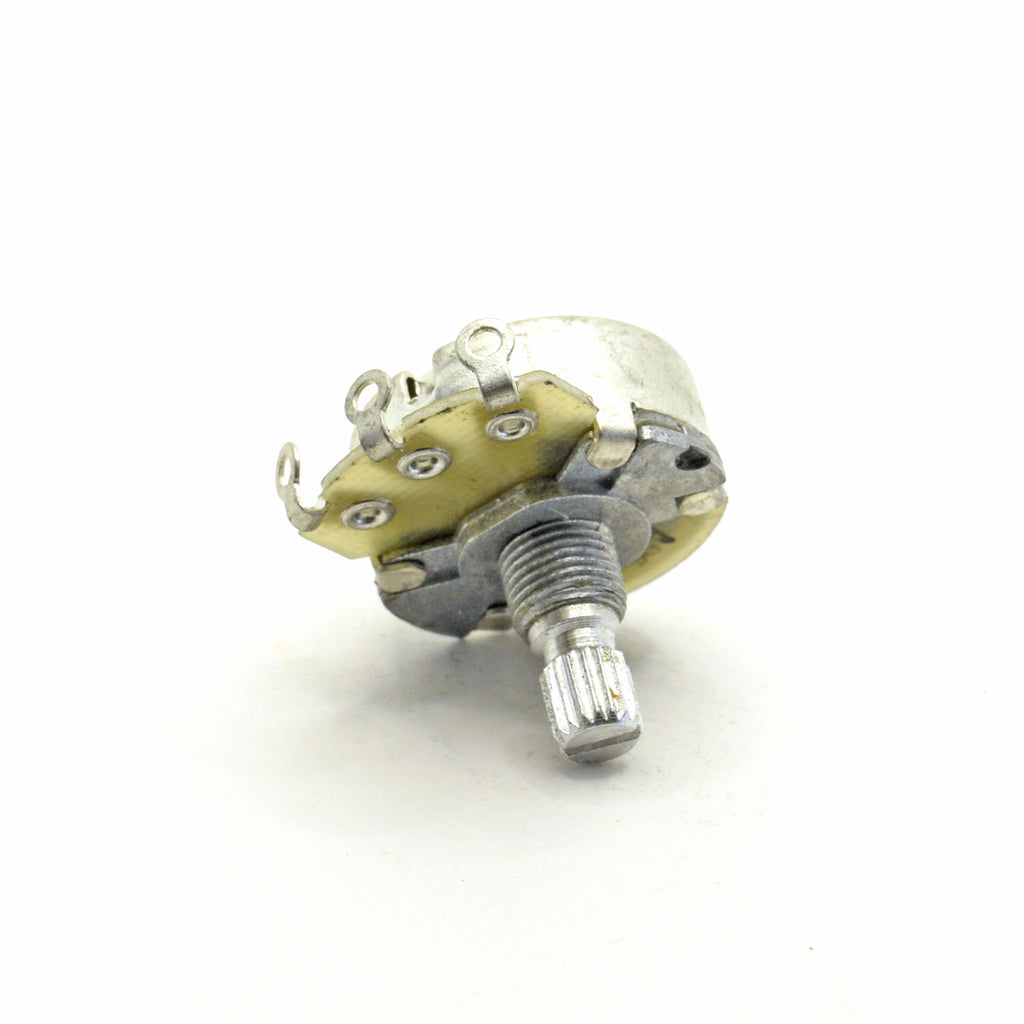

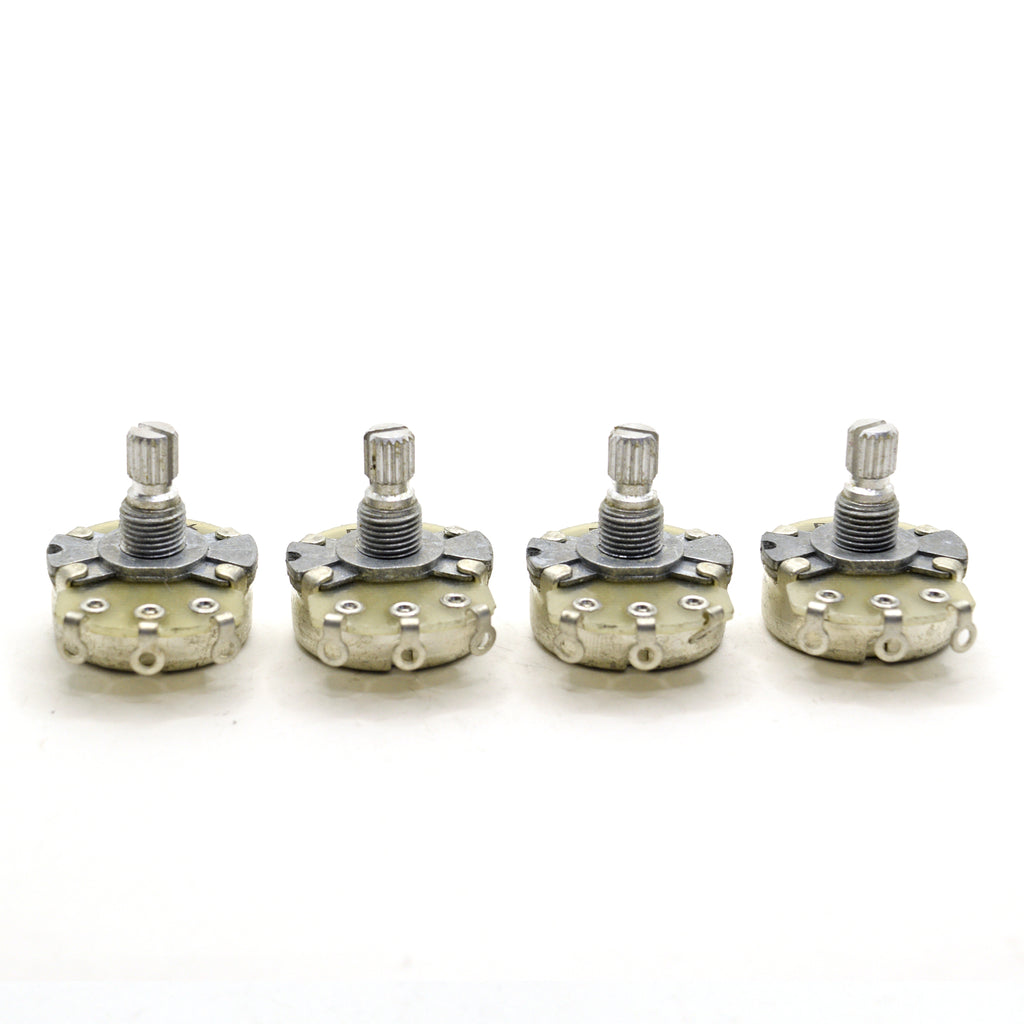

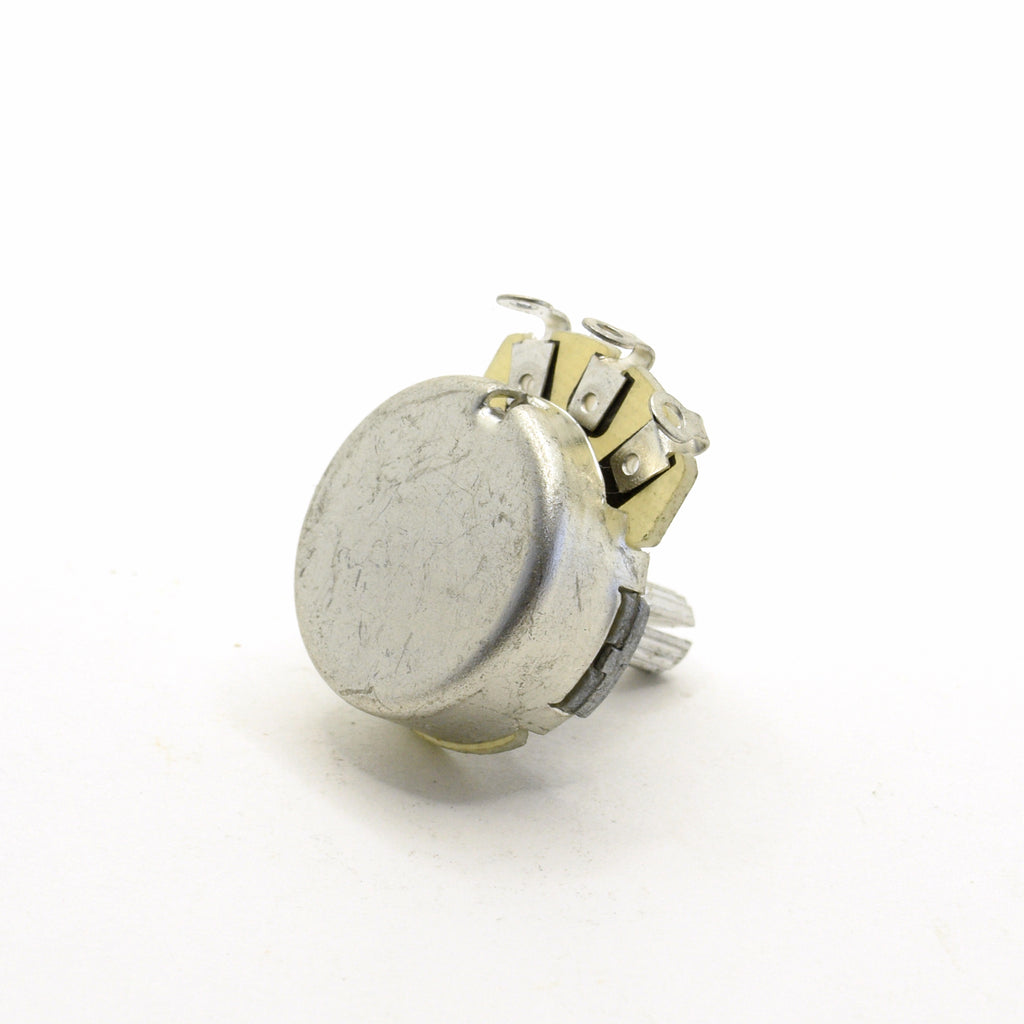

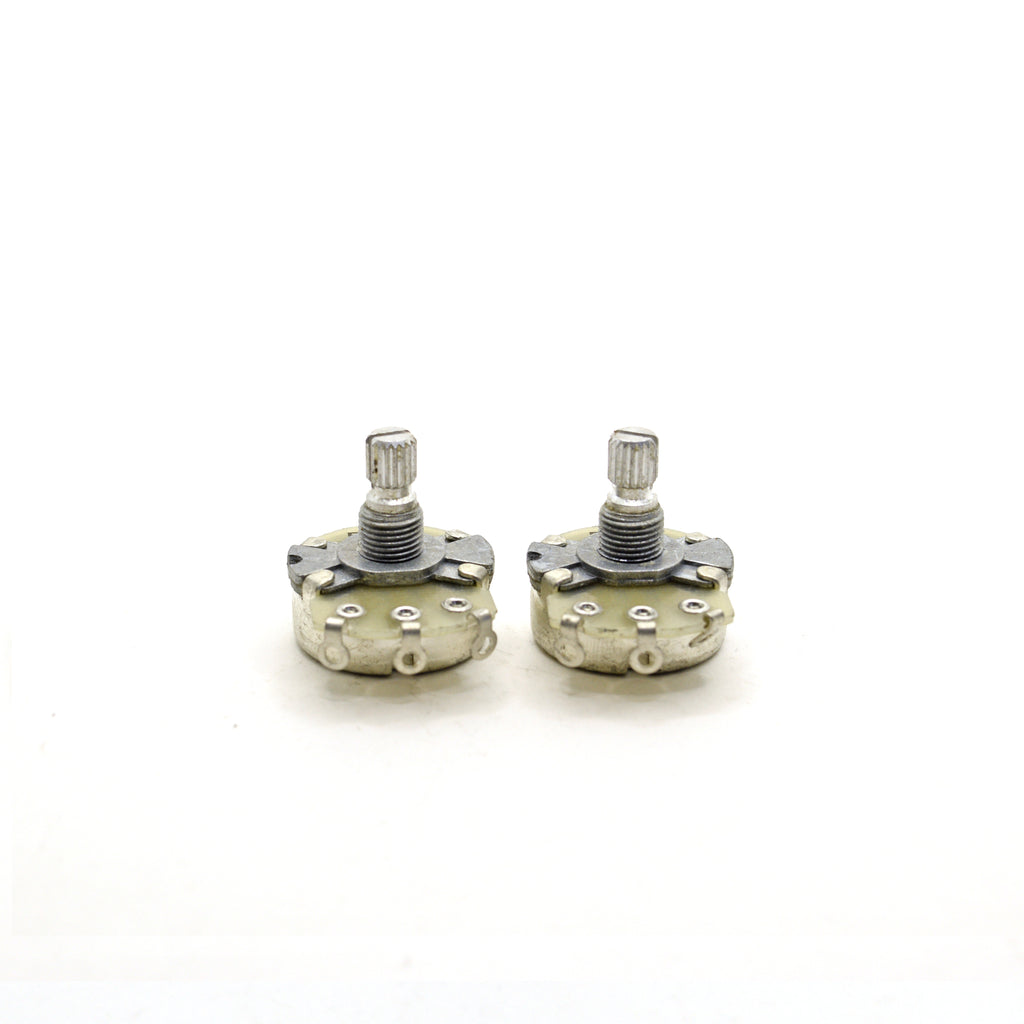

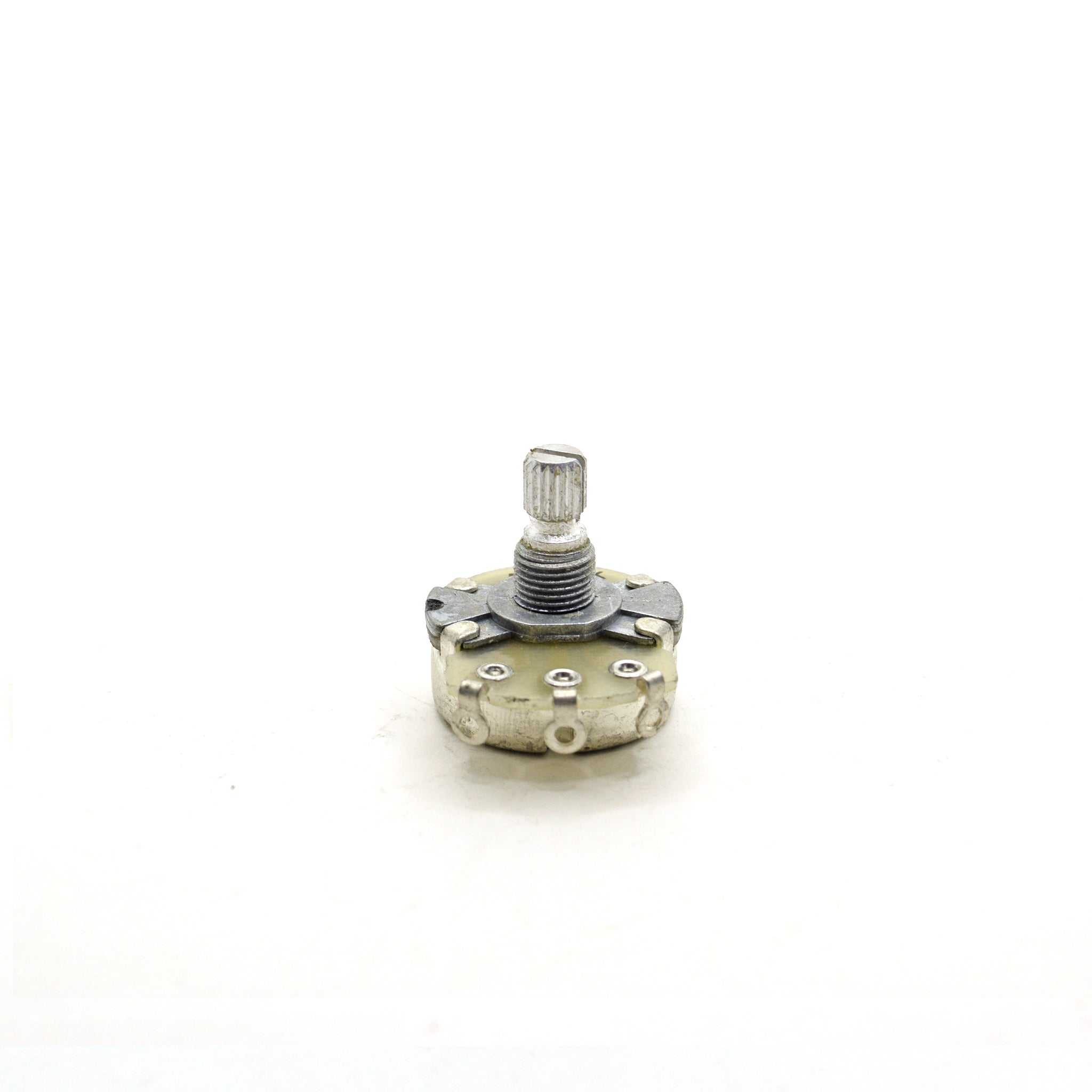

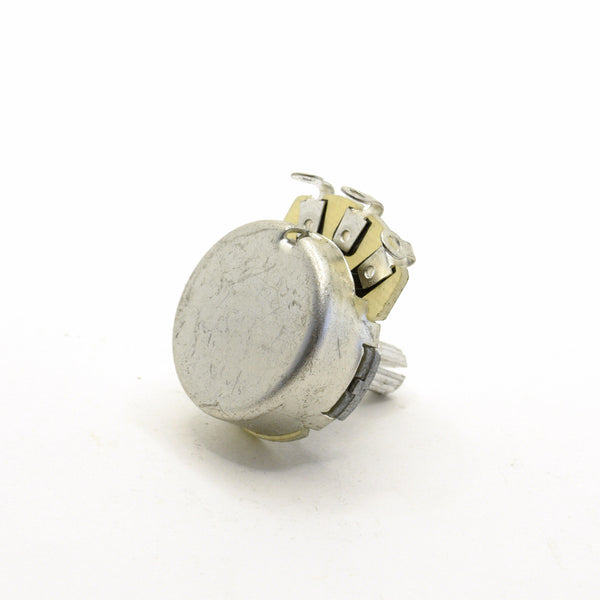

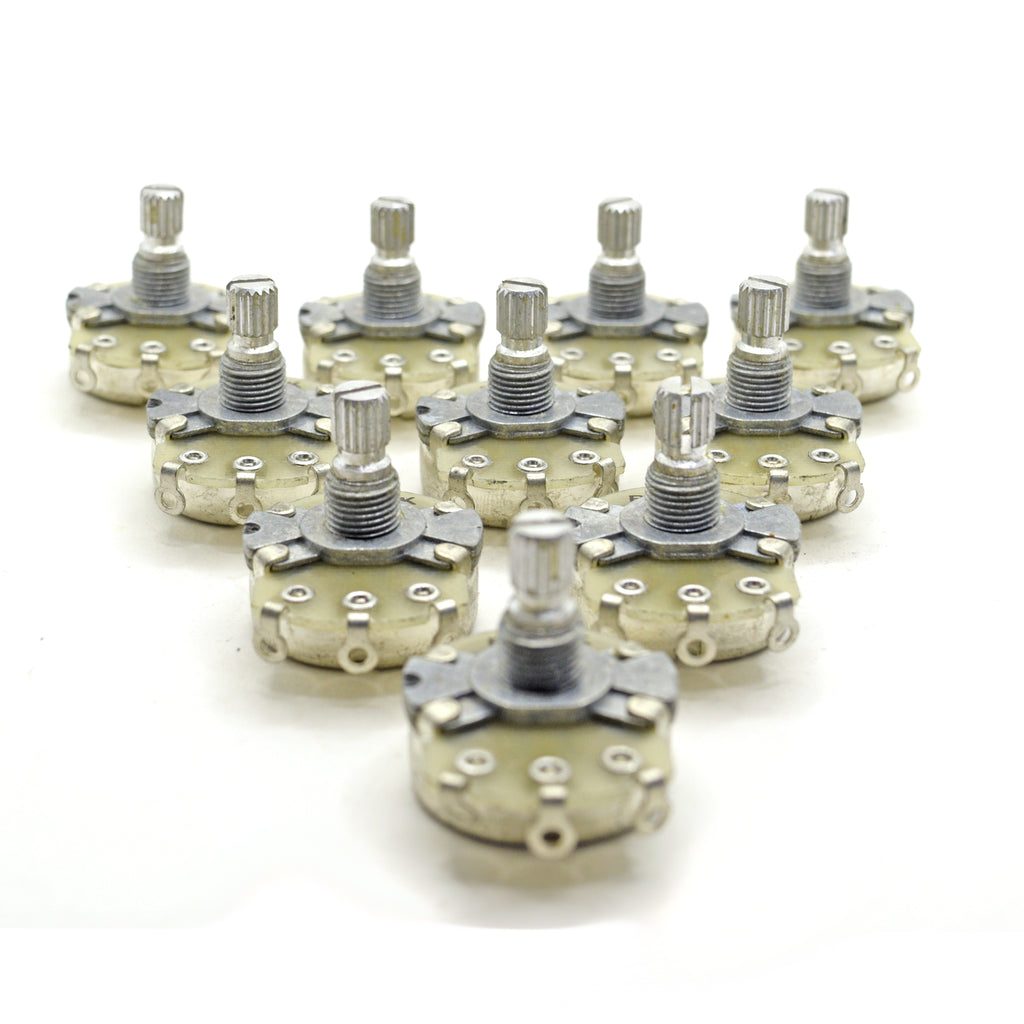

Alpha Potentiometer A25K Audio Taper Pot (Short Bushhing)
Alpha A25K Audio Taper Potentiometer
- 6mm diameter split shaft radial control coarse spline
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 5mm long (tall)
- Pot barrel housing is 24mm diameter
- Overall length is 26.3mm (tall)
Smooth control with NO center detent.
This is an “A” audio (logarithmic) taper pot.
Note that these pots have a shorter threaded bushing, typically used for pickguard mounting. Use these with active pickups or battery powered preamps for finer tuning of tone.
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
