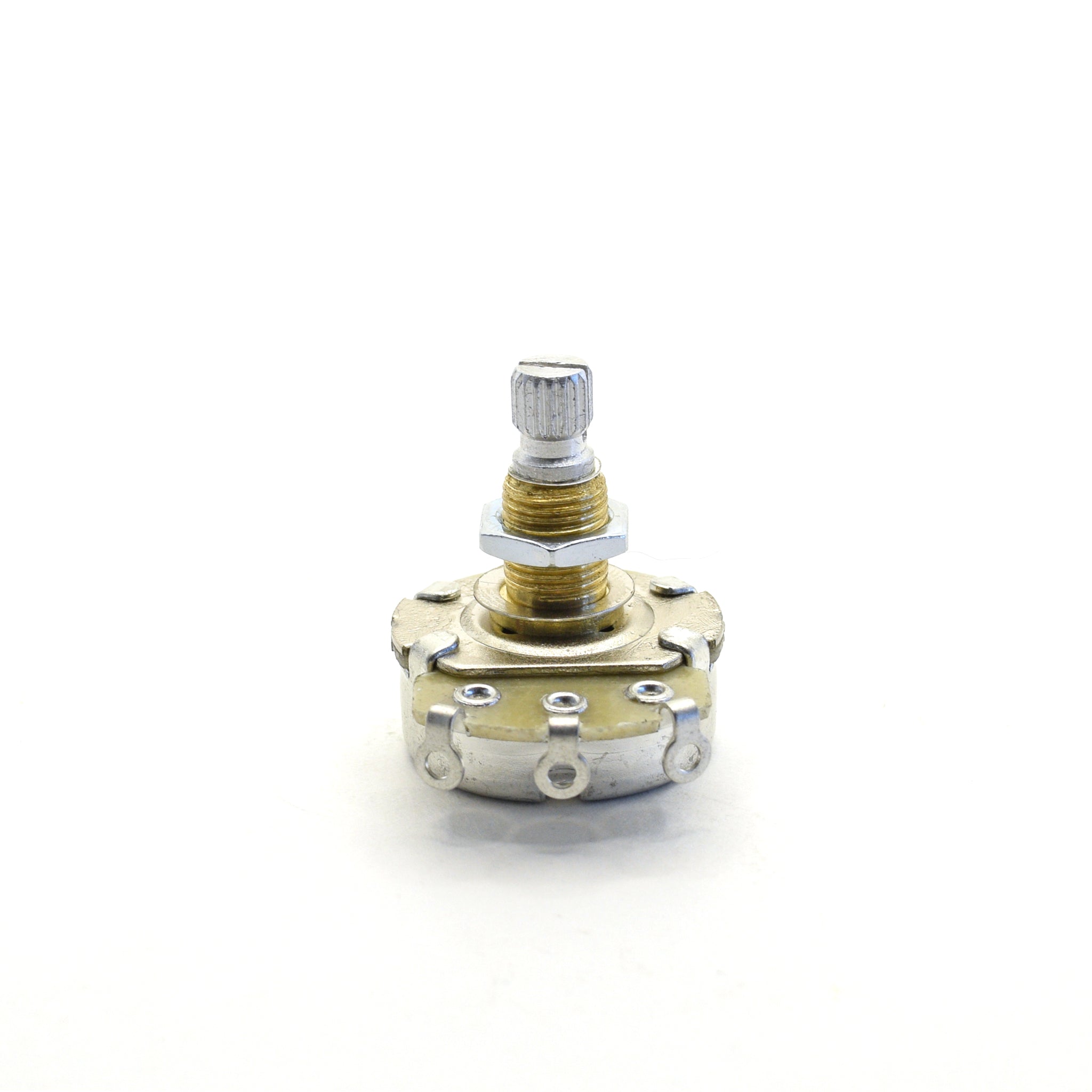

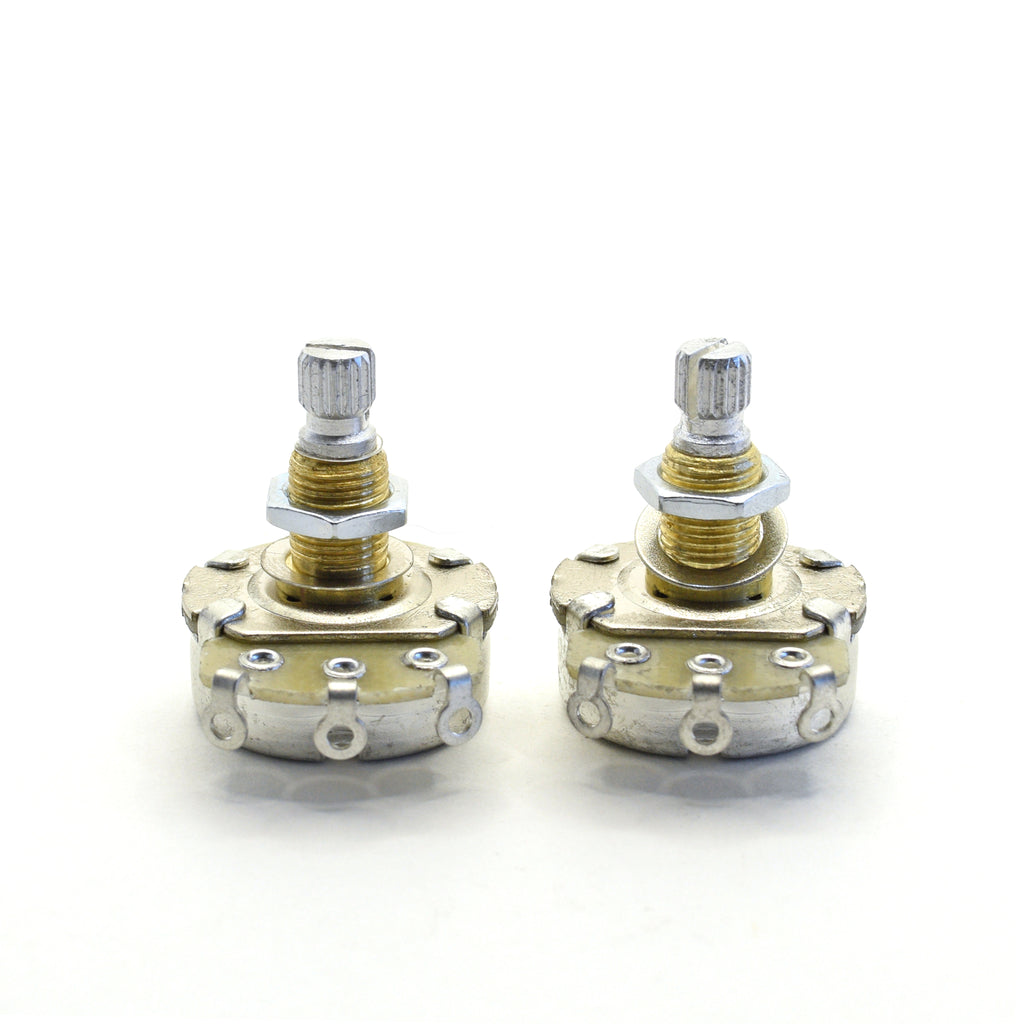

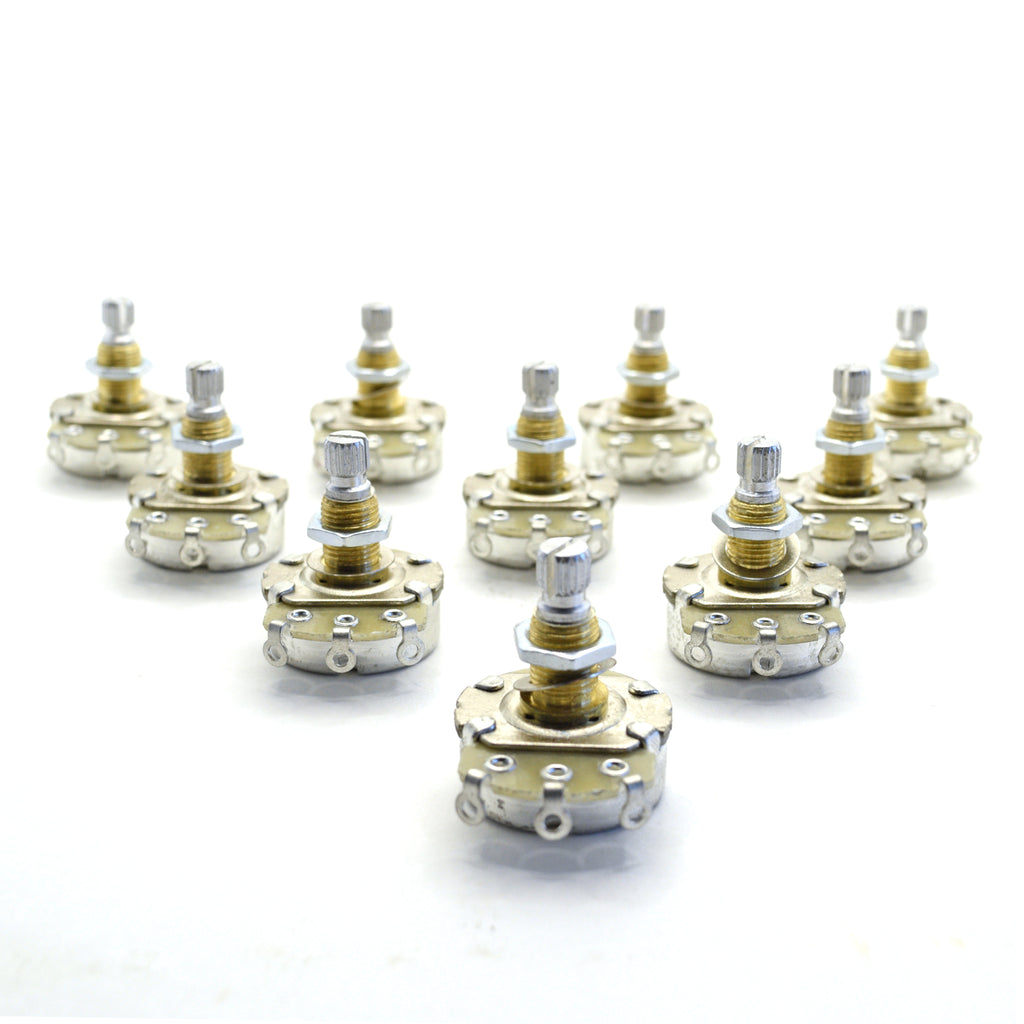

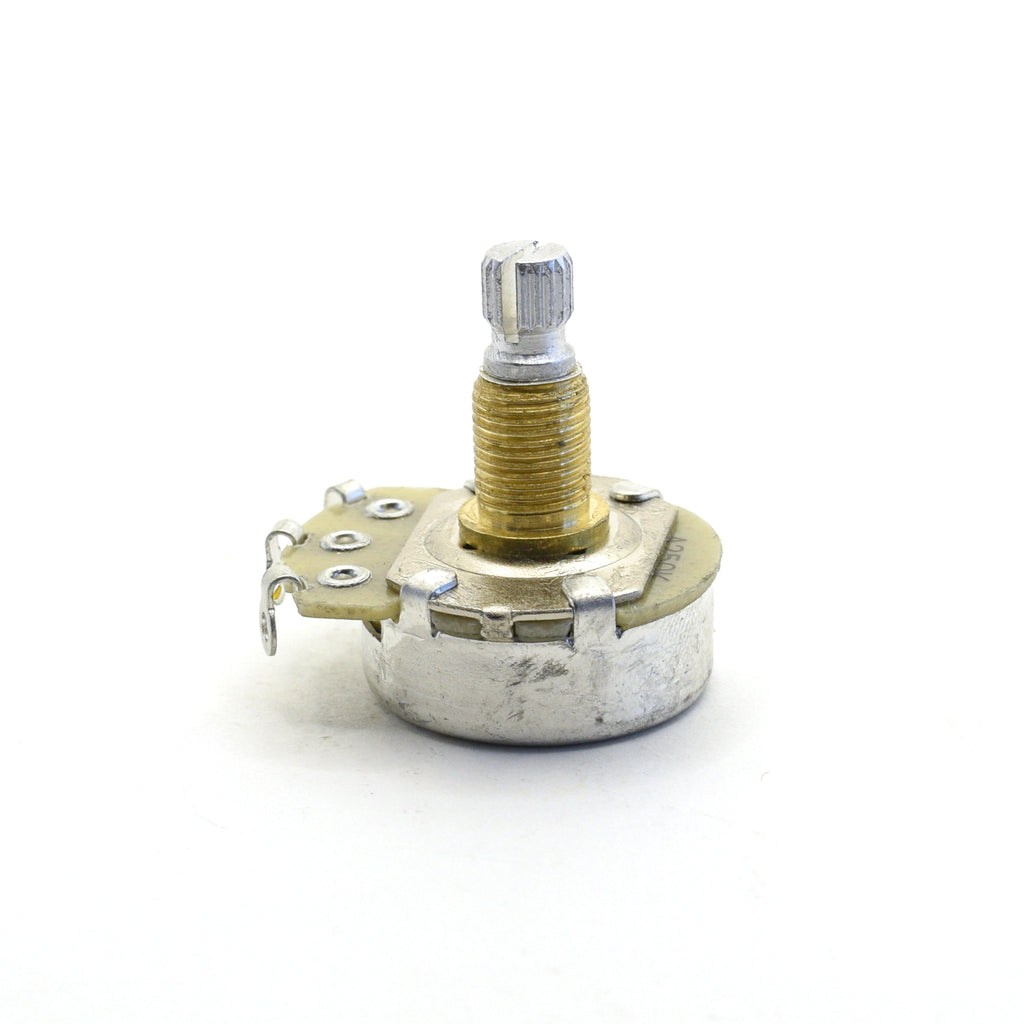

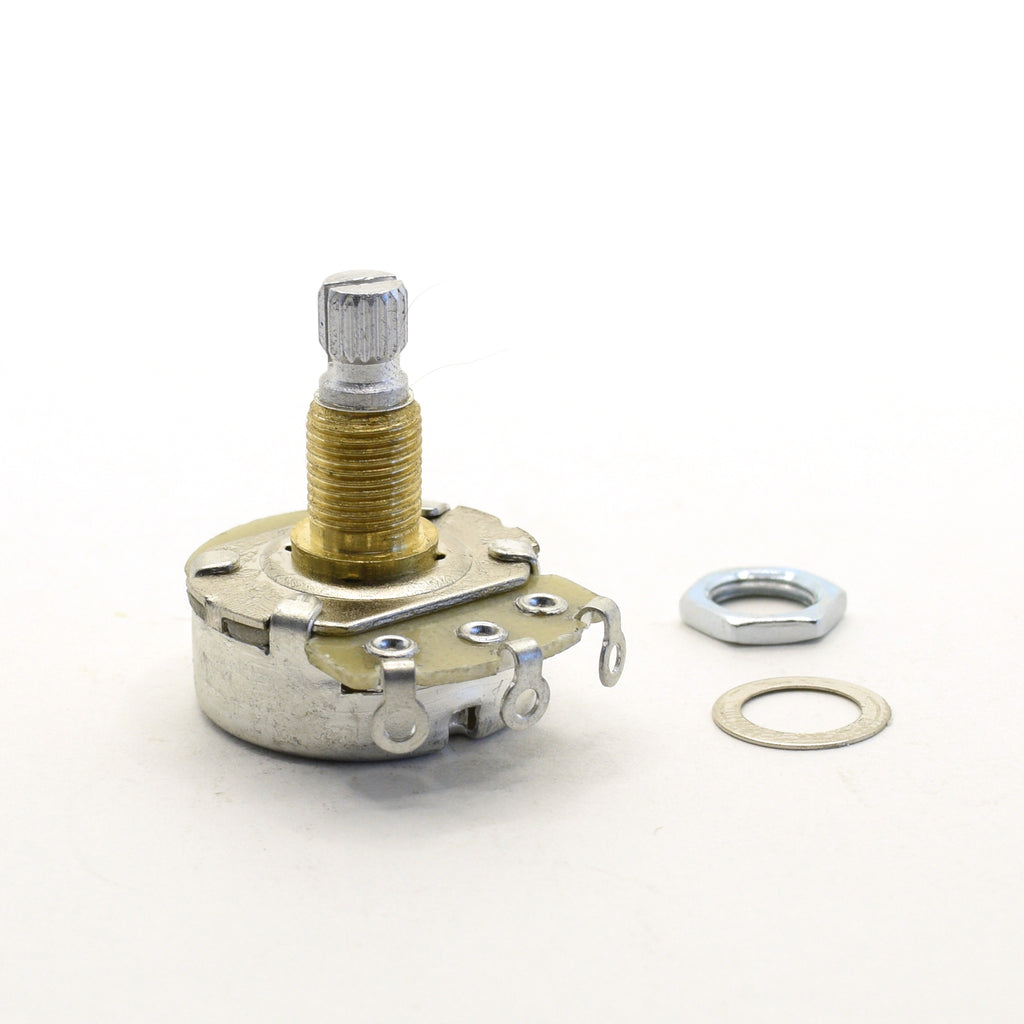

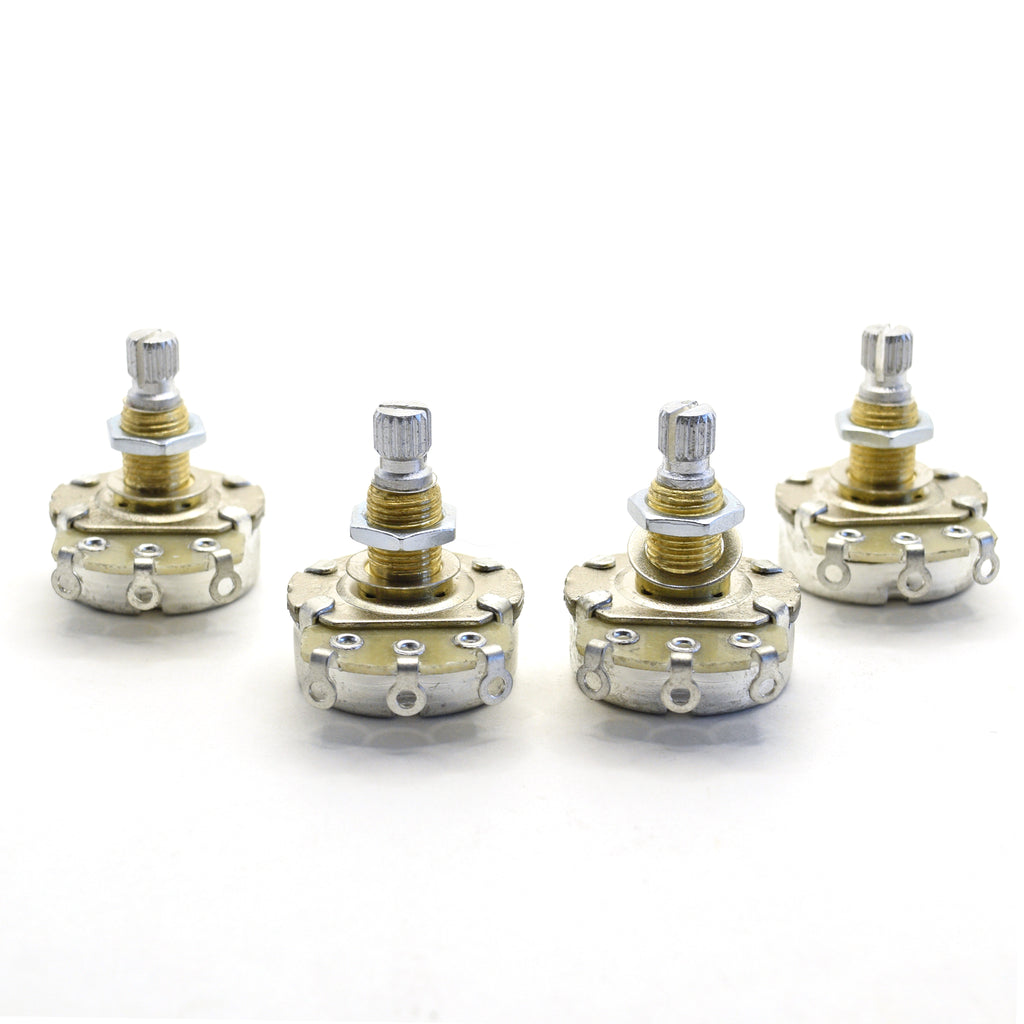

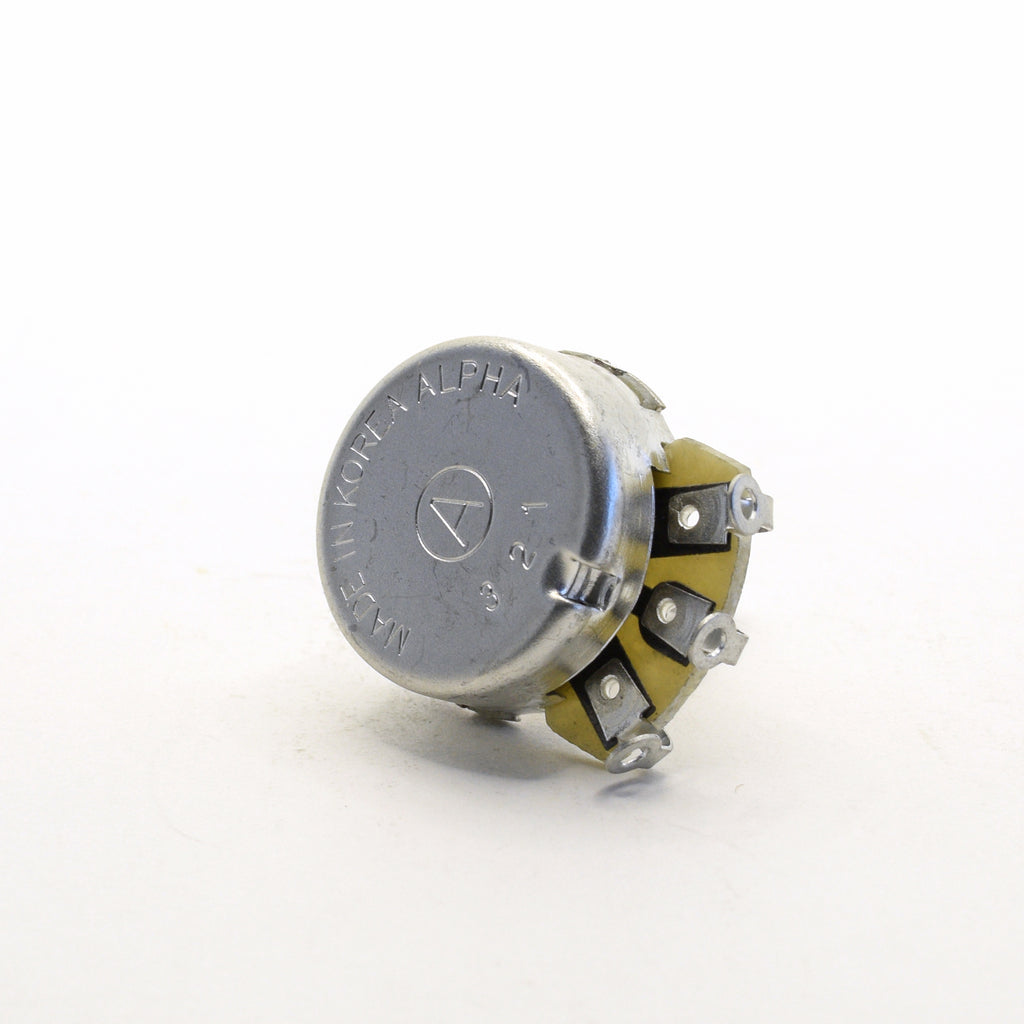

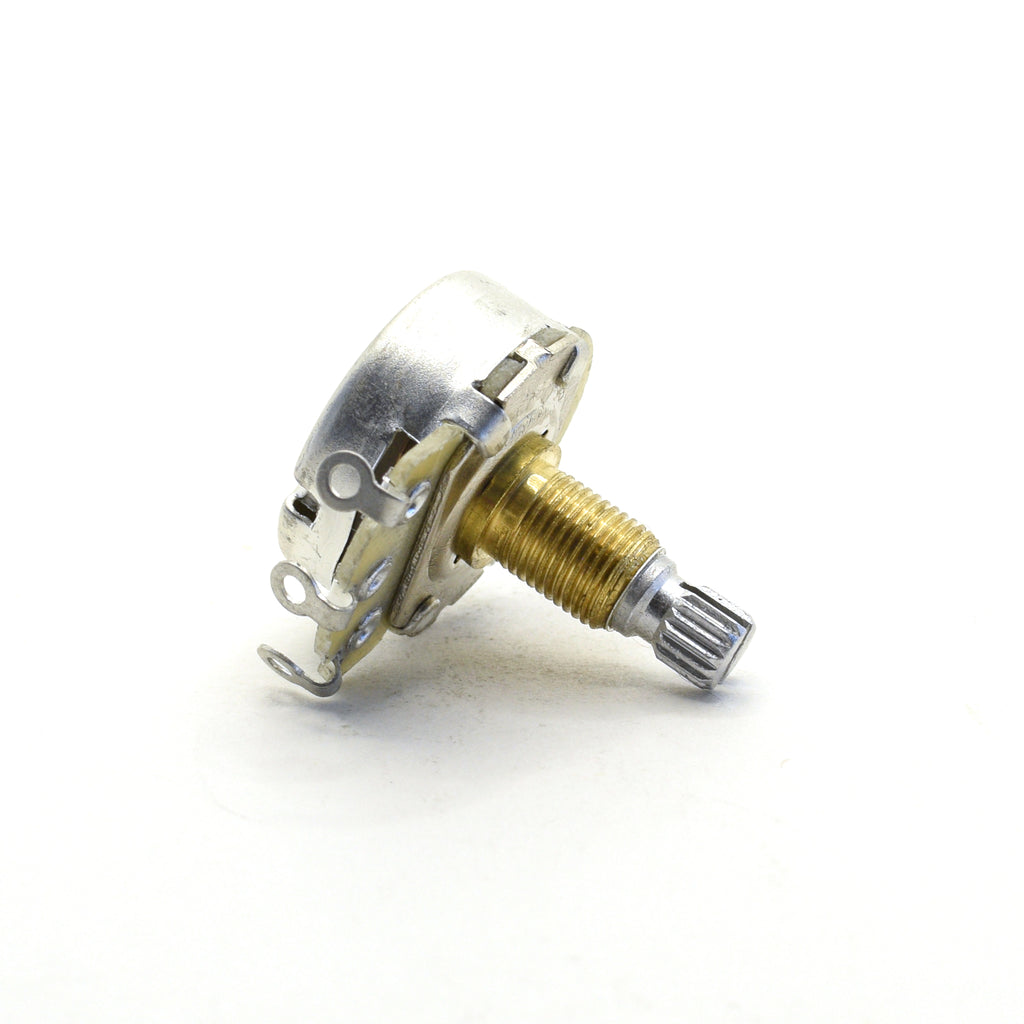

Alpha Potentiometer Brass Bushing A250K Audio Taper Pot

• 6mm diameter split shaft radial control
• Radial control shaft 8mm long (tall) from top of threaded bushing
• Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
• Pot barrel housing is 24mm diameter
• Overall length is 29.3mm (tall)

Smooth control with NO center detent.

This is an “A” audio (logarithmic) taper pot.

250K matches great with single coil pickups. Why choose a brass bushing pot? Brass is a naturally self-lubricating metal, ensuring smooth rotating action over the pot's lifetime.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
