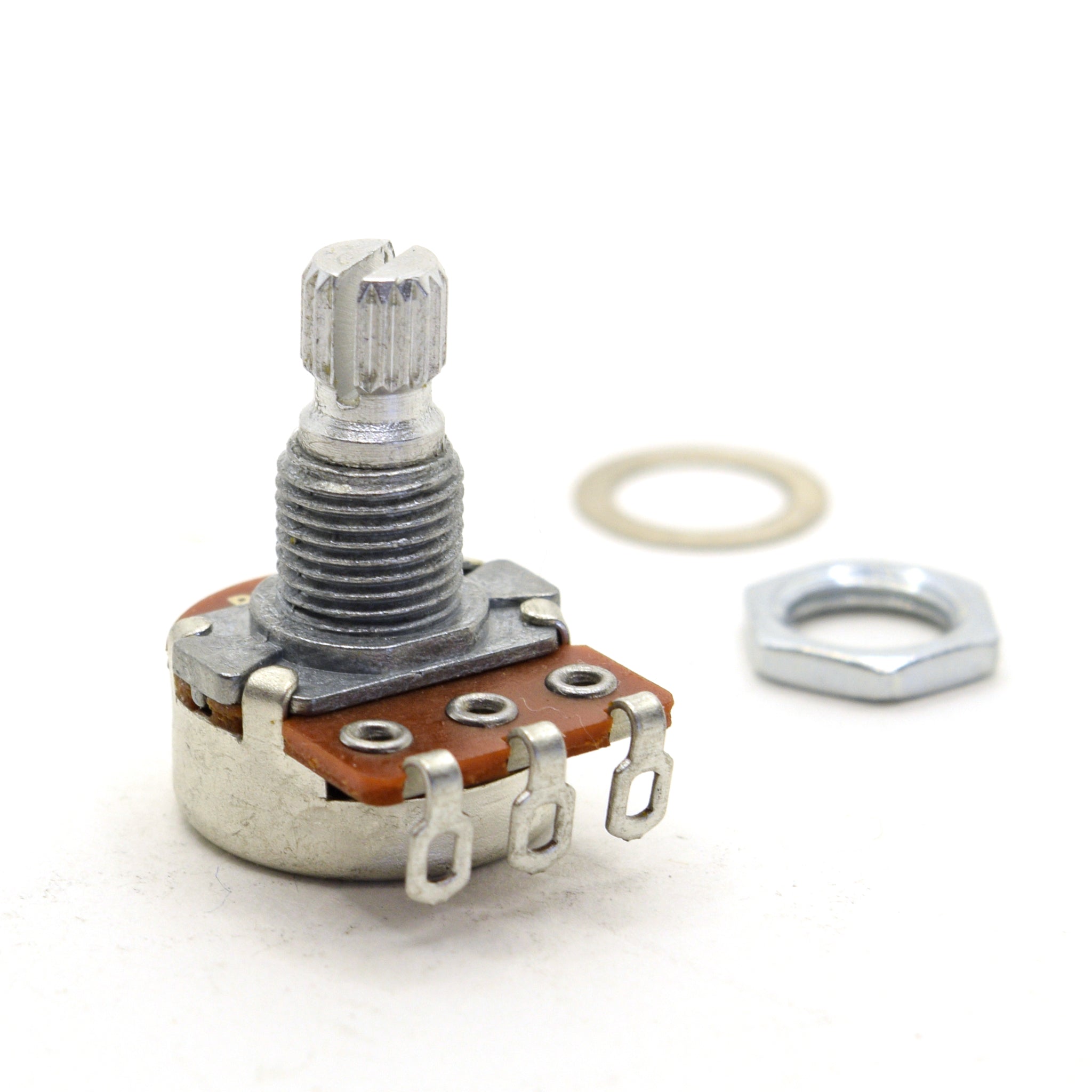

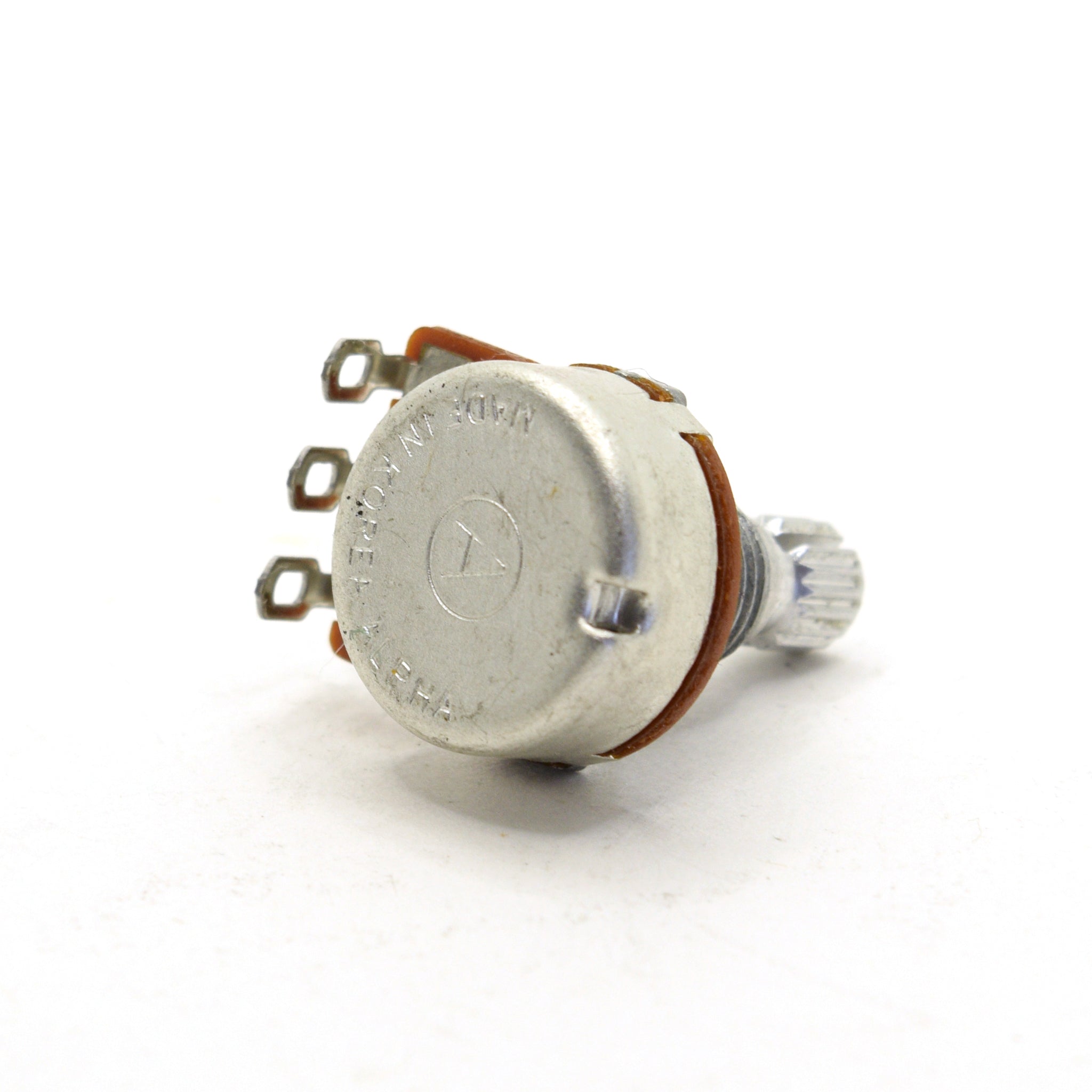

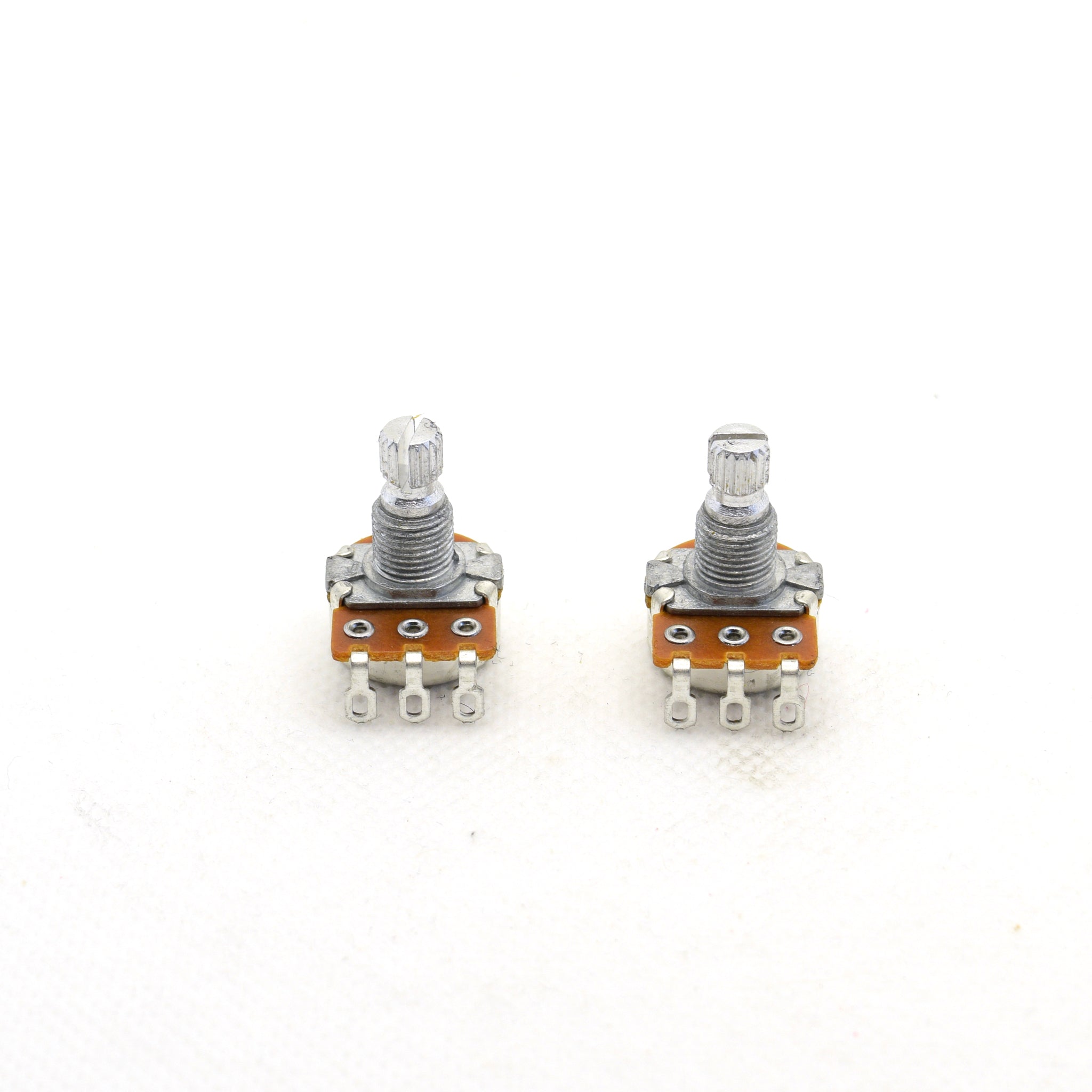

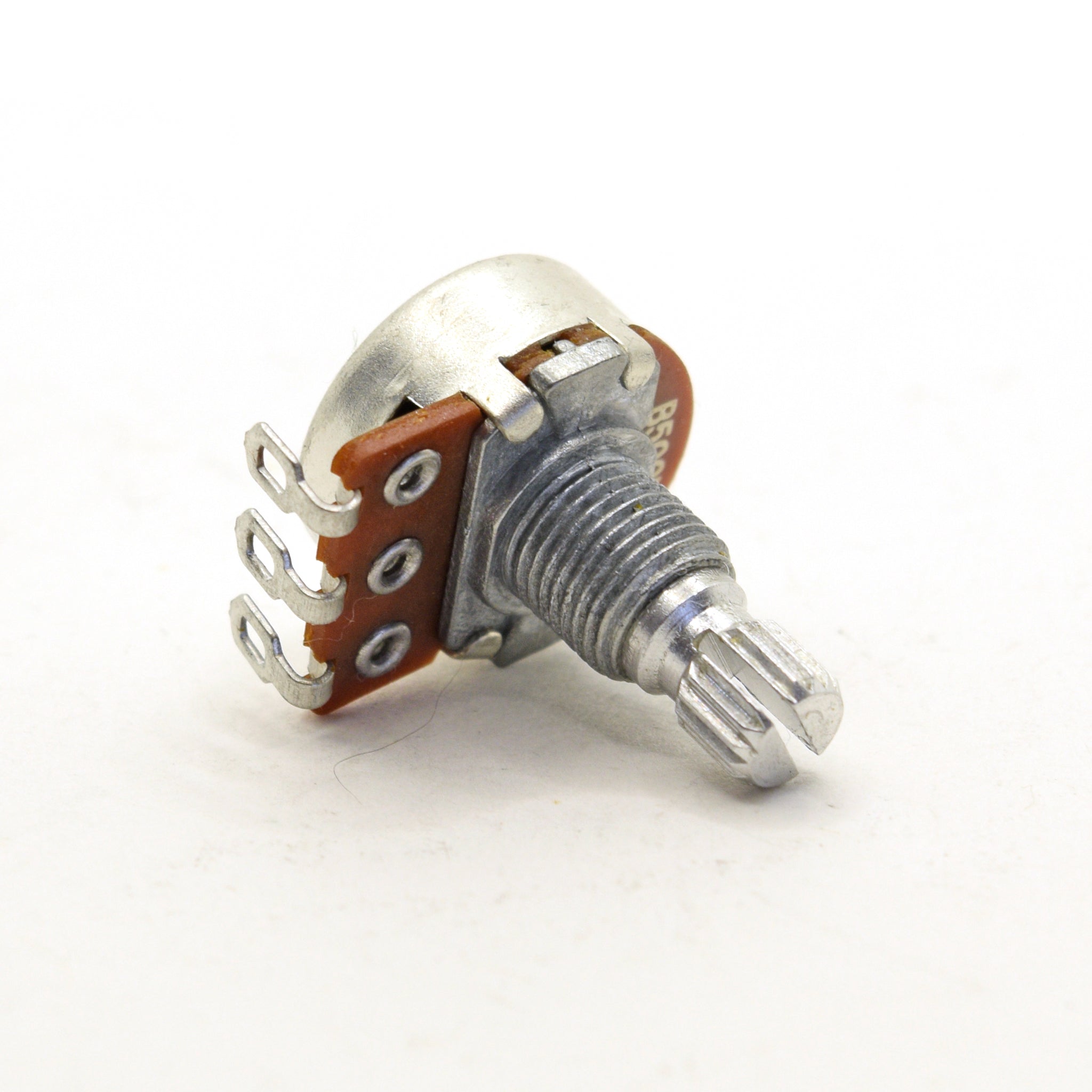

Alpha Potentiometer B500K Linear Taper Mini Pot

Shipping calculated at checkout.
Alpha Mini B500K Linear Tone Potentiometer
  • 6mm diameter split shaft radial control 18 spline
  • Radial control shaft 8mm long (tall) from top of threaded bushing
  • Threaded bushing is 7.6mm diameter x 8mm long (tall)
  • Pot barrel housing is 16.5mm diameter
  • Overall length is 24.5mm (tall)

Smooth control with NO center detent.

This is a “B” linear taper pot.

The pot barrel diameter is a little smaller than a dime, making it great for tight control cavities or archtop guitar pickguard mount. 500K is commonly best paired with a humbucker.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea


Out of stock

Collections: Potentiometers Vendors: Thompson Guitar & Thrift SKU: PB500M
