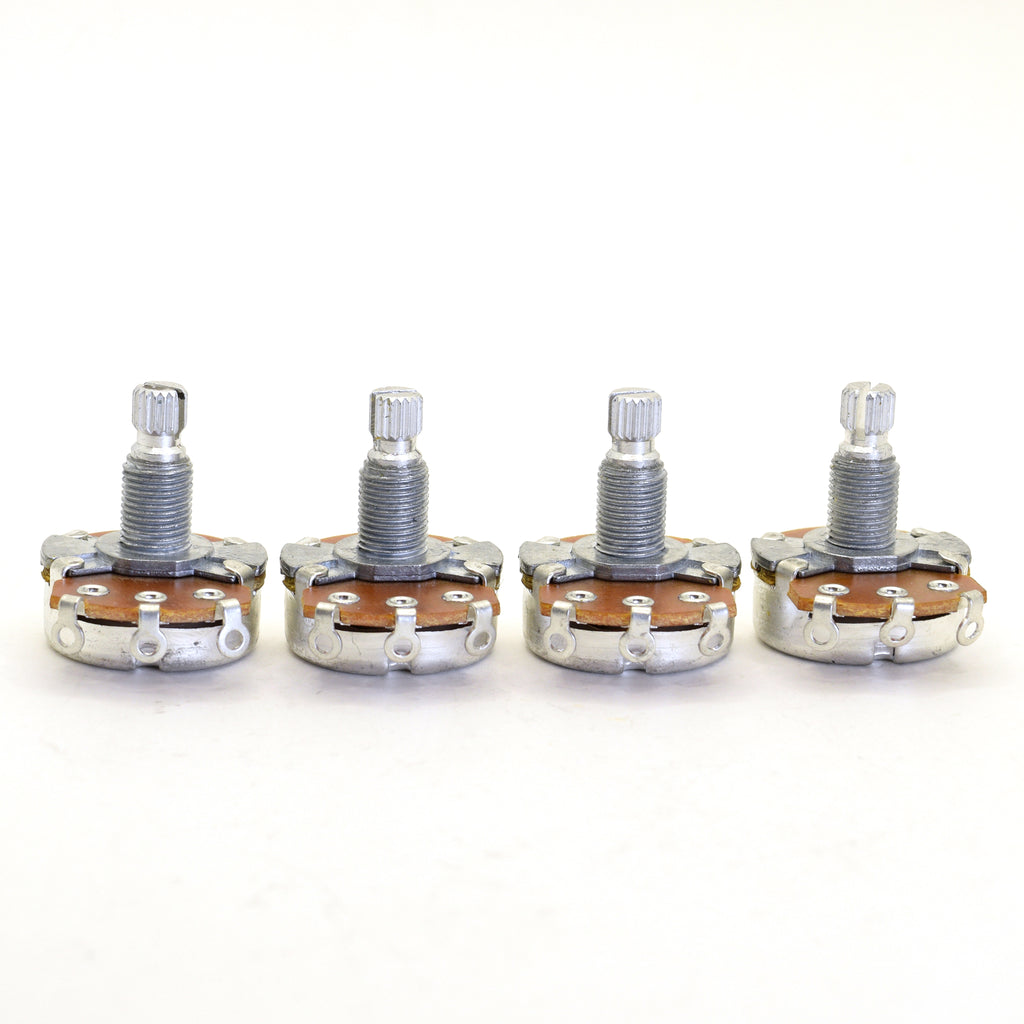

Alpha Potentiometer A500K Audio Pot

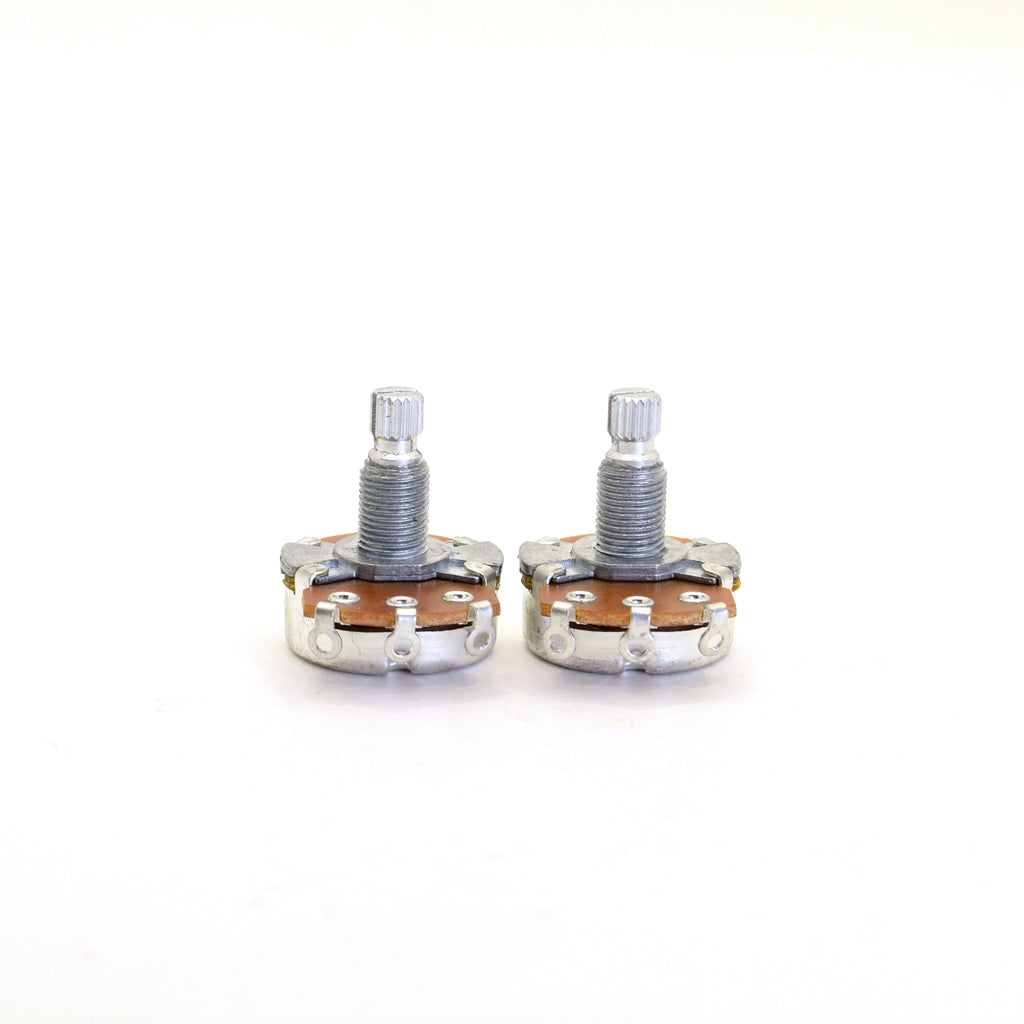

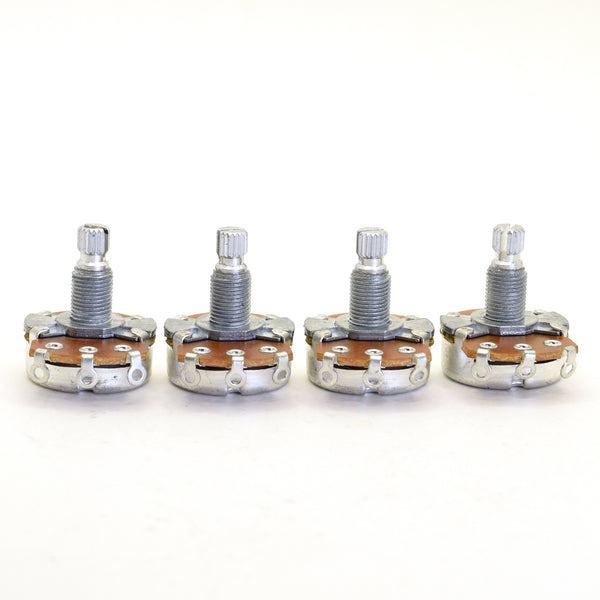

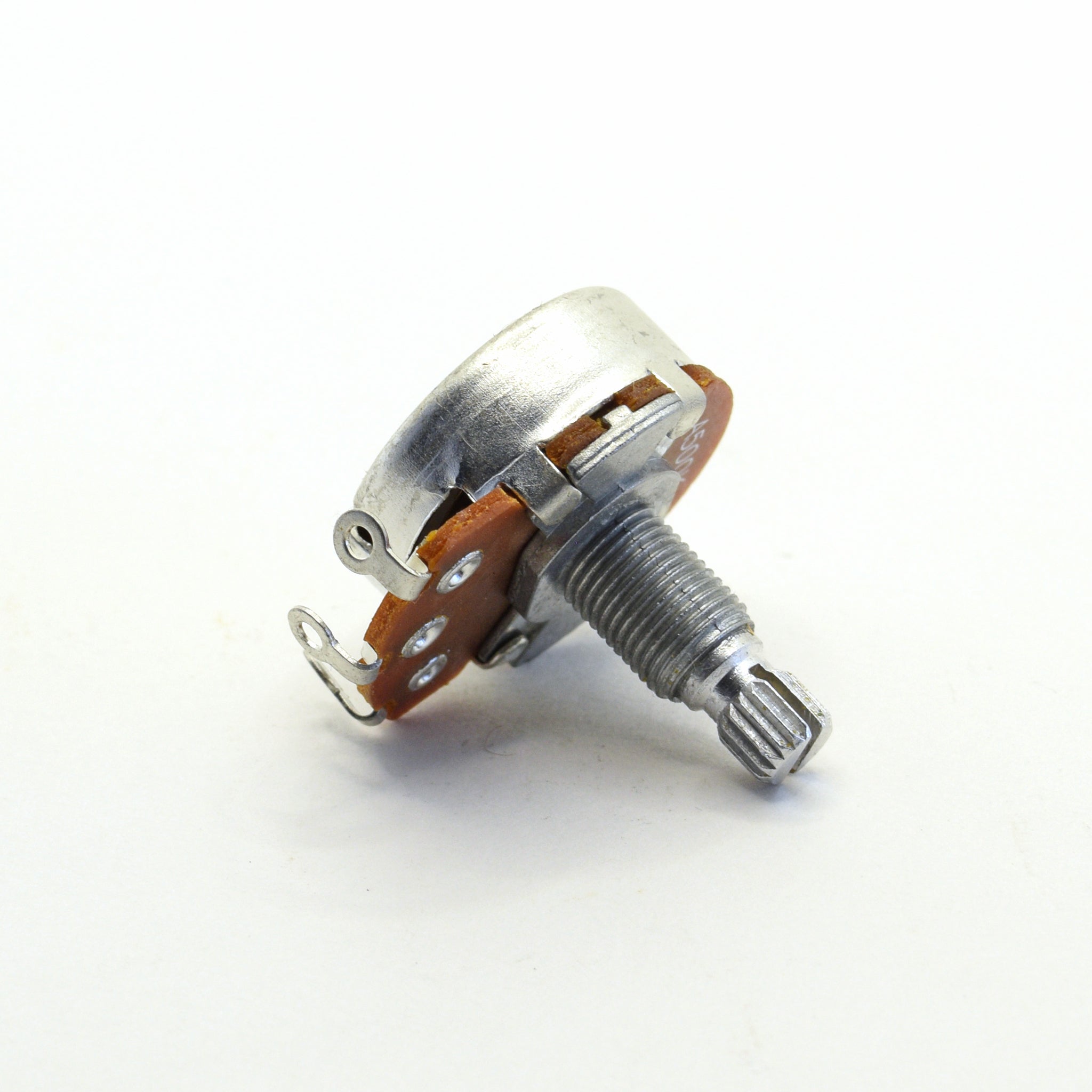

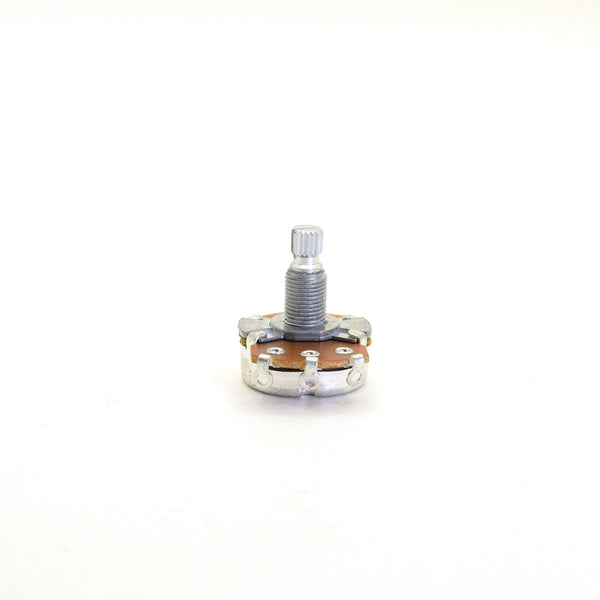

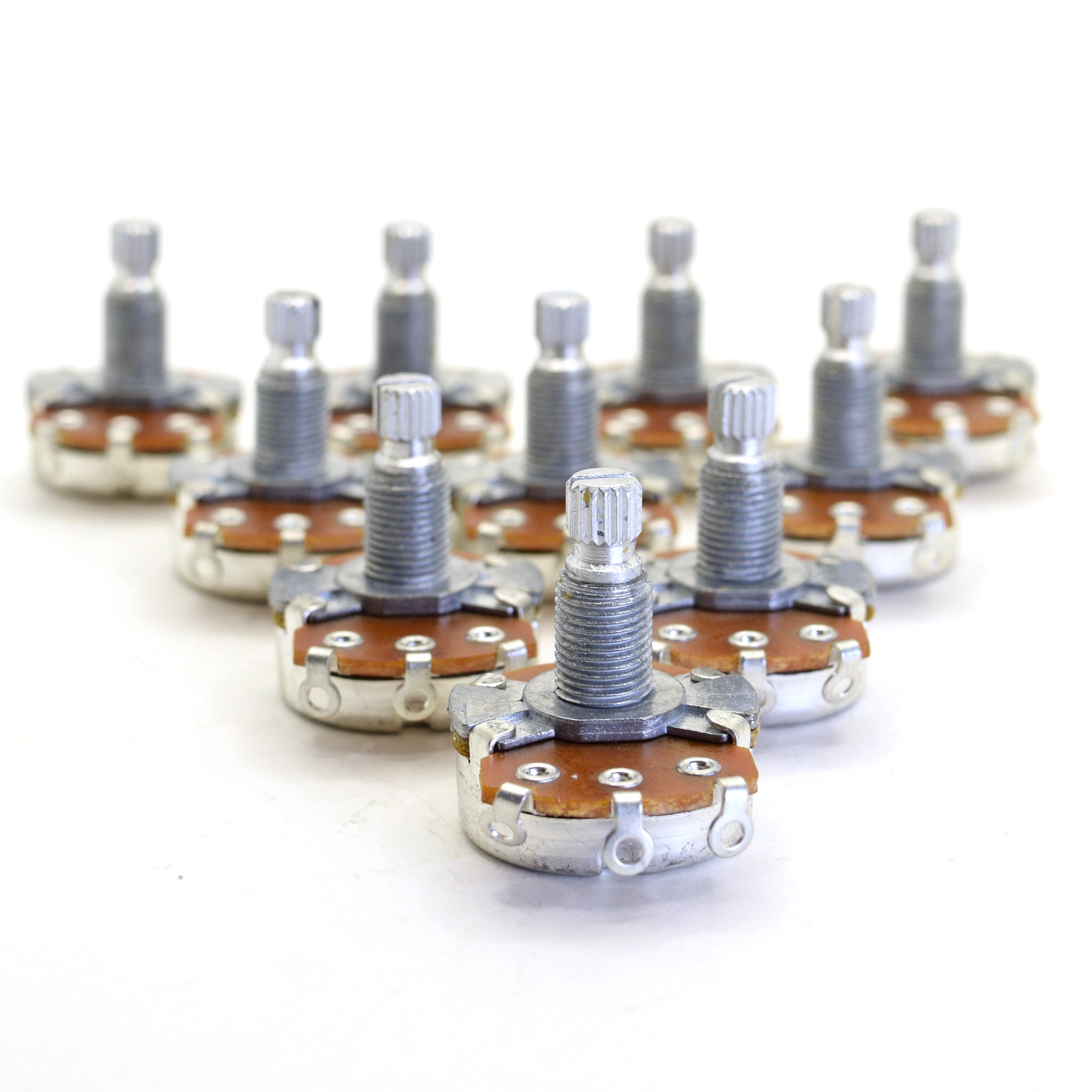

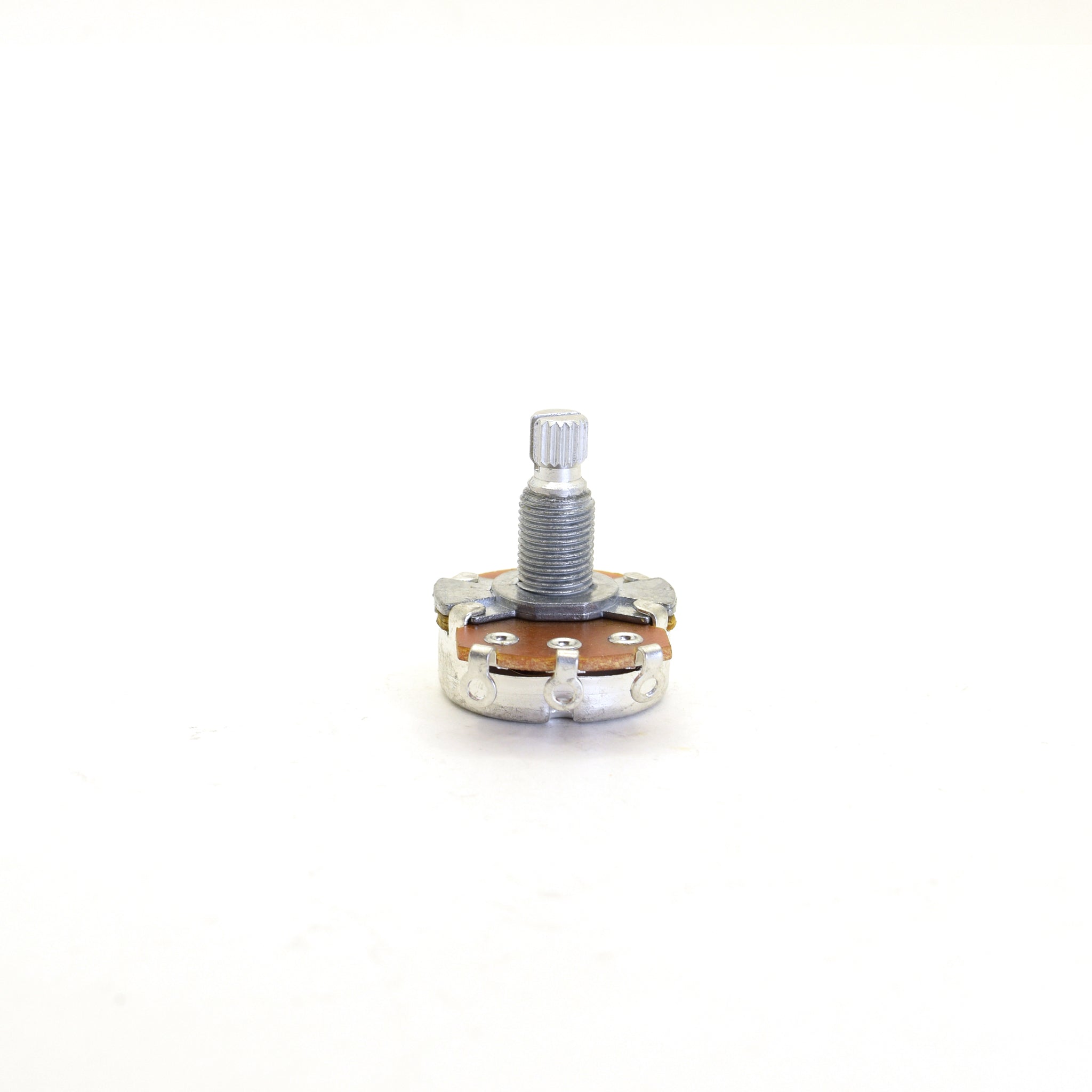

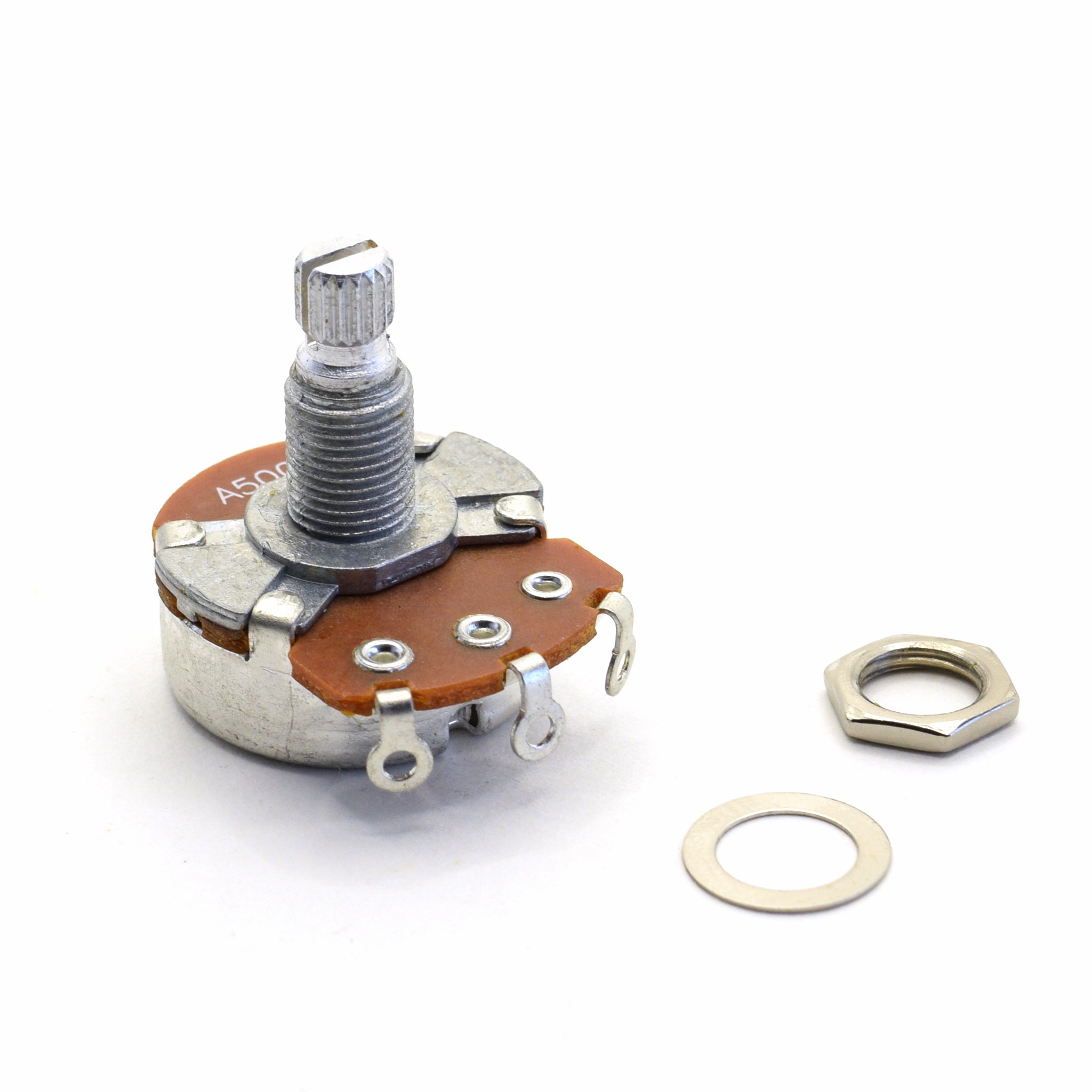

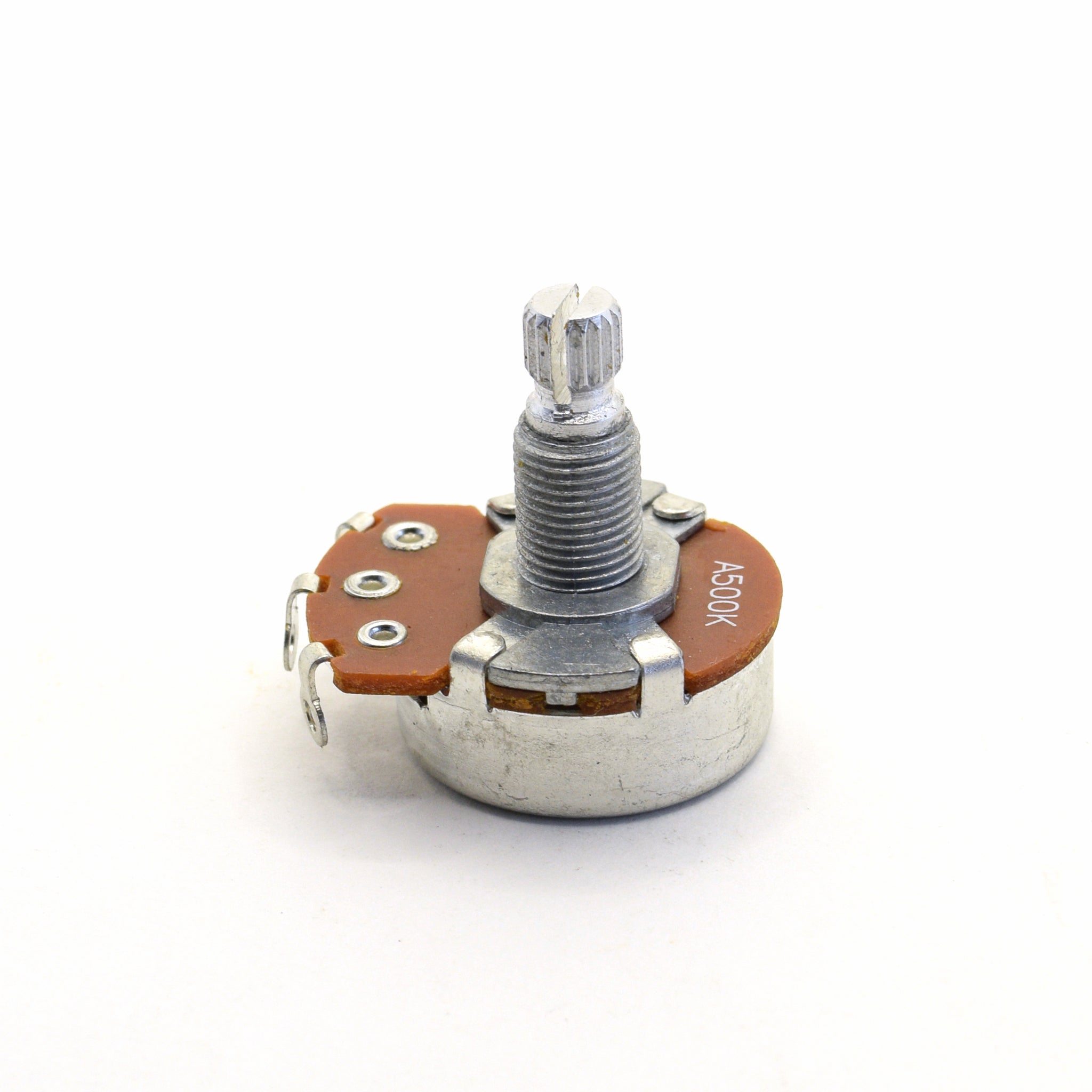

Alpha A500K Audio Potentiometer
- 6mm diameter split shaft radial control coarse spline
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
- Pot barrel housing is 24mm diameter
- Overall length is 29.3mm (tall)
Smooth control with NO center detent.
This is an “A” audio (logarithmic) taper pot.
500K matches great with humbucker pickups
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here

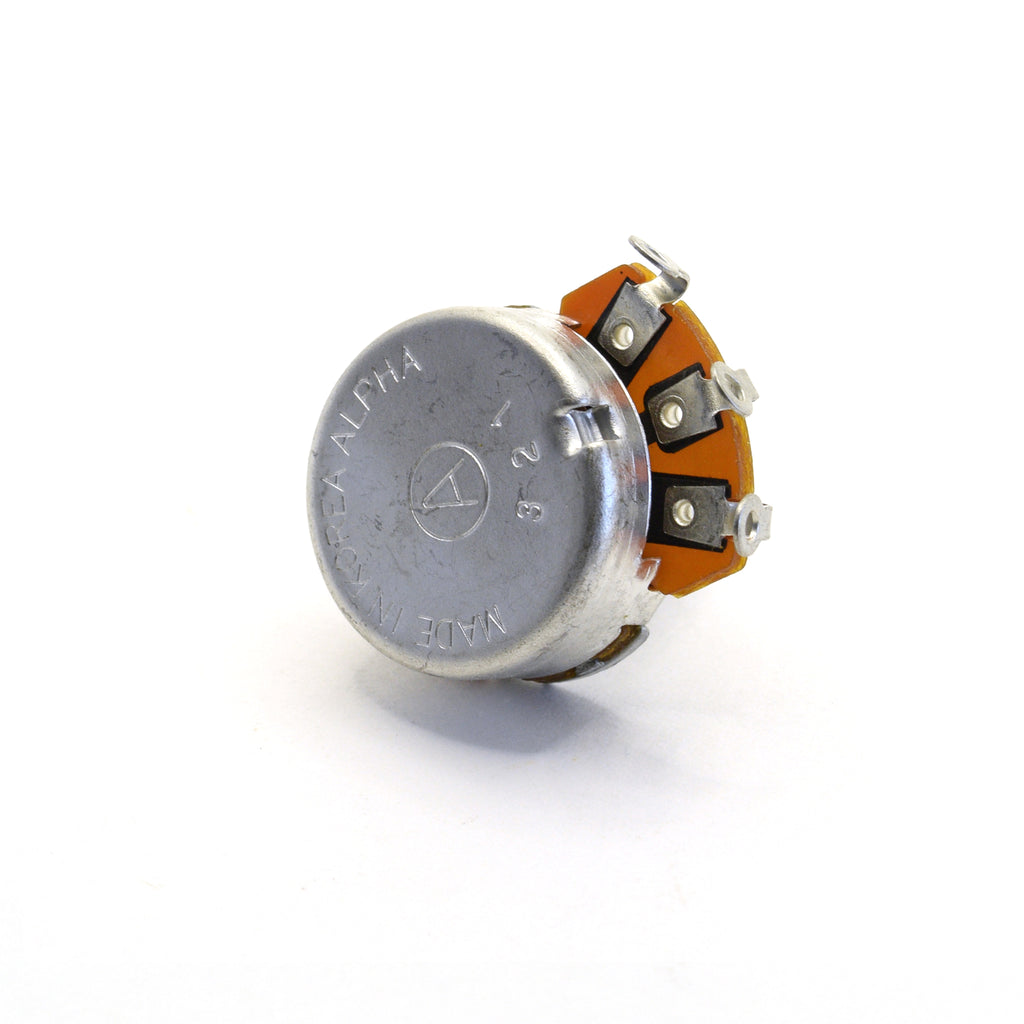

High quality, made in Korea
