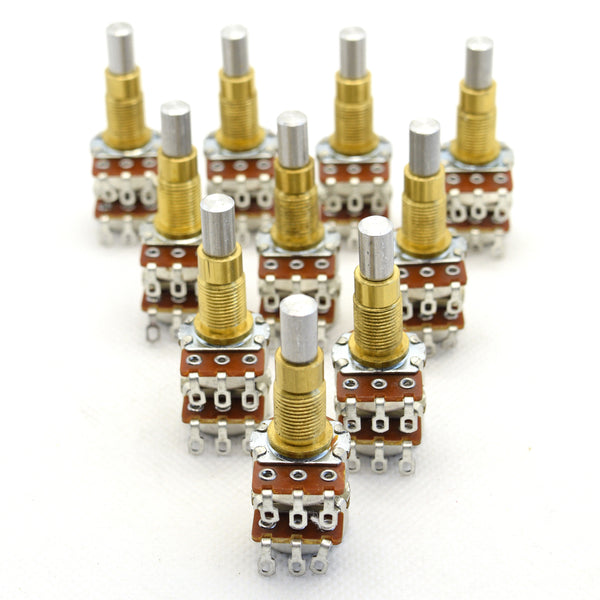

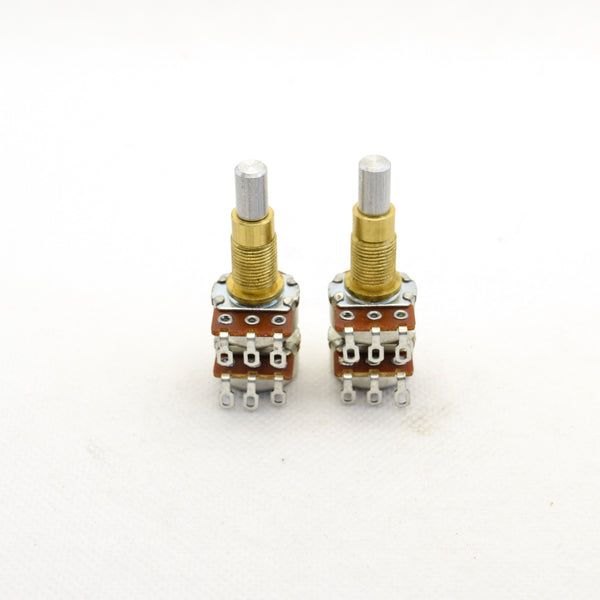

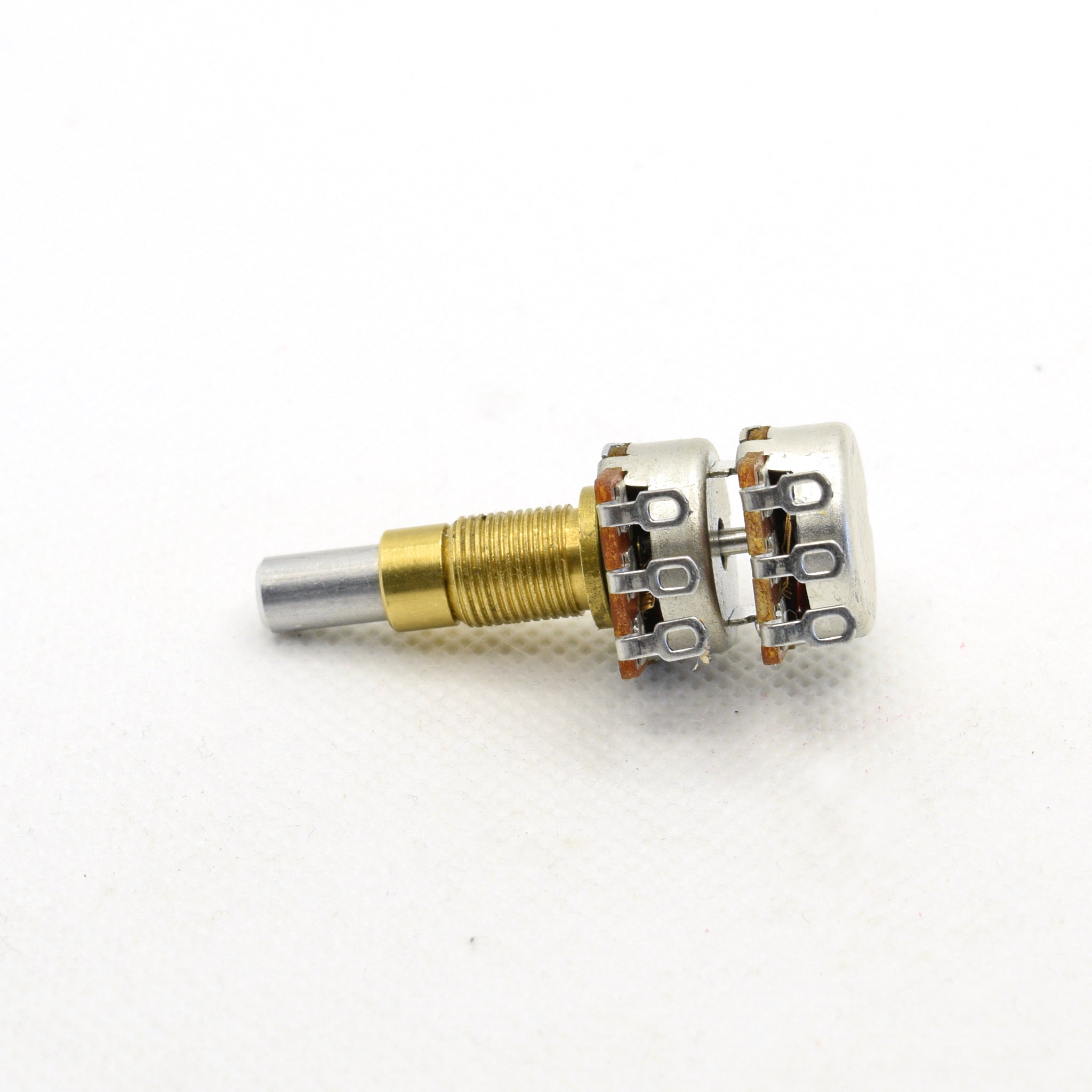

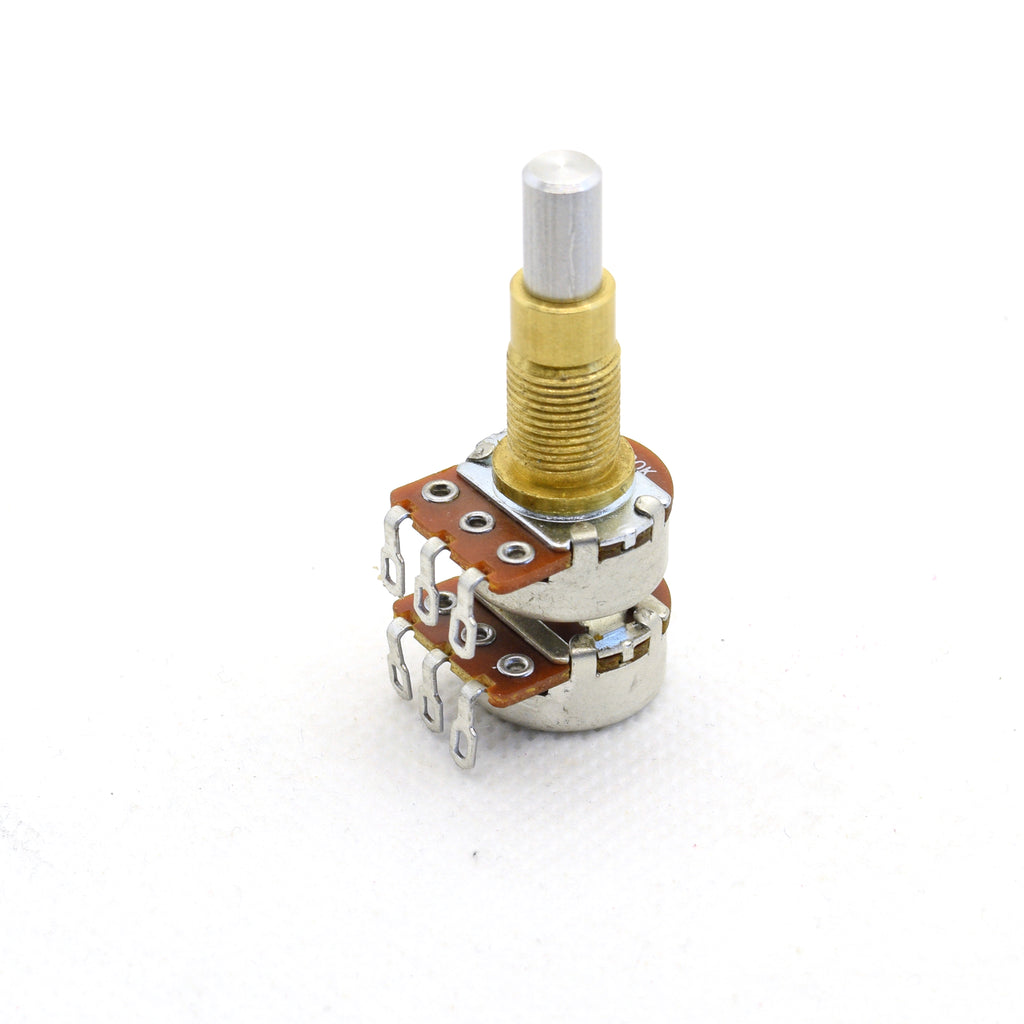

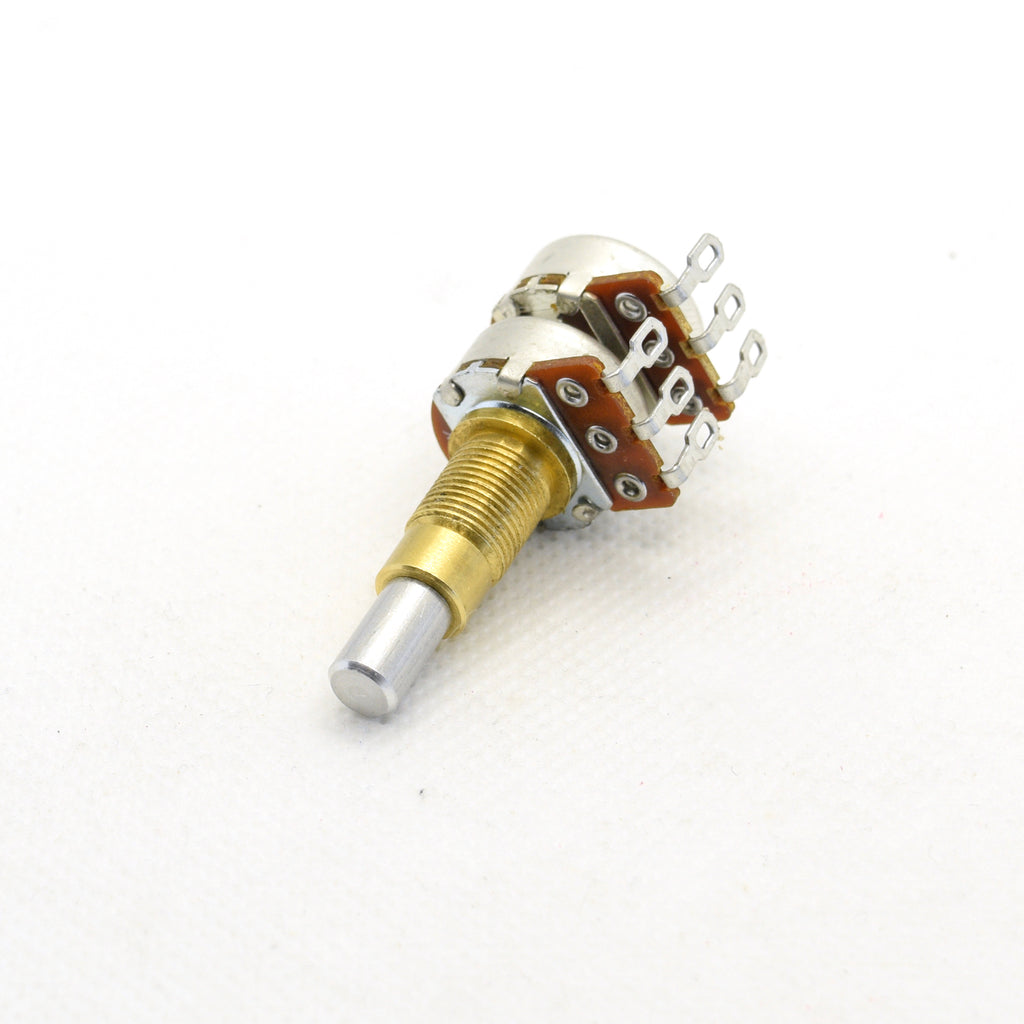

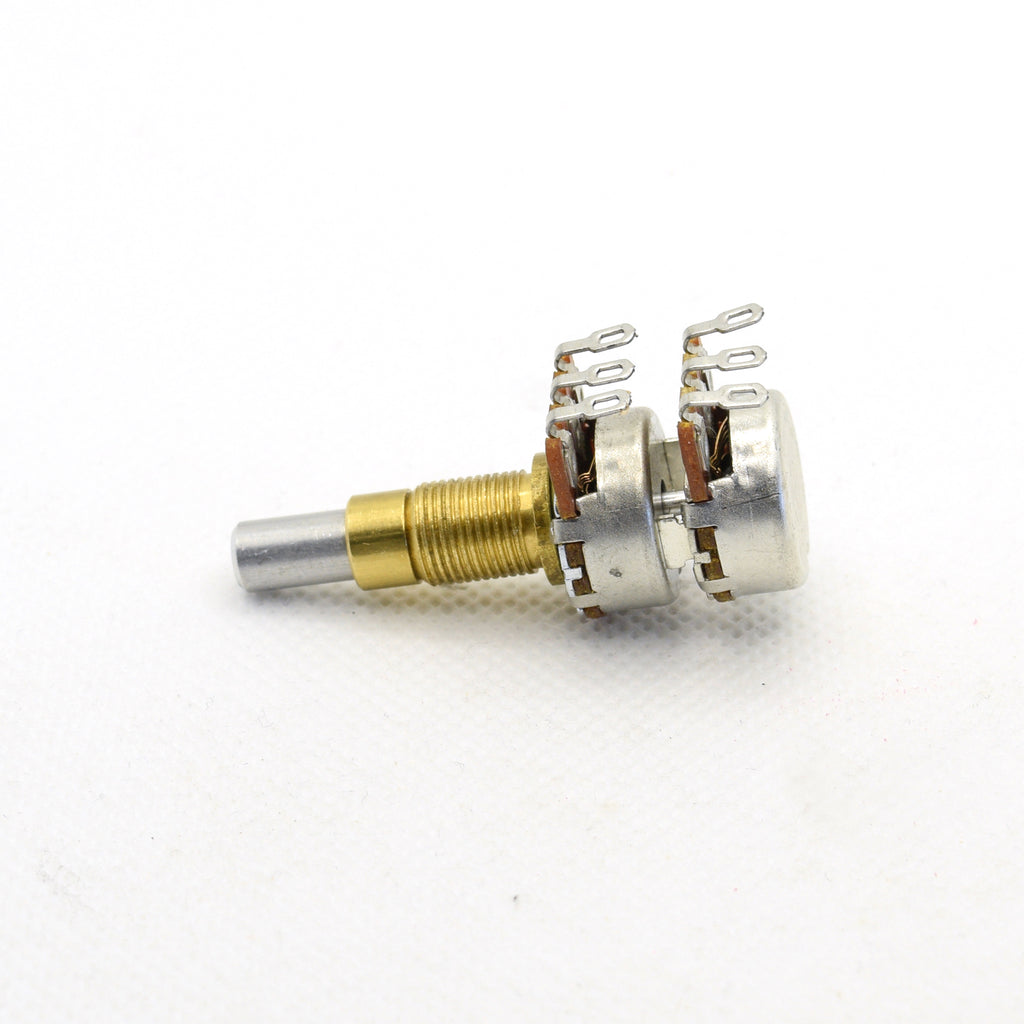

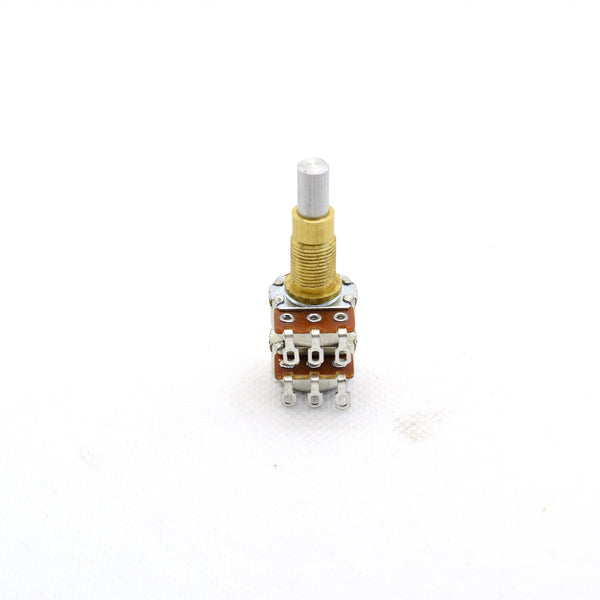

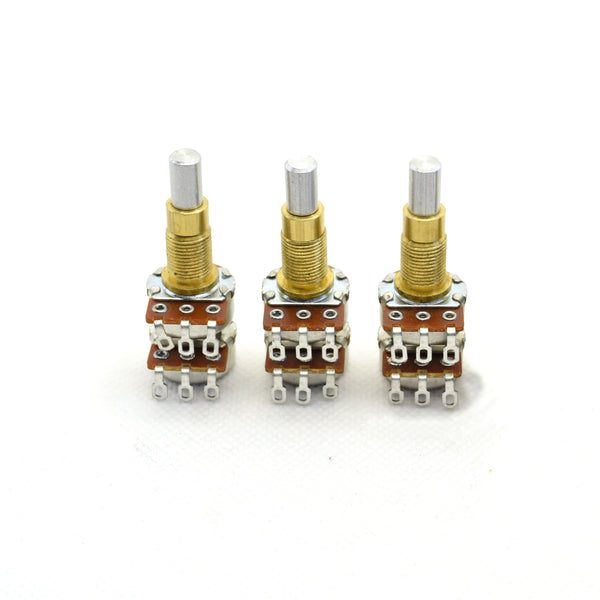

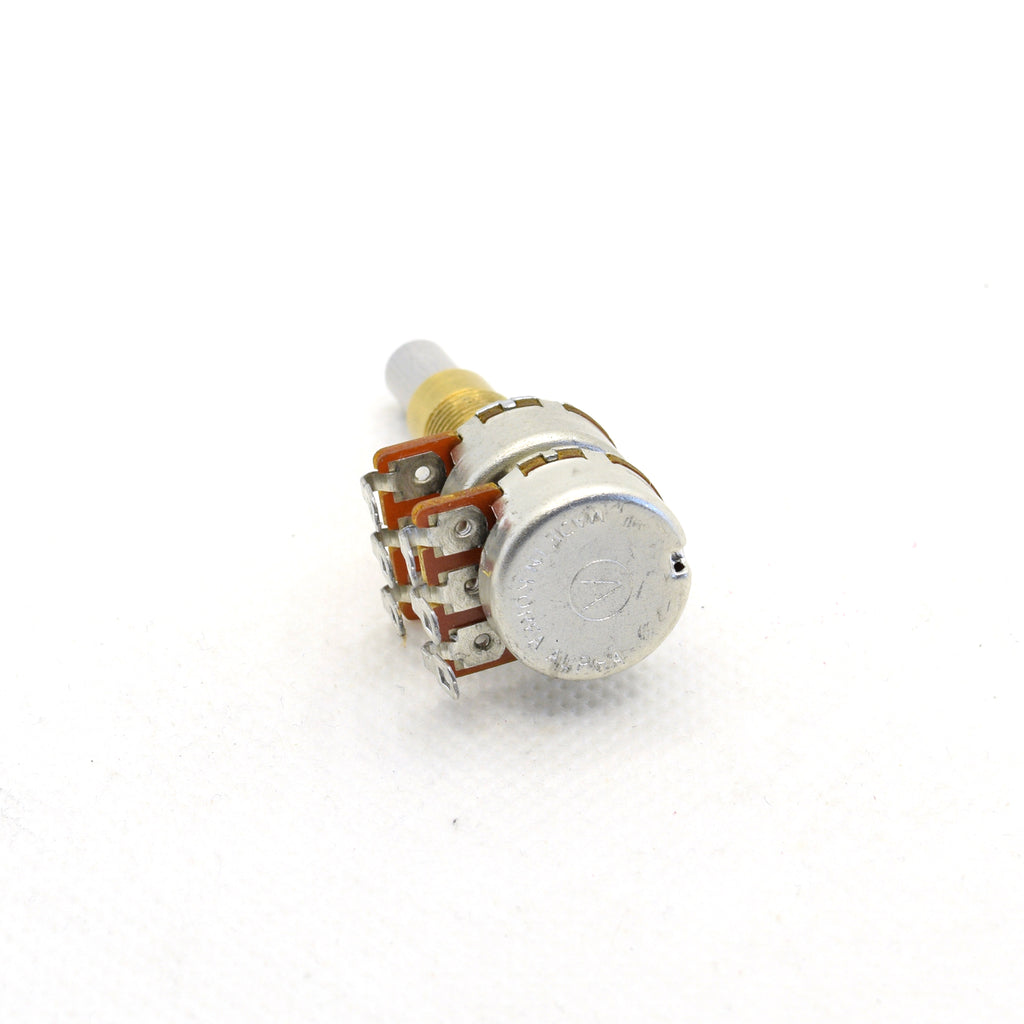

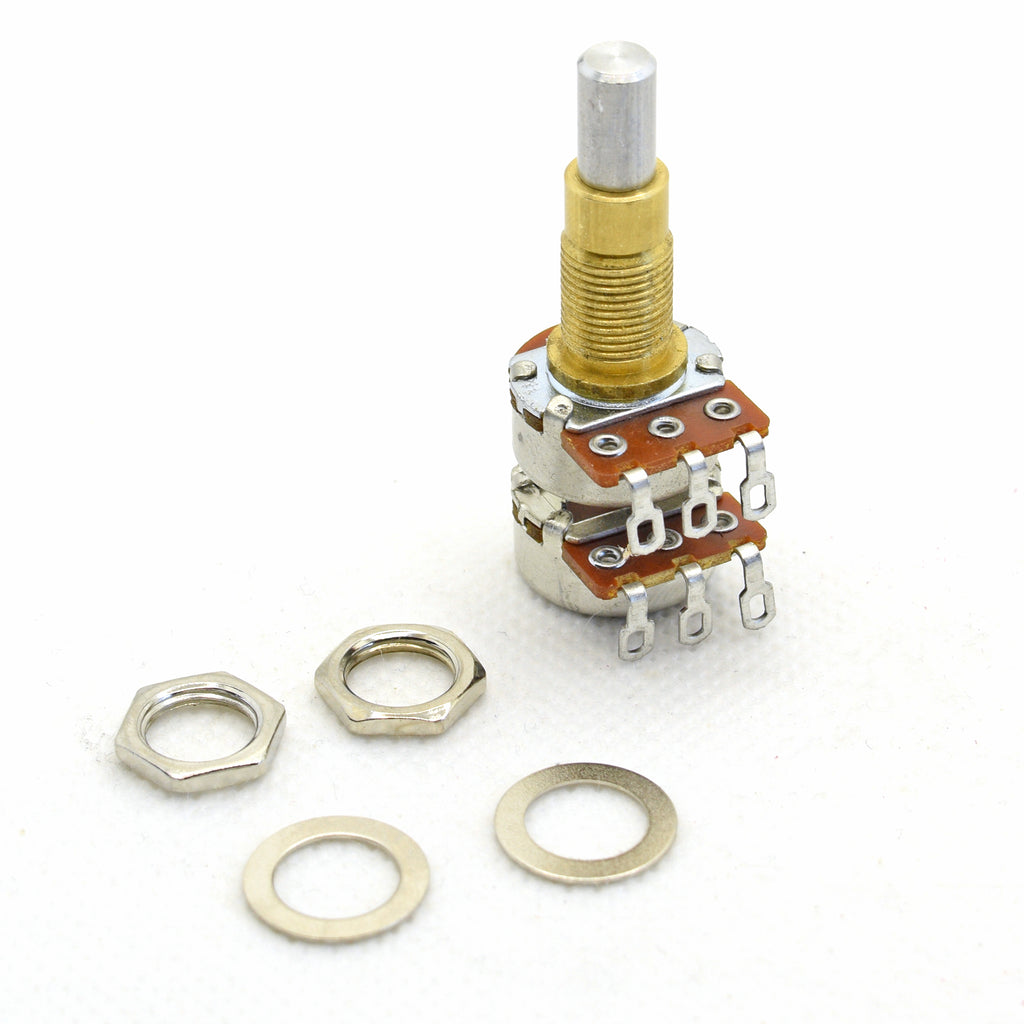

Alpha Potentiometer A500K Concentric Stacked Dime Size Pot
Alpha A500K Audio Taper Concentric Stacked Dime Size Barrel Potentiometer
- 6mm diameter top radial control shaft, 8mm diameter bottom
- Radial control shafts area combined 15.4mm long (tall) from top of threaded bushing
- Threaded bushing is 8.8mm diameter x 10.2mm long (tall)
- Dual pots are 16.5mm diameter
- Overall length is 48mm (tall)
Smooth control with NO center detent.
This is an “A” audio (logarithmic) taper pot.
Traditional mini dime-sized pots, stacked! Independent radial controls for both knobs. This thing packs a huge punch in a small space. These are great for stacking tone and volume in one control. 500k works perfect with humbuckers
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
