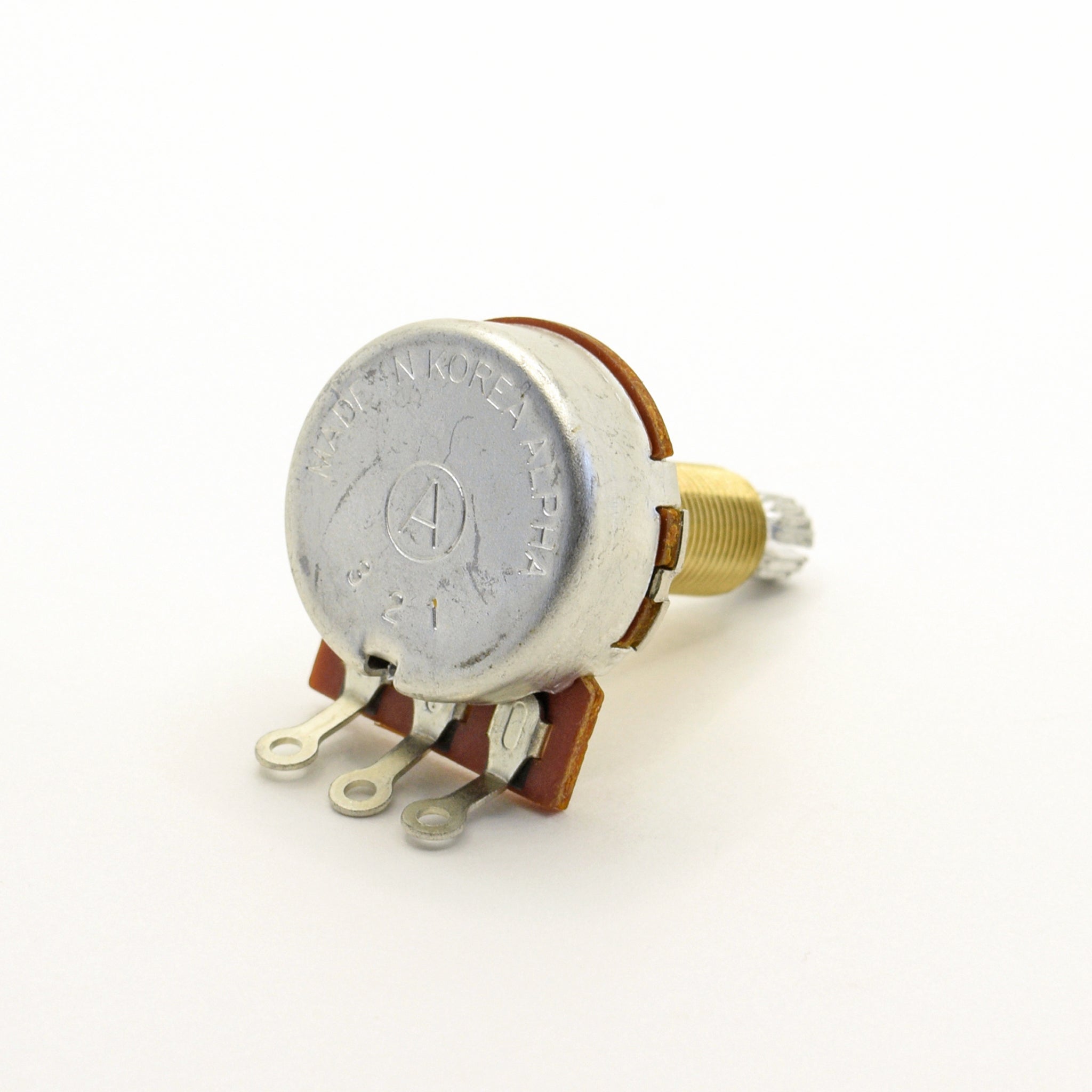

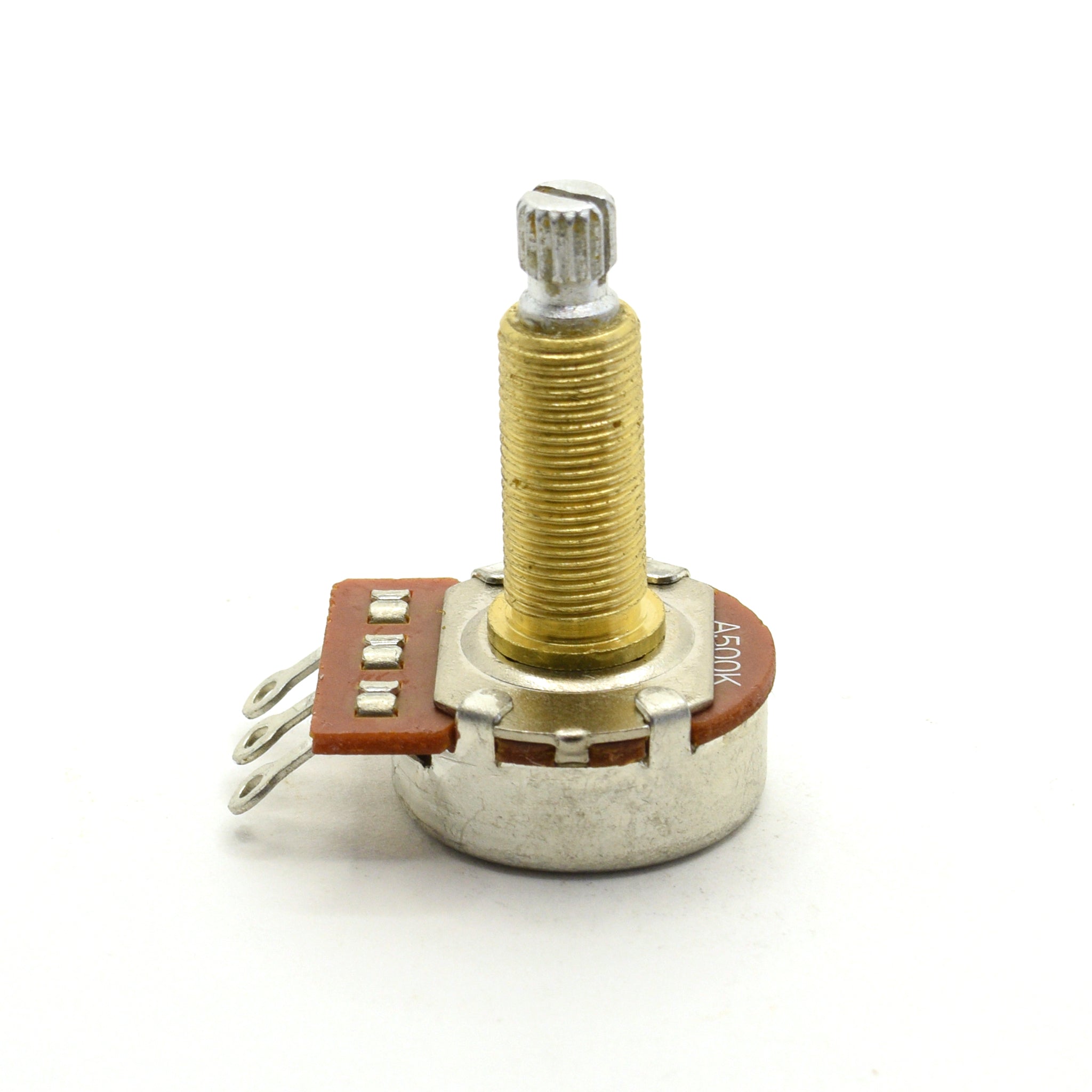

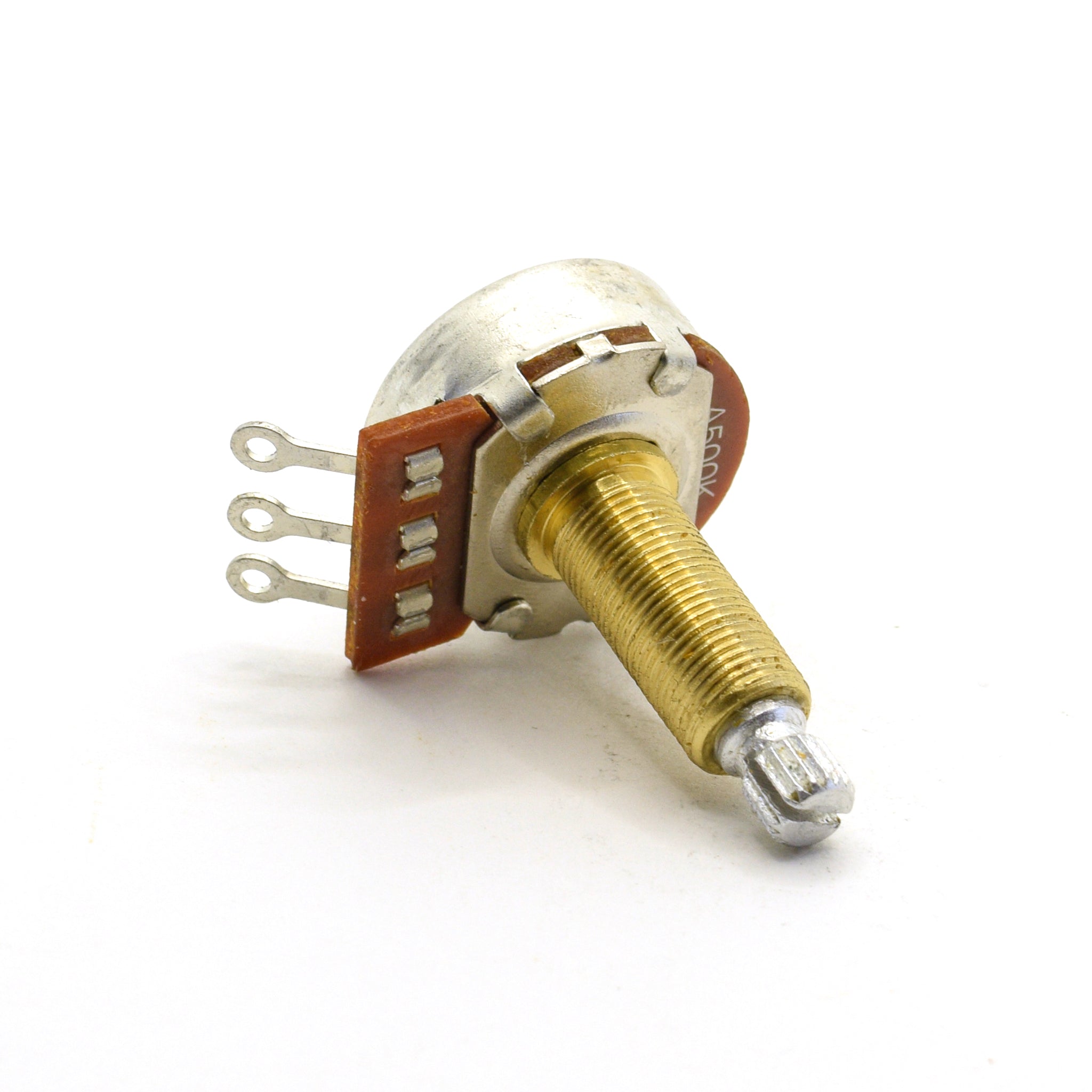

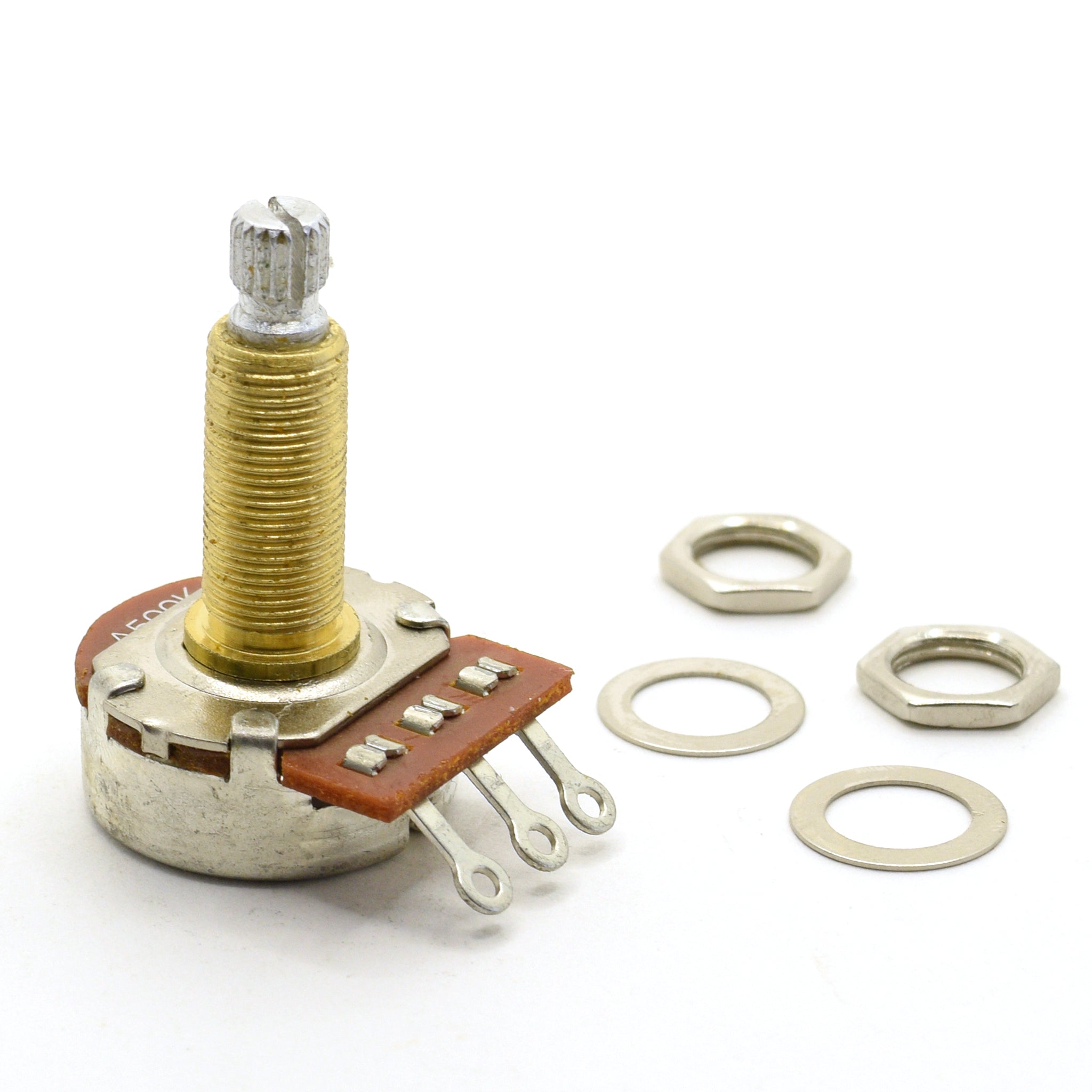

Alpha Potentiometer A500K Long Shaft Audio Taper Pot

Alpha A500K Long Shaft Standard Size Audio Potentiometer

• 6mm diameter split shaft radial control
• Radial control shaft 9.7mm long (tall) from top of threaded bushing
• Threaded bushing is 8.6mm diameter x 17.5mm long (tall)
• Pot barrel housing is 24mm diameter
• Overall length is 40.5mm (tall)

Smooth control with NO center detent.

This is an “A” audio (logarithmic) taper pot.

Great for Les Paul style guitars. 500K is commonly used with humbuckers.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here
