Alpha Potentiometer A50K Concentric Stacked Dime Size Pot

$11.00
Shipping calculated at checkout.

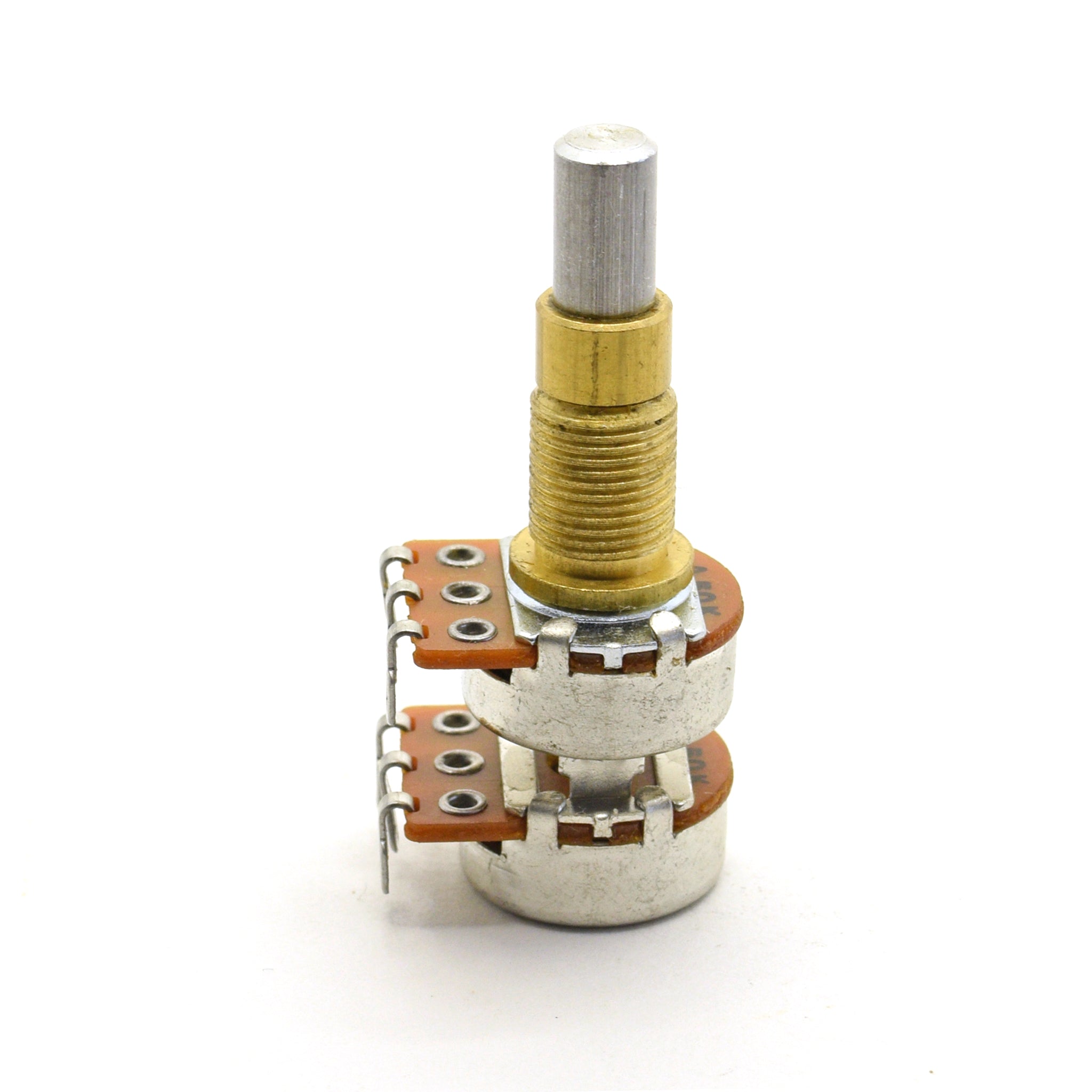

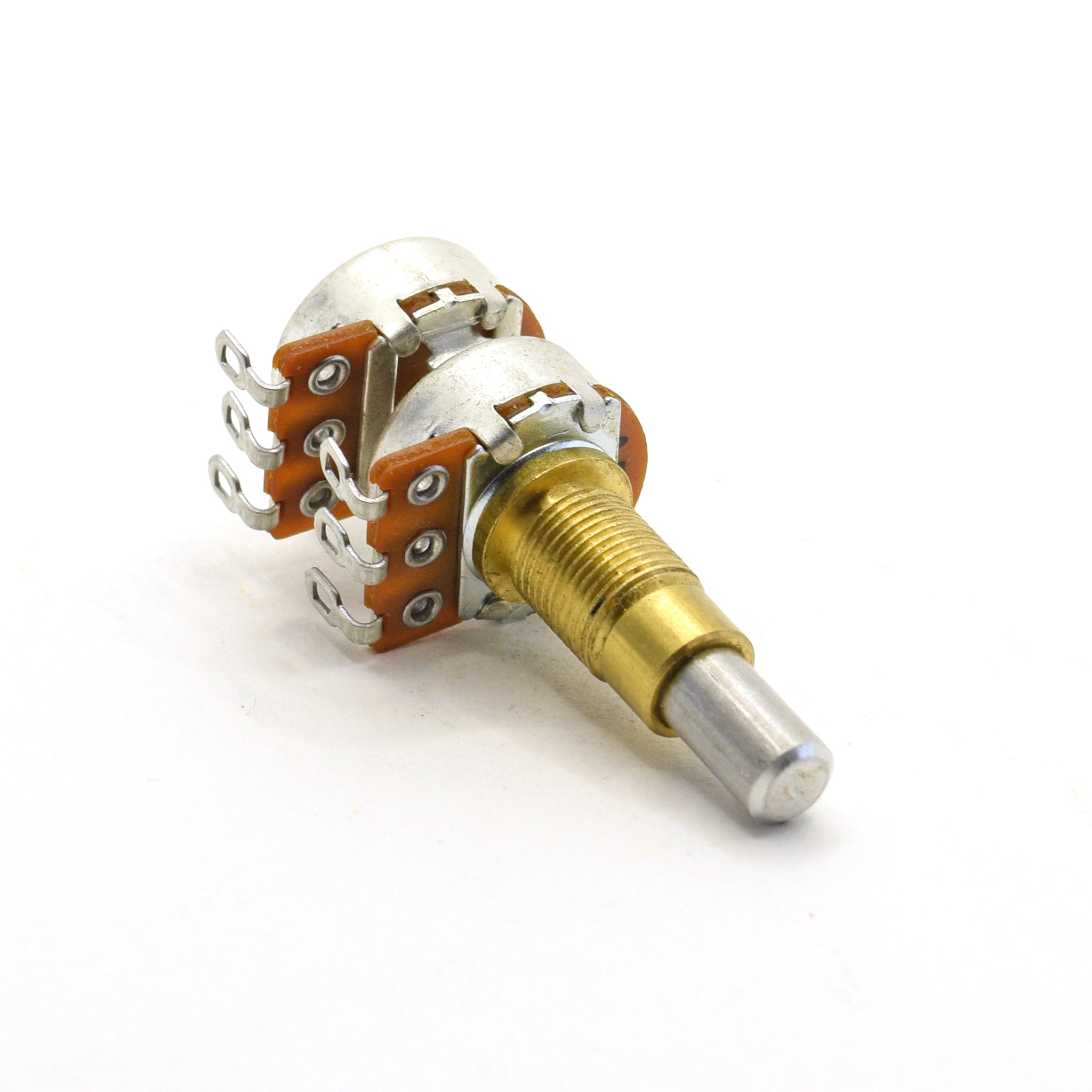

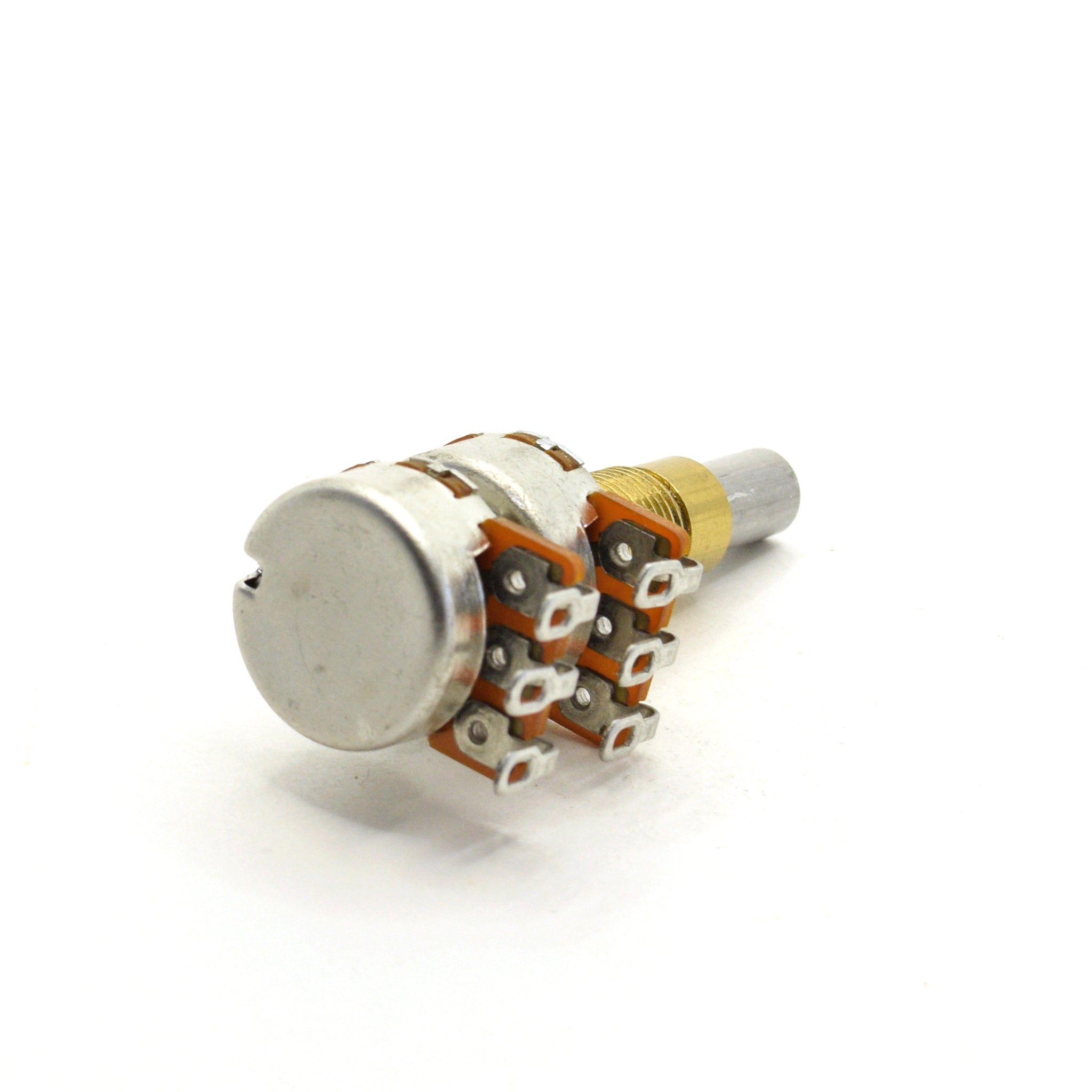

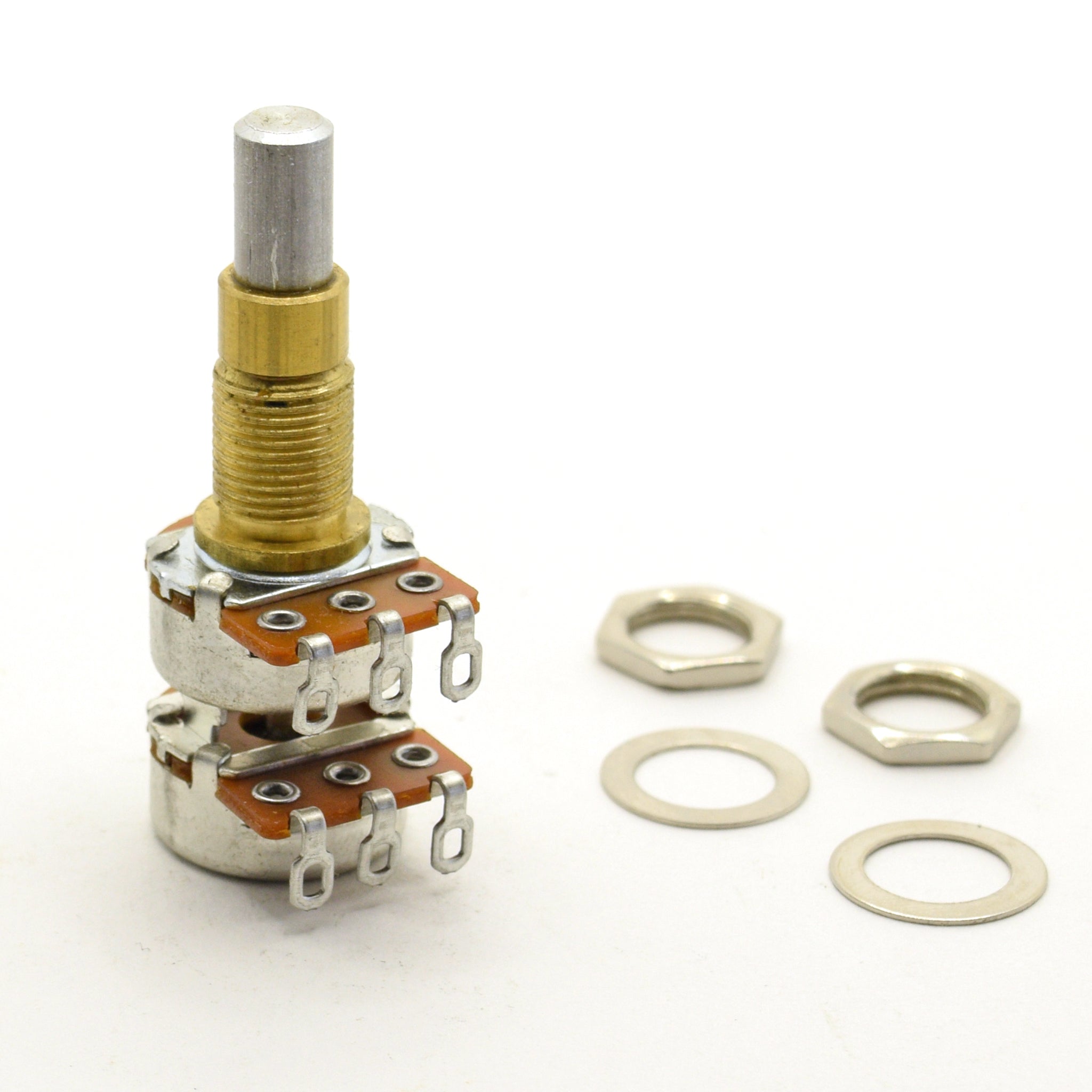

Alpha A50K Concentric Stacked Dime Size Barrel Potentiometer

  • 6mm diameter top radial control shaft, 8mm diameter bottom
  • Radial control shafts area combined 15.4mm long (tall) from top of threaded bushing
  • Threaded bushing is 8.8mm diameter x 10.2mm long (tall)
  • Dual pots are 16.5mm diameter
  • Overall length is 48mm (tall)

Smooth control with NO center detent.

This is an “A” audio (logarithmic) taper pot.

Traditional mini dime-sized pots, stacked! Independent radial controls for both knobs. This thing packs a huge punch in a small space. 50k works perfect for amps, pedals, active on-board electronics, etc

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
