Alpha Potentiometer B500K Concentric Stacked Dime Size Pot

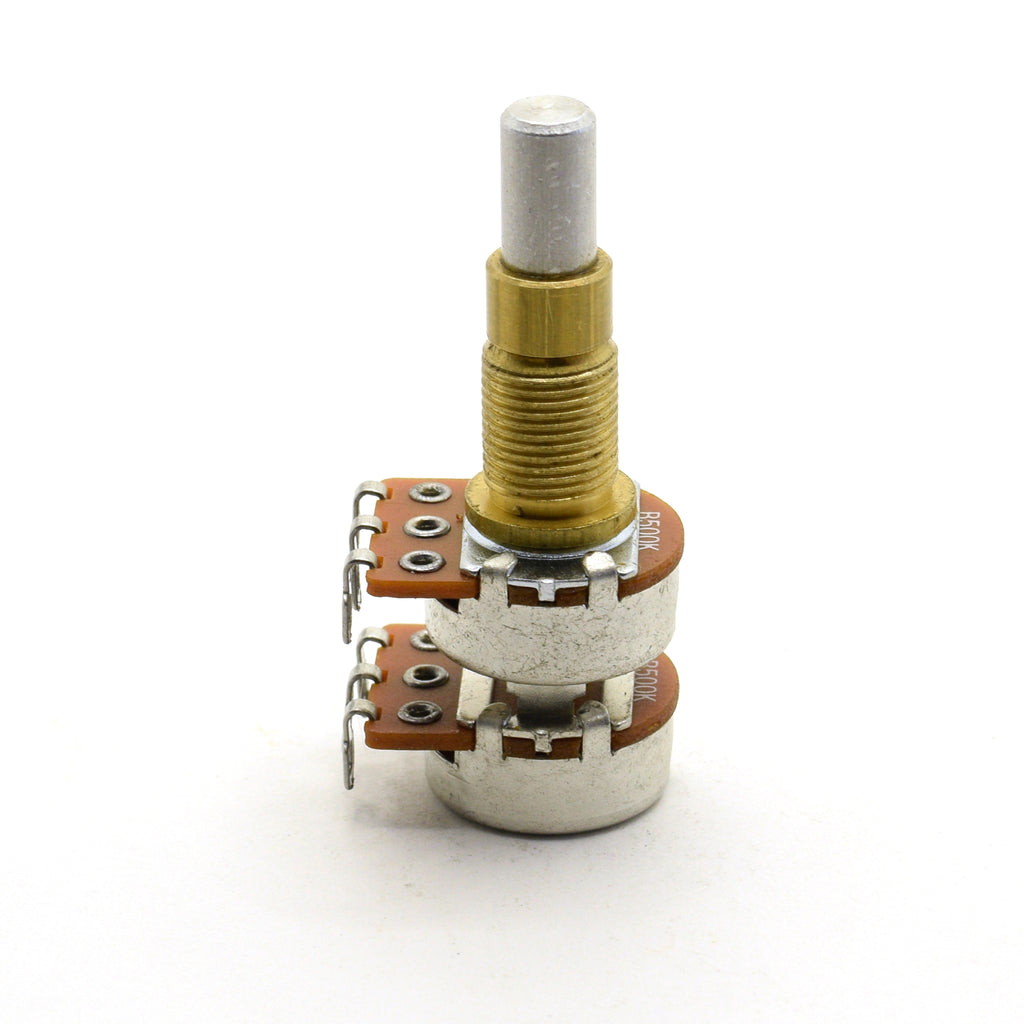

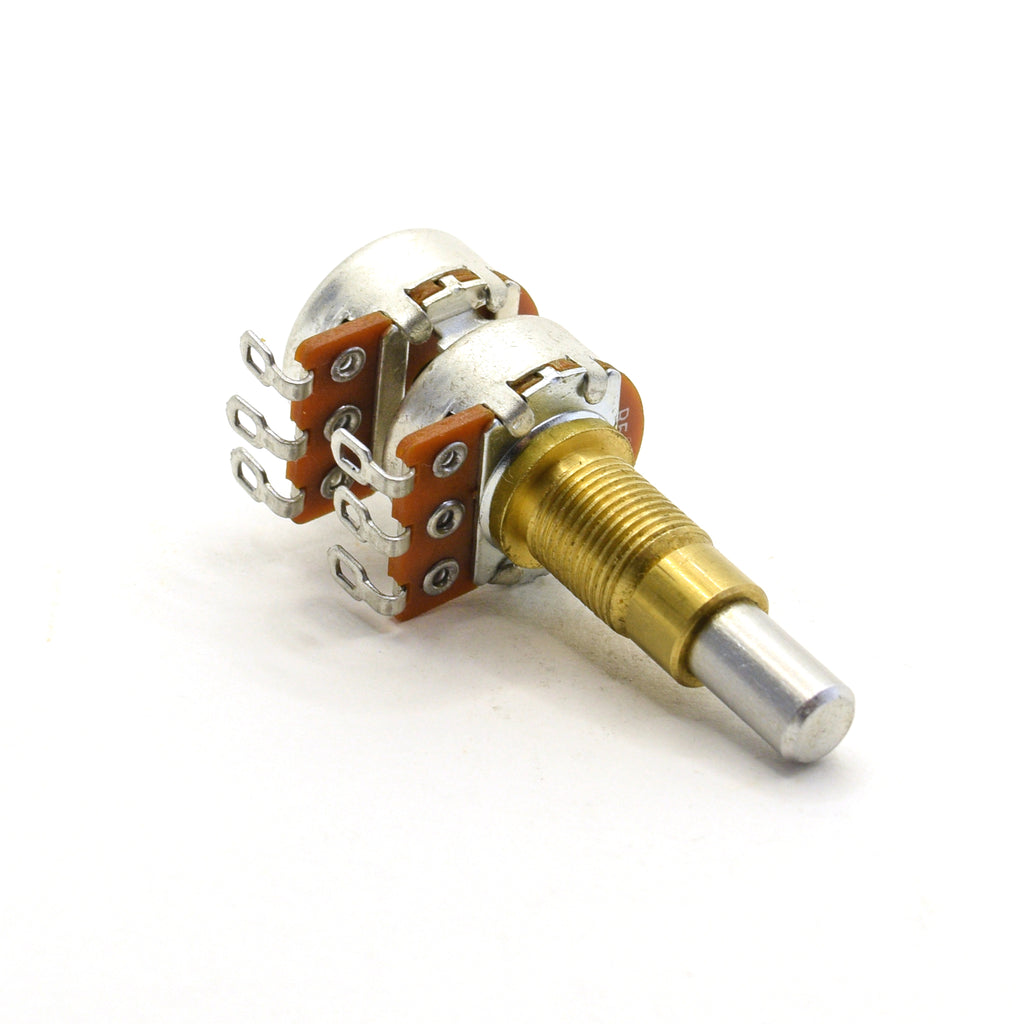

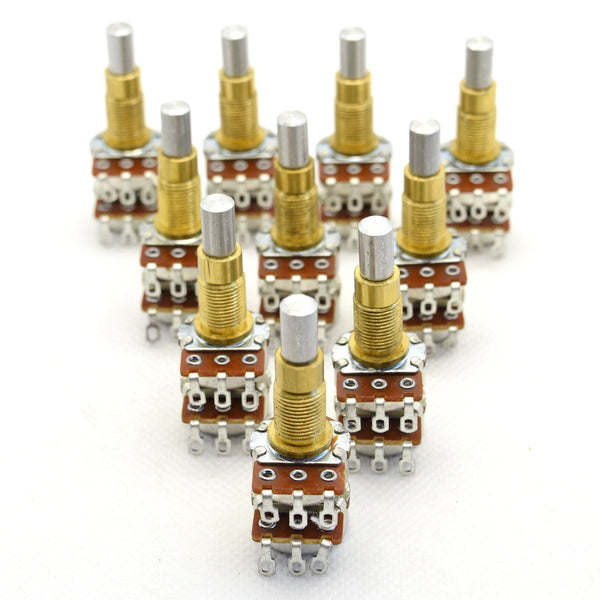

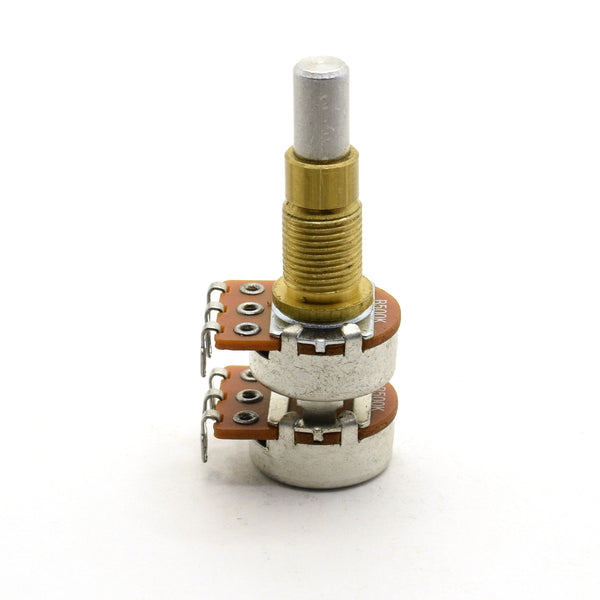

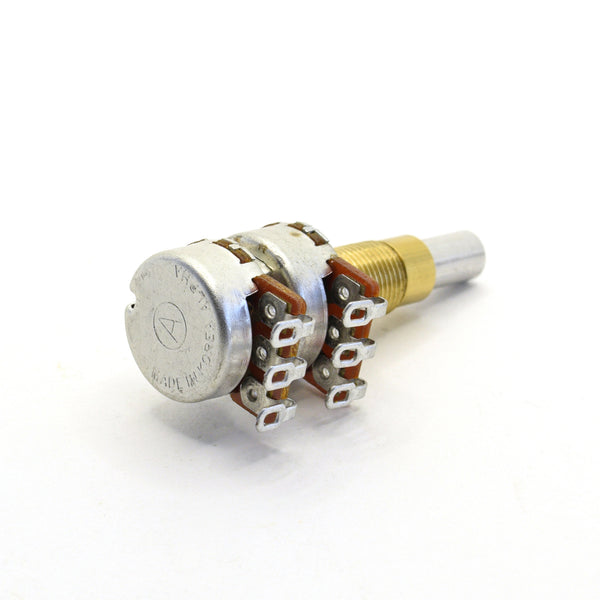

Alpha B500K Concentric Stacked Dime Size Barrel Potentiometer

• 6mm diameter top radial control shaft, 8mm diameter bottom
• Radial control shafts area combined 15.4mm long (tall) from top of threaded bushing
• Threaded bushing is 8.8mm diameter x 10.2mm long (tall)
• Dual pots are 16.5mm diameter
• Overall length is 48mm (tall)

Smooth control with NO center detent.

This is a “B” linear taper pot.

Traditional mini dime-sized pots, stacked! Independent radial controls for both knobs. This thing packs a huge punch in a small space. These are great for stacking tone and volume in one control. 500k works perfect with humbuckers

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
