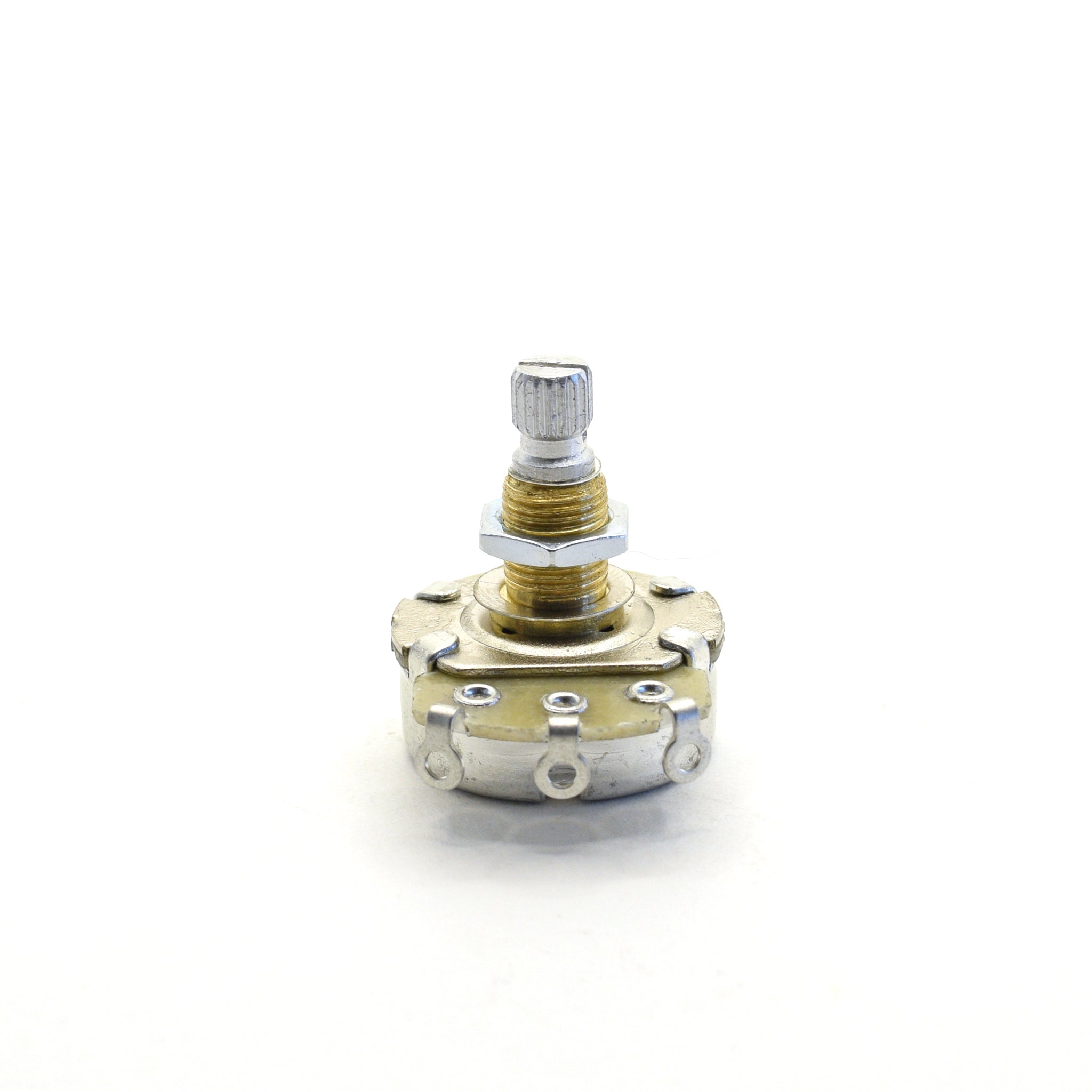

Alpha Potentiometer Brass Bushing A500K Audio Pot
Alpha Brass Bushing A500K Audio Potentiometer
- 6mm diameter split shaft radial control
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 9.5mm long (tall)
- Pot barrel housing is 24mm diameter
- Overall length is 29.3mm (tall)
Smooth control with NO center detent.
This is an “A” audio (logarithmic) taper pot.
500K matches great with humbucker pickups. Why choose a brass bushing pot? Brass is a naturally self-lubricating metal, ensuring smooth rotating action over the pot's lifetime.
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
