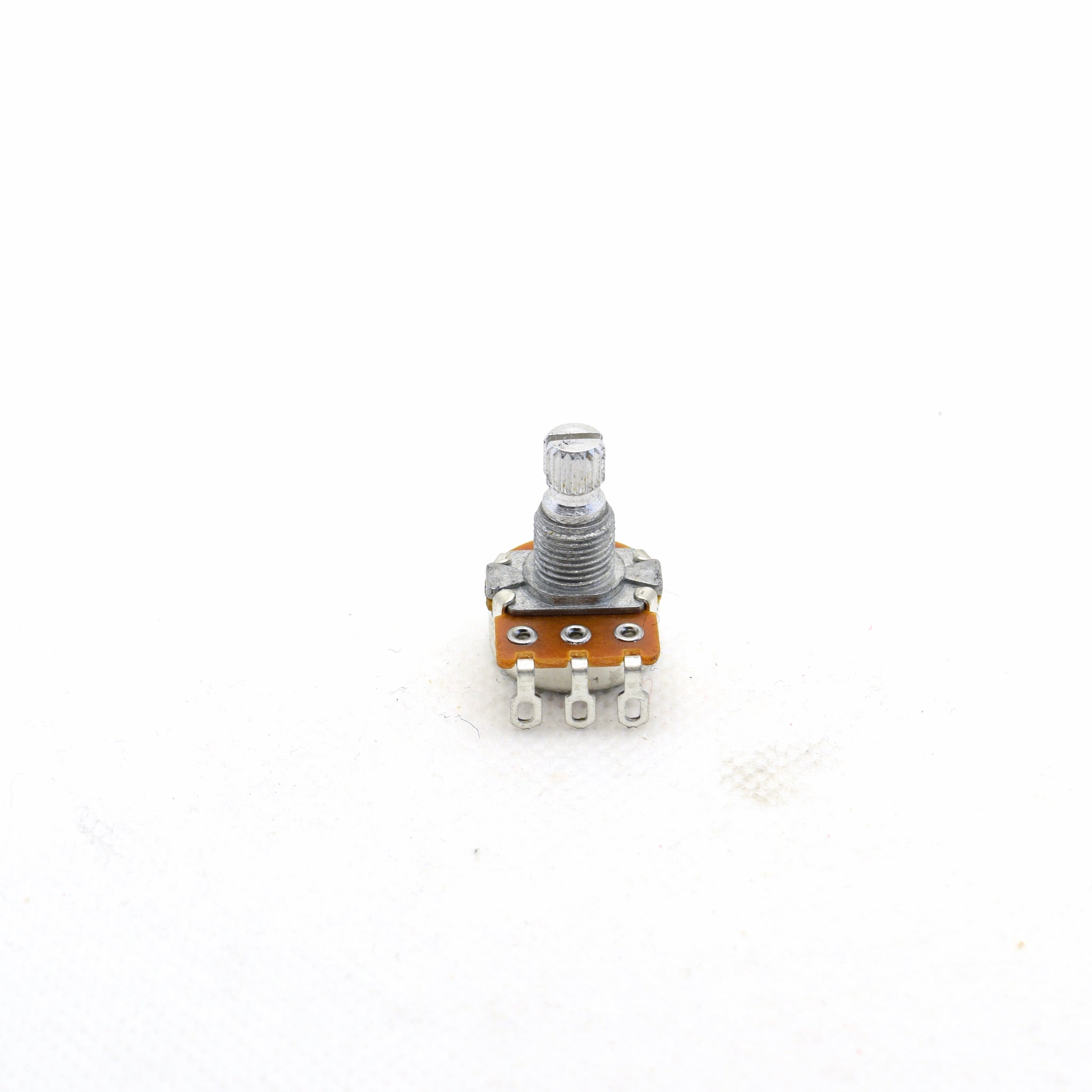

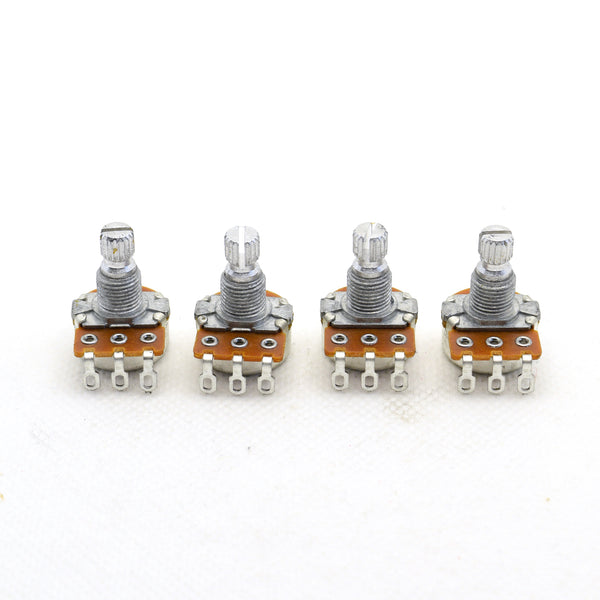

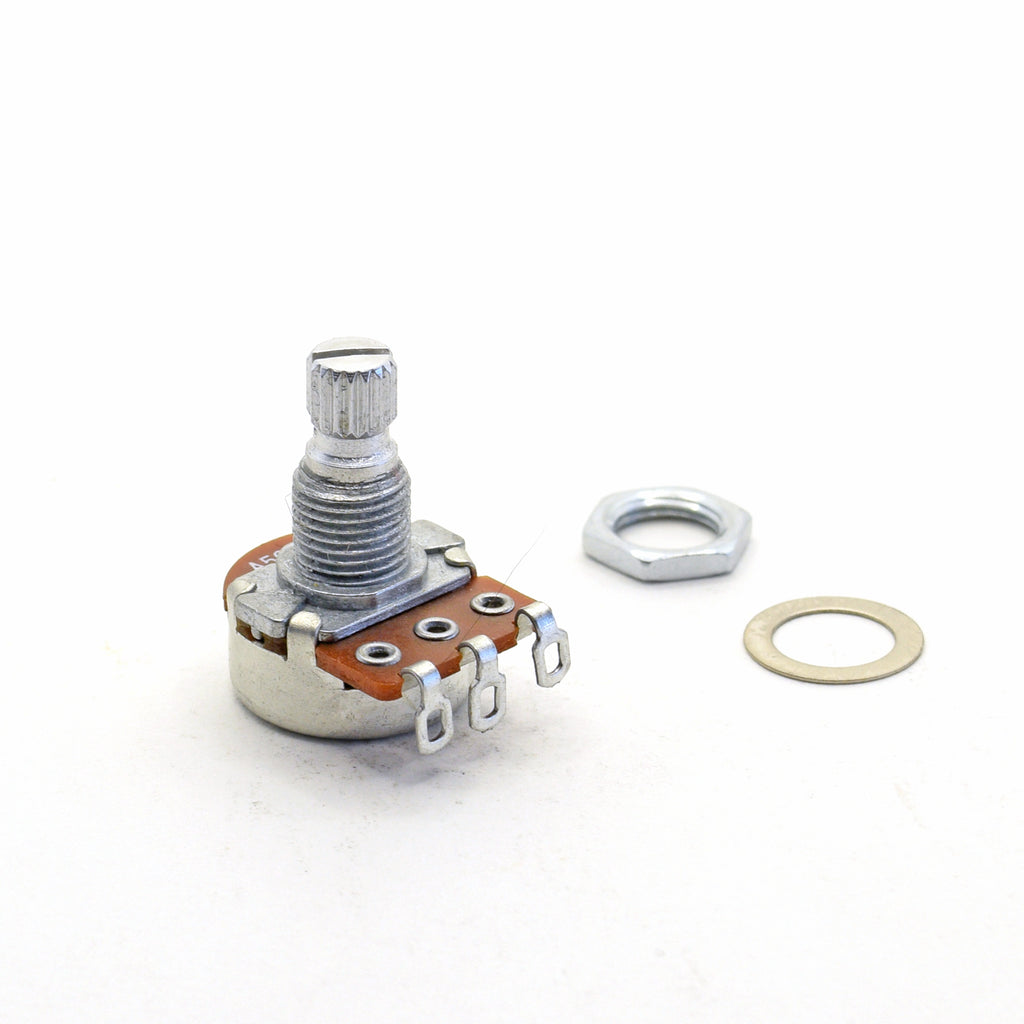

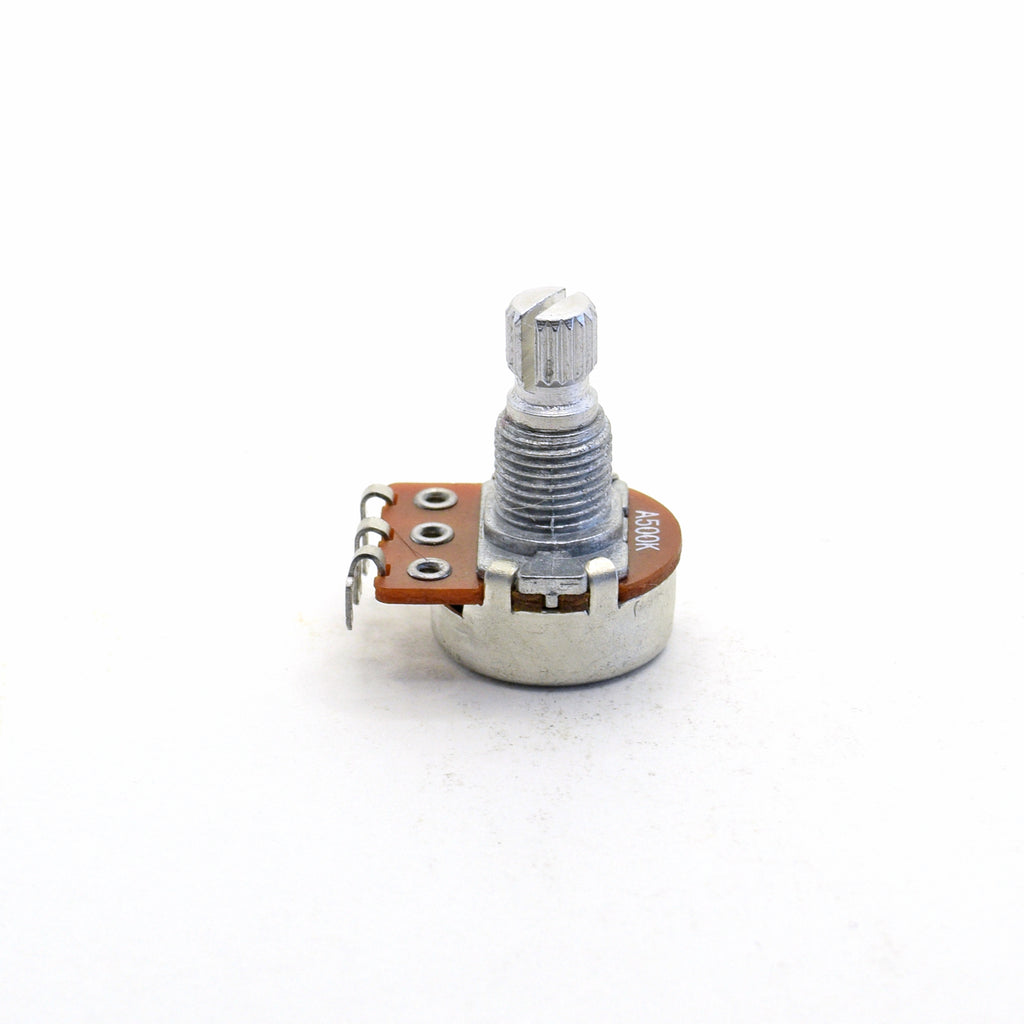

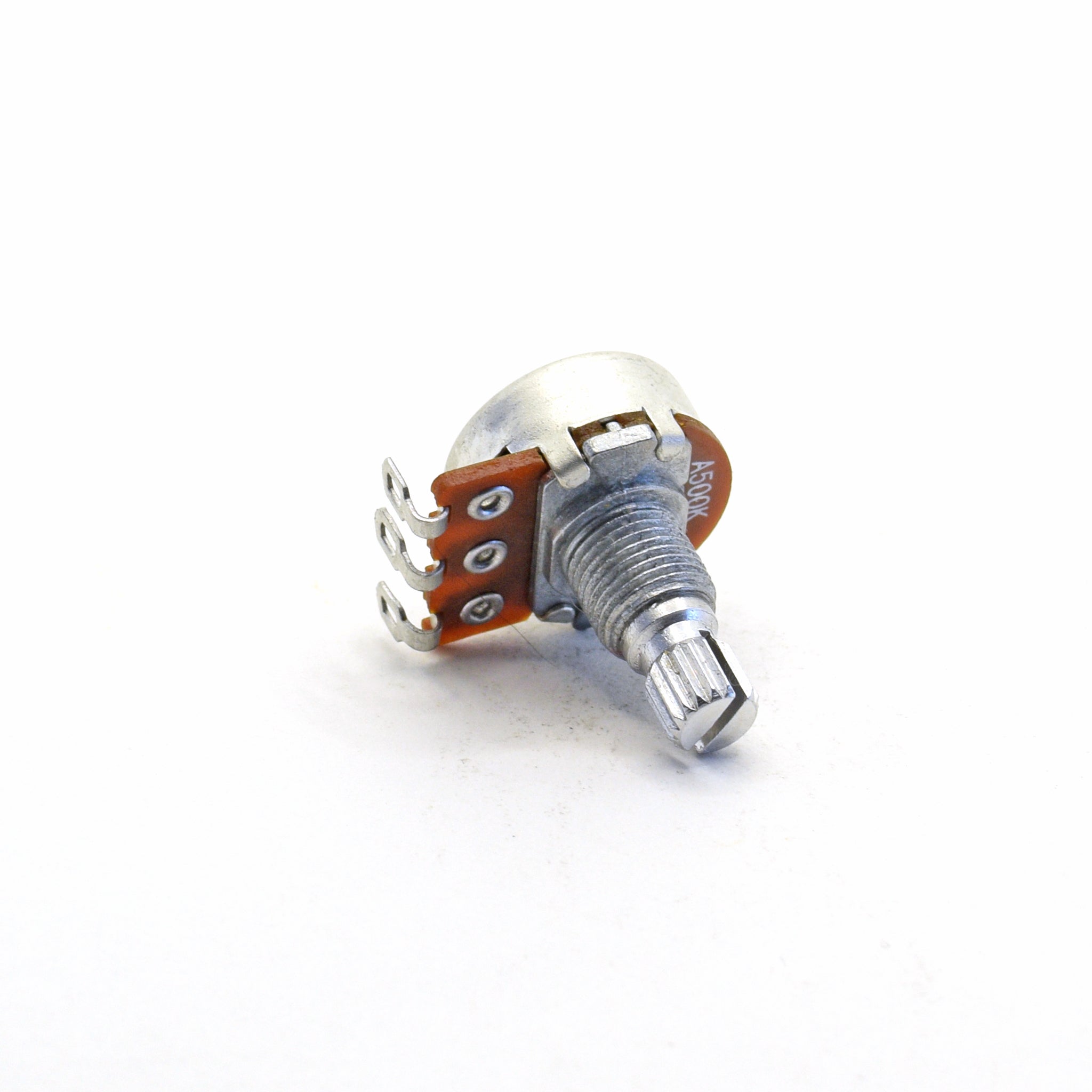

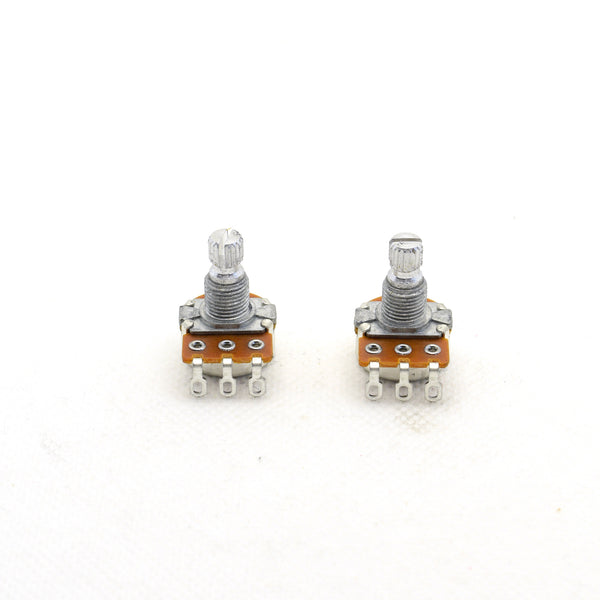

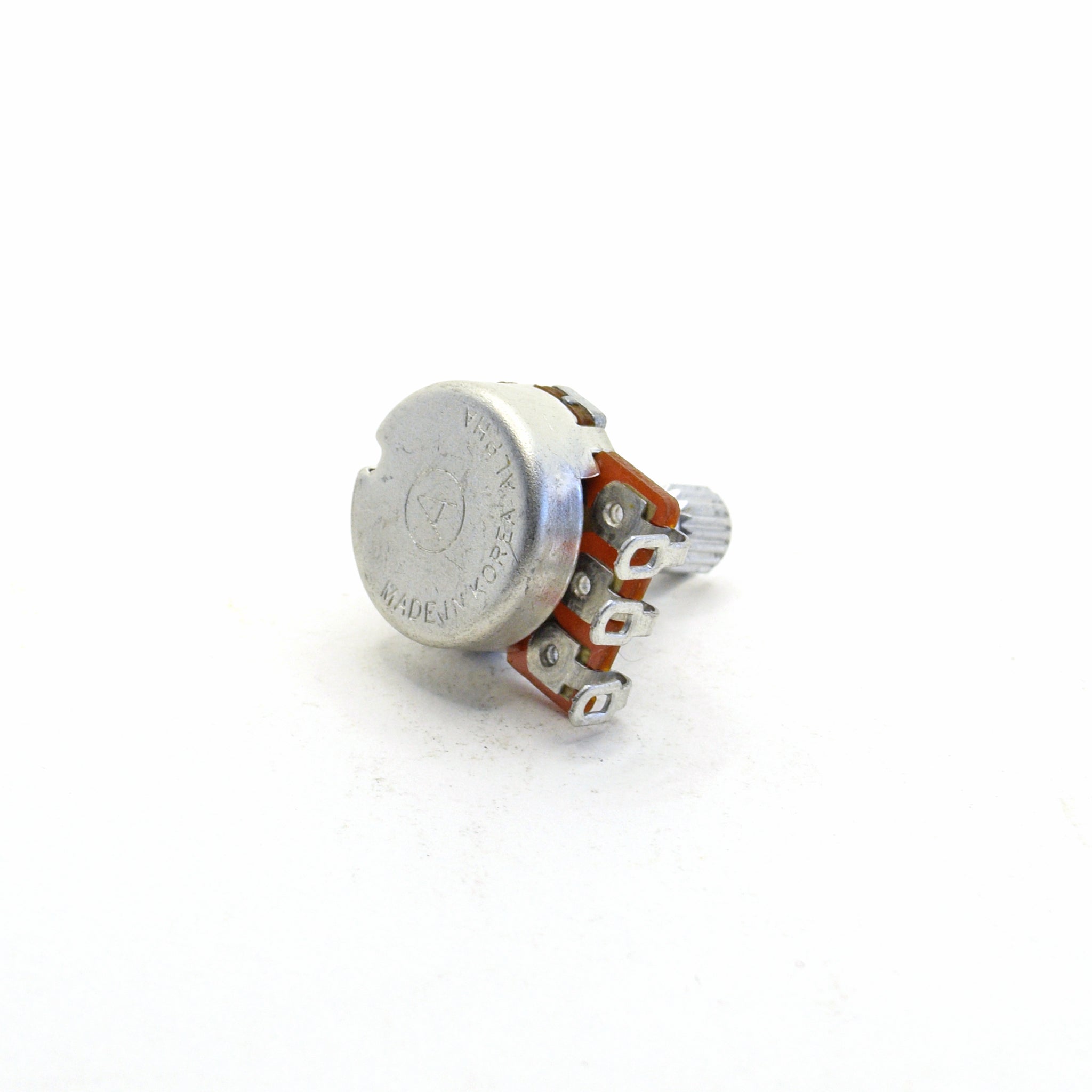

Alpha Potentiometer A500K Audio Taper Mini Pot
Alpha Mini A500K Audio Taper Volume Potentiometer
- 6mm diameter split shaft radial control 18 spline
- Radial control shaft 8mm long (tall) from top of threaded bushing
- Threaded bushing is 7.6mm diameter x 8mm long (tall)
- Pot barrel housing is 16.5mm diameter
- Overall length is 24.5mm (tall)
Smooth control with NO center detent.
This is an “A” audio (logarithmic) taper pot.
The pot barrel diameter is a little smaller than a dime, making it great for tight control cavities or archtop guitar pickguard mount. 500K is commonly best paired with a humbucker.
All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.
Check out our free downloadable potentiometer poster here
High quality, made in Korea
