Alpha Potentiometer B25K Linear Taper Mini Pot

Regular price $7.80 $0.00
Shipping calculated at checkout.

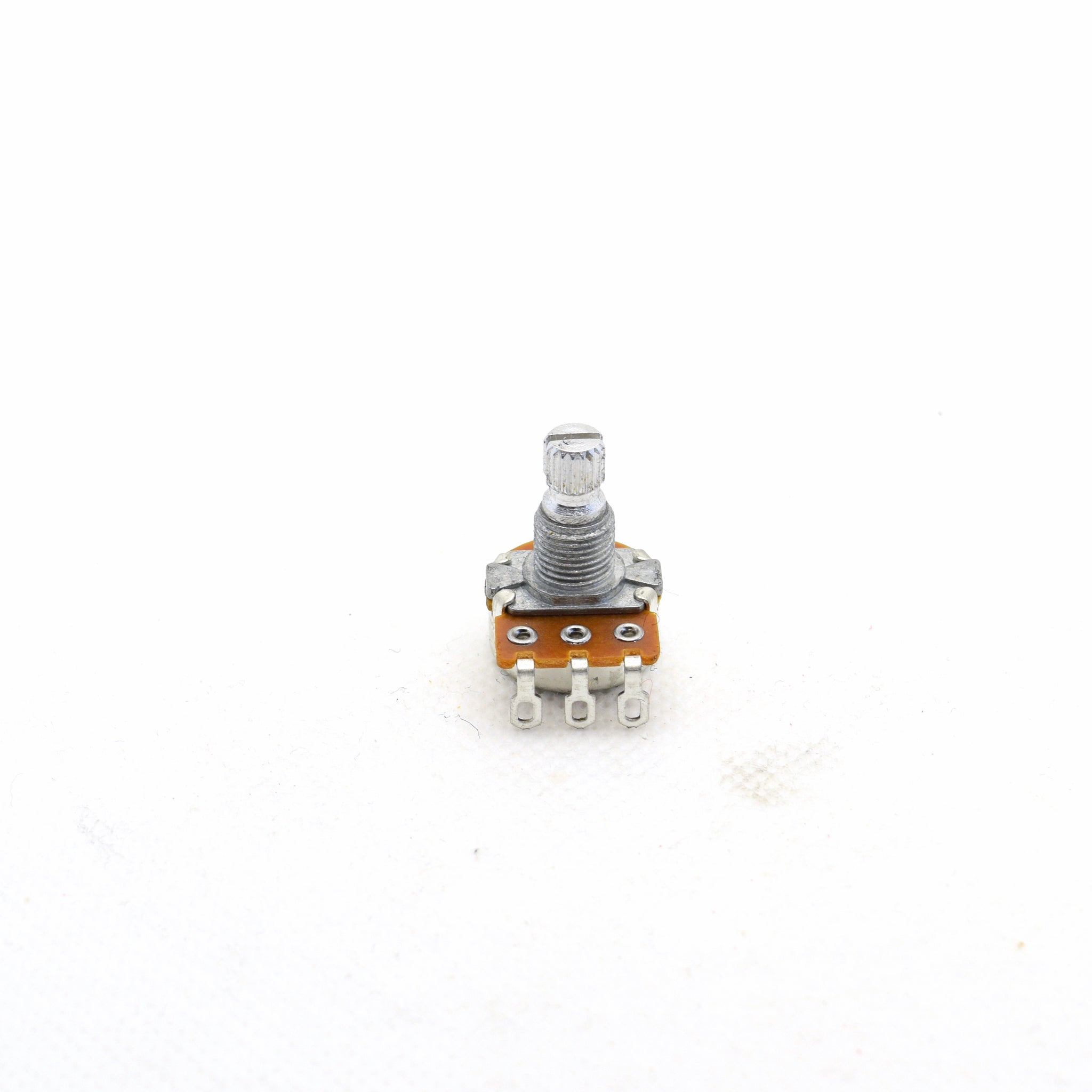

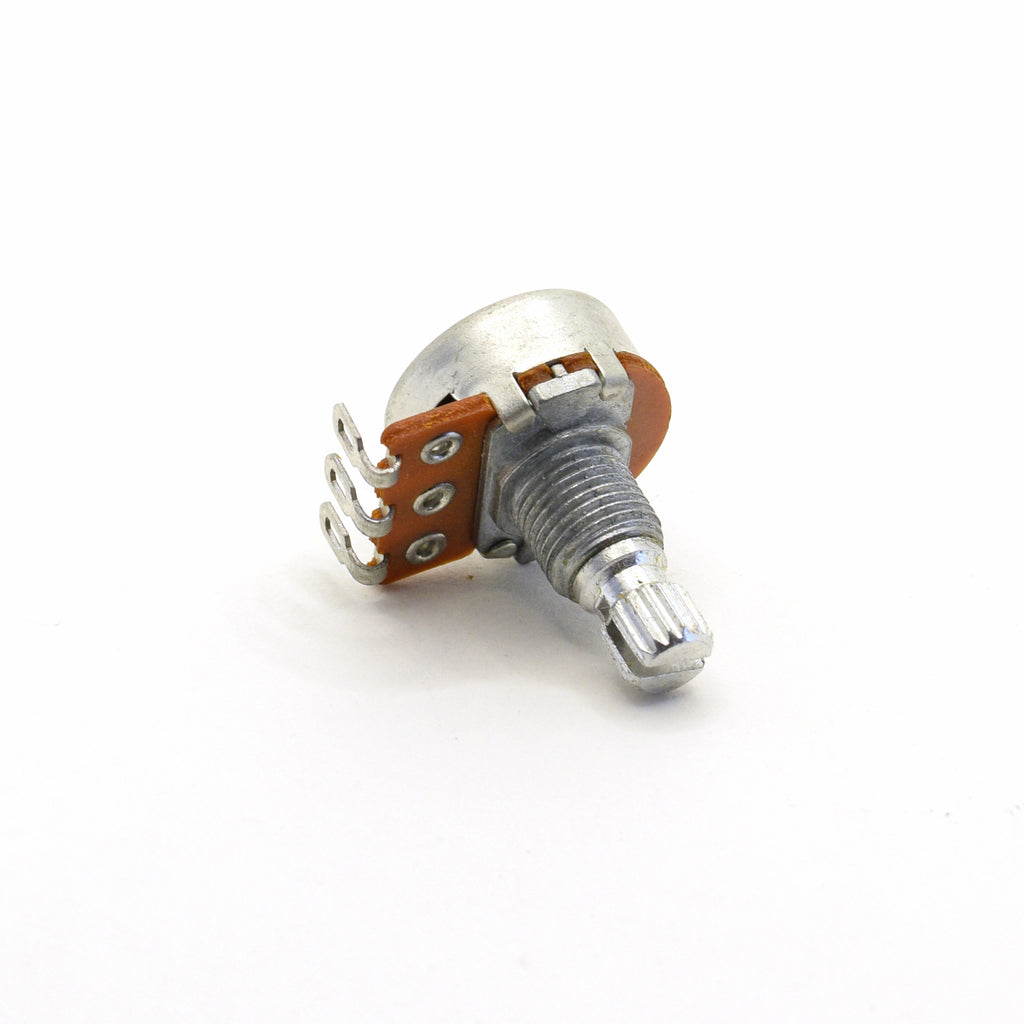

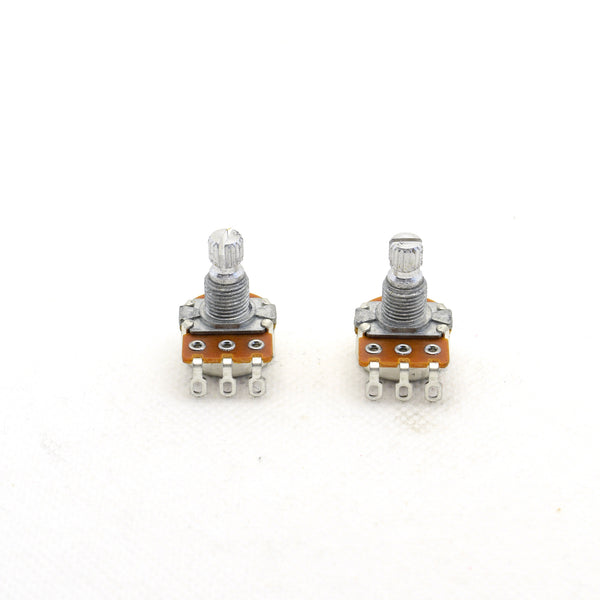

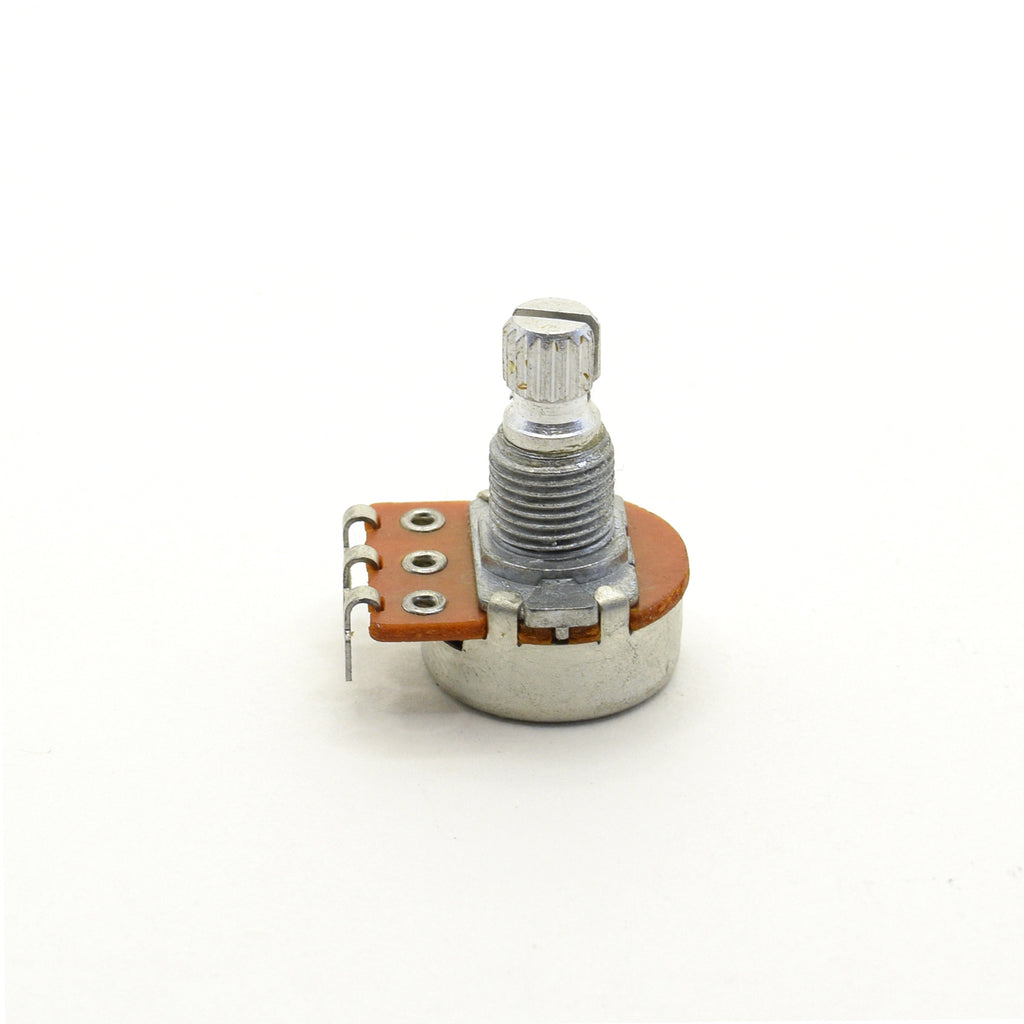

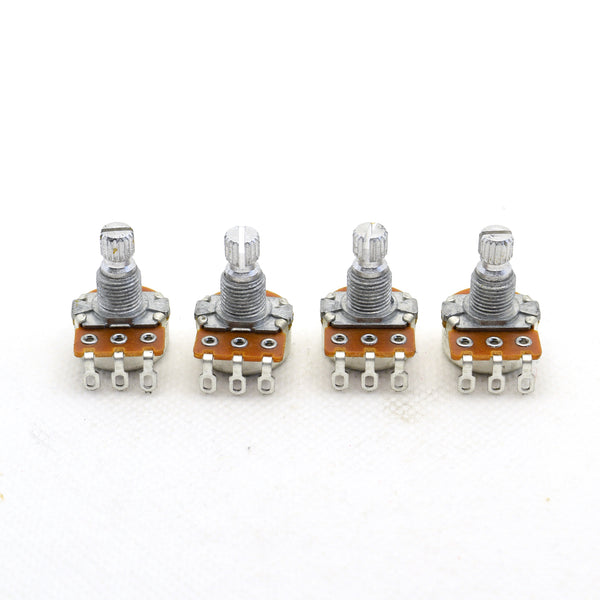

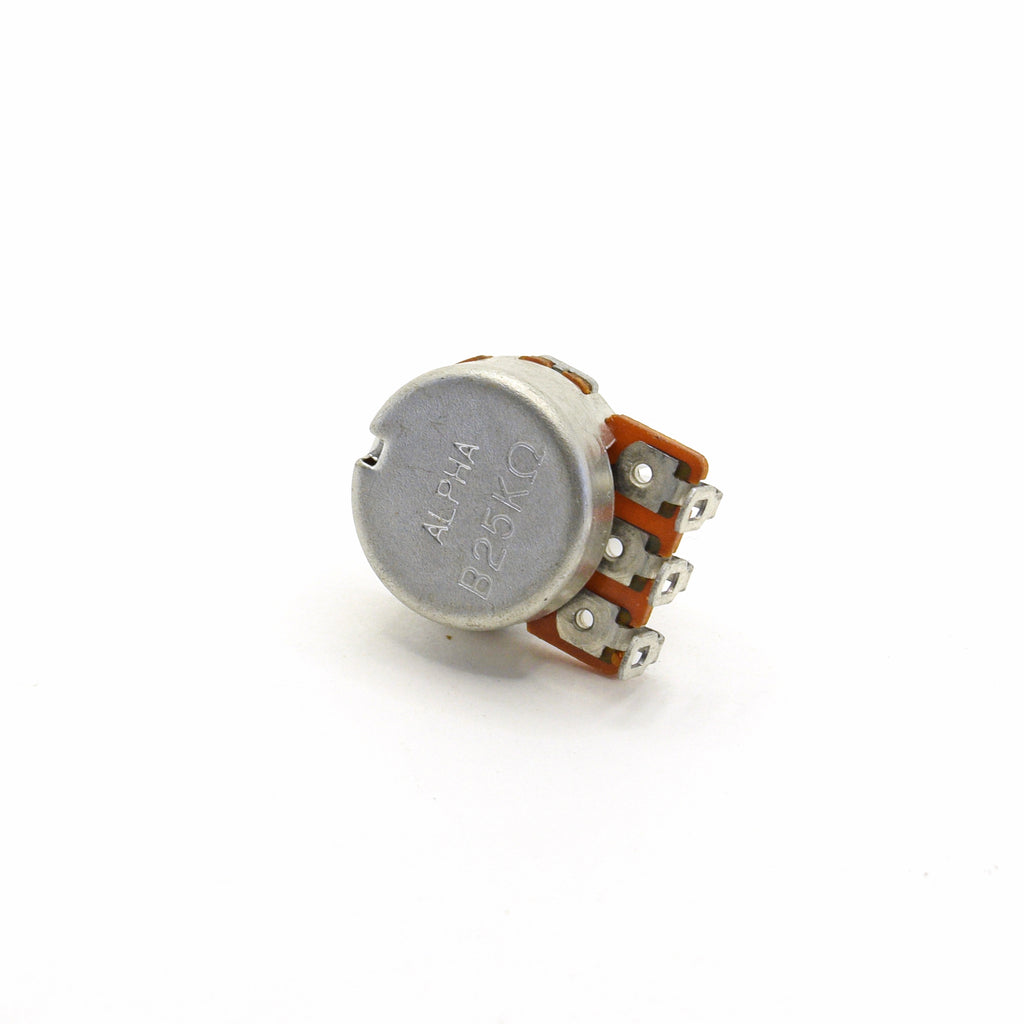

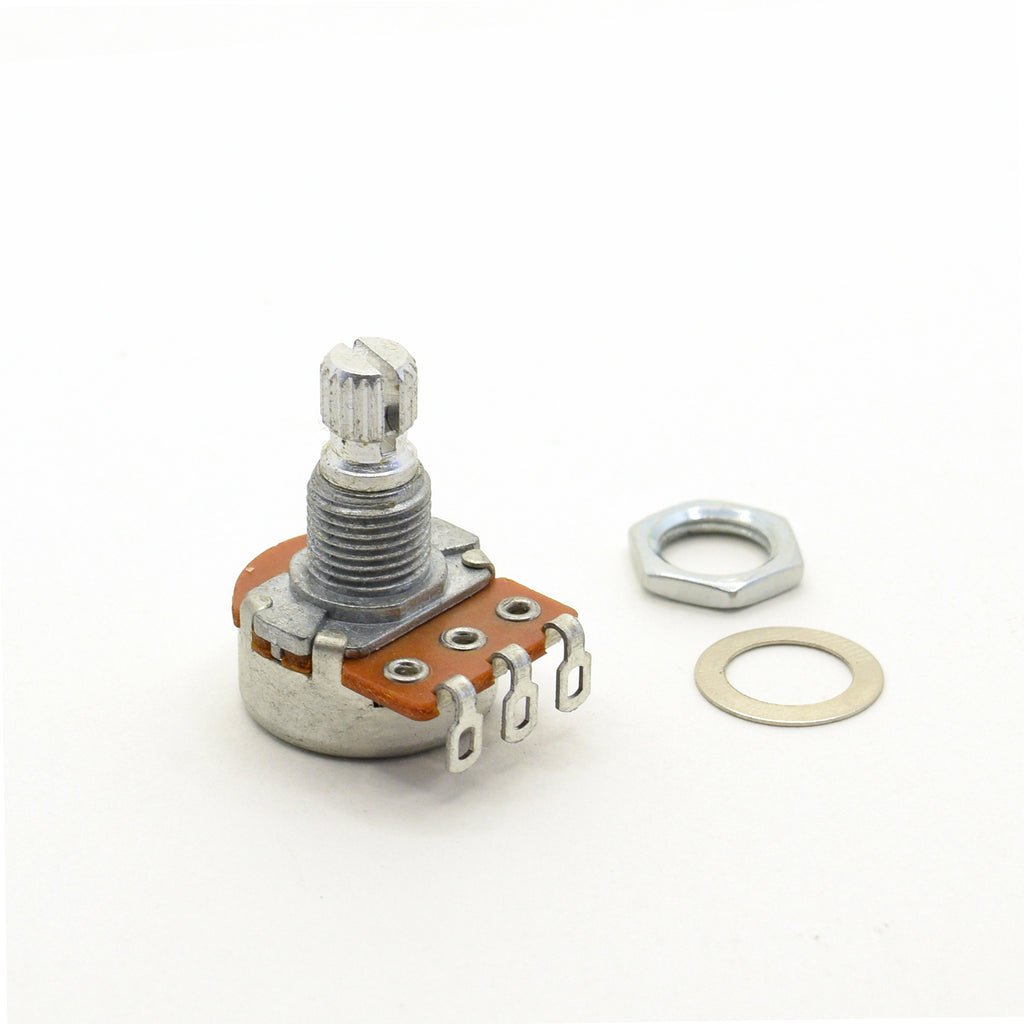

Alpha Mini B25K Linear Tone Potentiometer

  • 6mm diameter split shaft radial control 18 spline
  • Radial control shaft 8mm long (tall) from top of threaded bushing
  • Threaded bushing is 7.6mm diameter x 8mm long (tall)
  • Pot barrel housing is 16.5mm diameter
  • Overall length is 24.5mm (tall)

Smooth control with NO center detent.

This is a “B” linear taper pot.


The pot barrel diameter is a little smaller than a dime, making it great for tight control cavities or archtop guitar pickguard mount. Use these with active pickups or battery powered preamps for finer tuning of tone.

All TGNT Alpha pots are hand-tested and are within ±15% resistance tolerance.

Check out our free downloadable potentiometer poster here

High quality, made in Korea
