Cinnamon Drop High-Pass Treble Bleed Circuit

$8.75
Shipping calculated at checkout.

This might be the most simple, easy, and affordable way to improve your guitar tone!

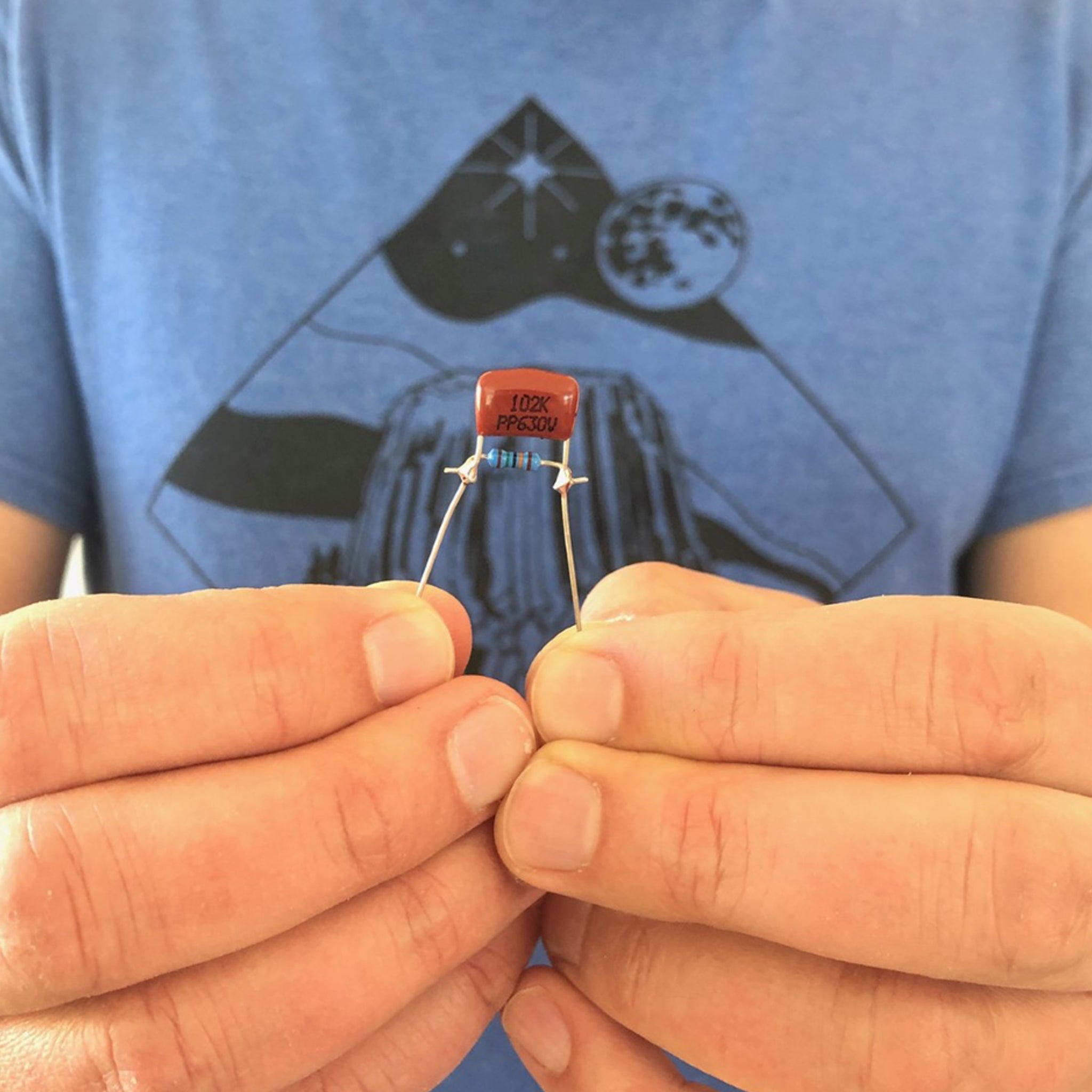

Simply solder the capacitor and resistor together in parallel, and then solder the circuit to the in and out lugs on your volume pot. As you turn down your volume control, you'll get much more treble response and retain much more clarity and volume. Check out the attached video for a how-to and demo.

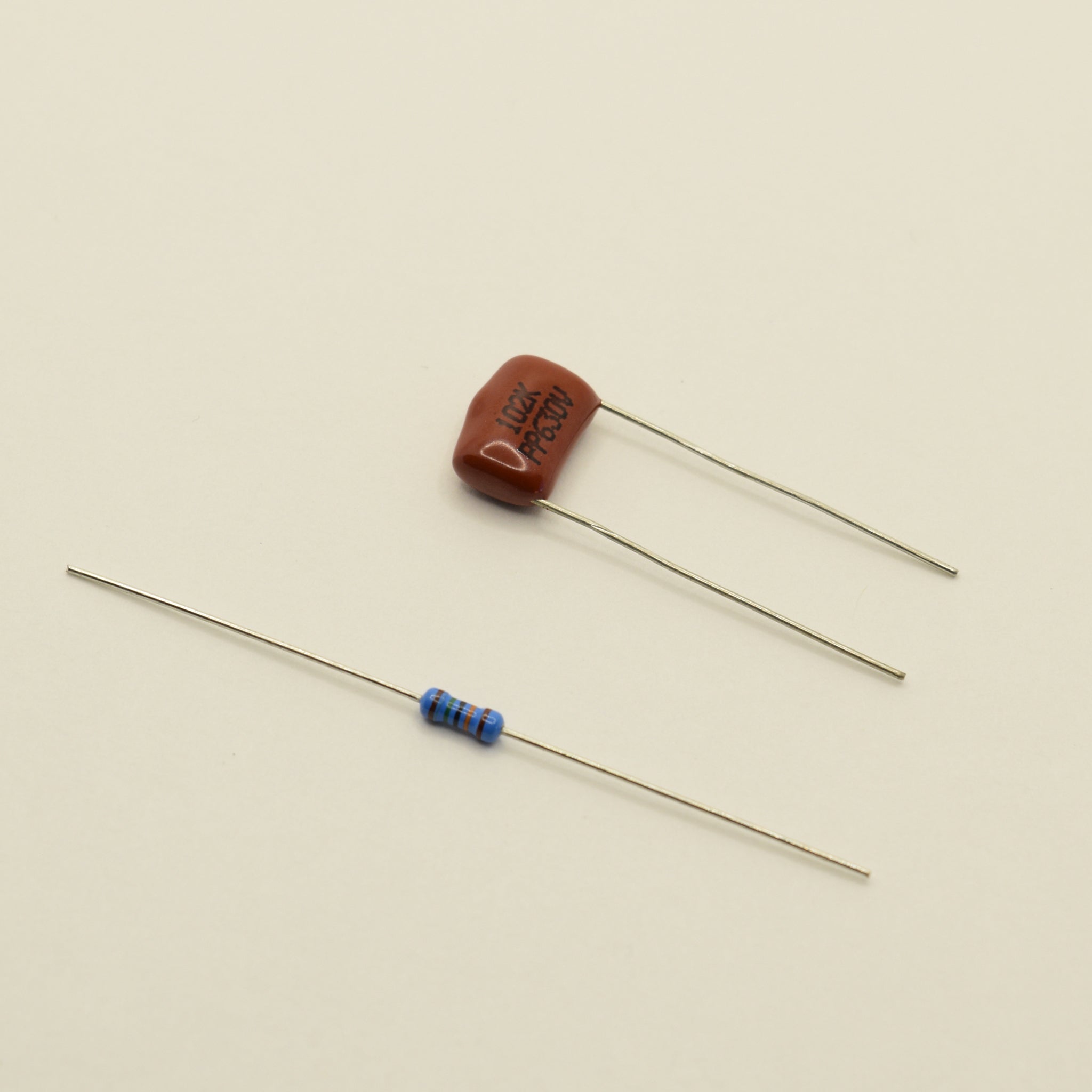

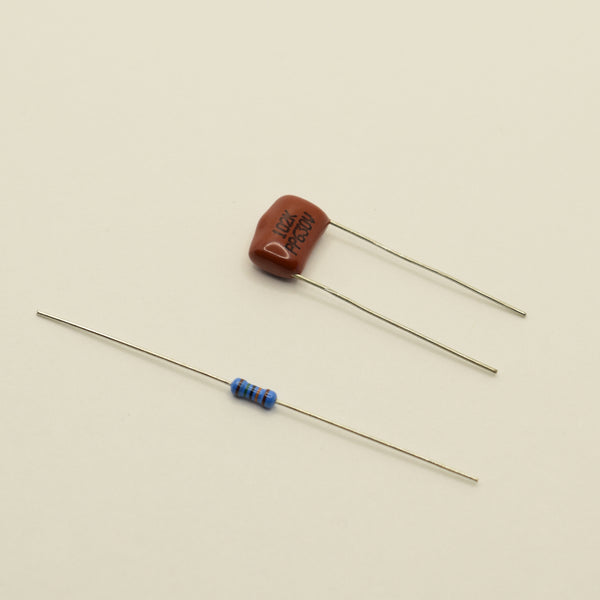

This kit contains:

  • 1 Cinnamon Drop .001uF Polypropylene Film Capacitor
  • 1 Blueberry Metal Film 150k 1/4 Watt, 1% Tolerance Resistor

Capacitor measurements:

.001uF: Height 7mm/.27", Length 11.7mm/.46", Width 4.2mm/.16"

Resistor measurements:

6.2mm/.24" long x 2.1mm/.08" diameter



Collections: Capacitors Vendors: Thompson Guitar & Thrift SKU: CAPTB
