T-Bucket Single Coil Pickups Wiring Diagram

$0.00
Shipping calculated at checkout.

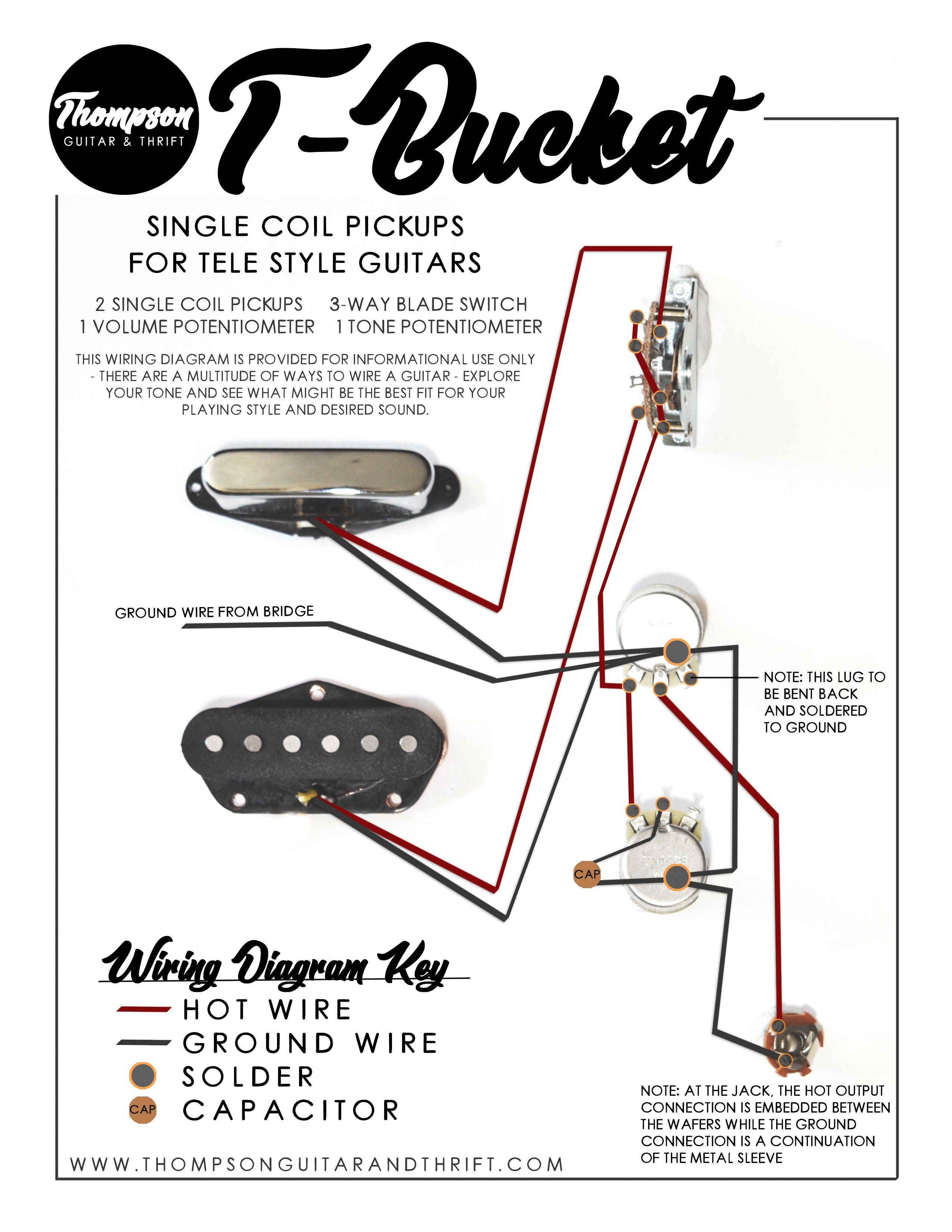

Available for free digital download is TG&T's wiring diagram featuring our T-Bucket single coil pickups.  This illustrates a standard Tele style guitar with the following layout:

  • 2 single coil pickups
  • 3-way blade switch
  • 1 volume potentiometer
  • 1 tone potentiometer

Note: In order to access this digital download you need to add this item to your cart and checkout but no worries - it is 100% free.
