T90 Soapbar Single Coil Pickup Wiring Diagram
Thompson Guitar & Thrift

T90 Soapbar Single Coil Pickup Wiring Diagram

Regular price $0.00 $0.00
Shipping calculated at checkout.

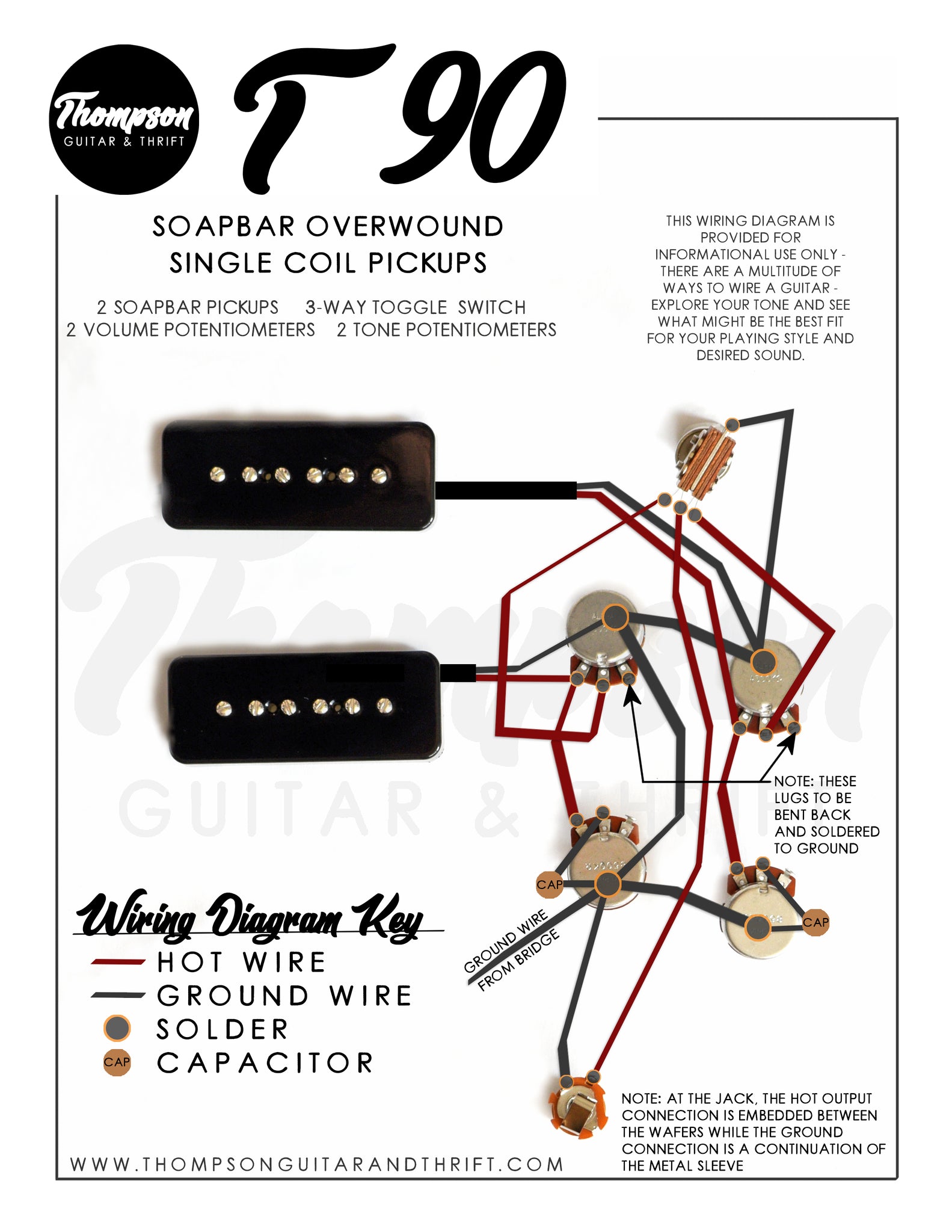

Available for free digital download is TG&T's wiring diagram featuring our T90 Soapbar Single Coil Alnico V Pickup.  This illustrates wiring an electric guitar with two of TG&T T90 pickups.  The layout features:

  • Two overwound soapbar single coil pickups
  • 3-way toggle switch
  • 2 volume potentiometers
  • 2 tone potentiometers

Note: In order to access this digital download you need to add this item to your cart and checkout but no worries - it is 100% free.
